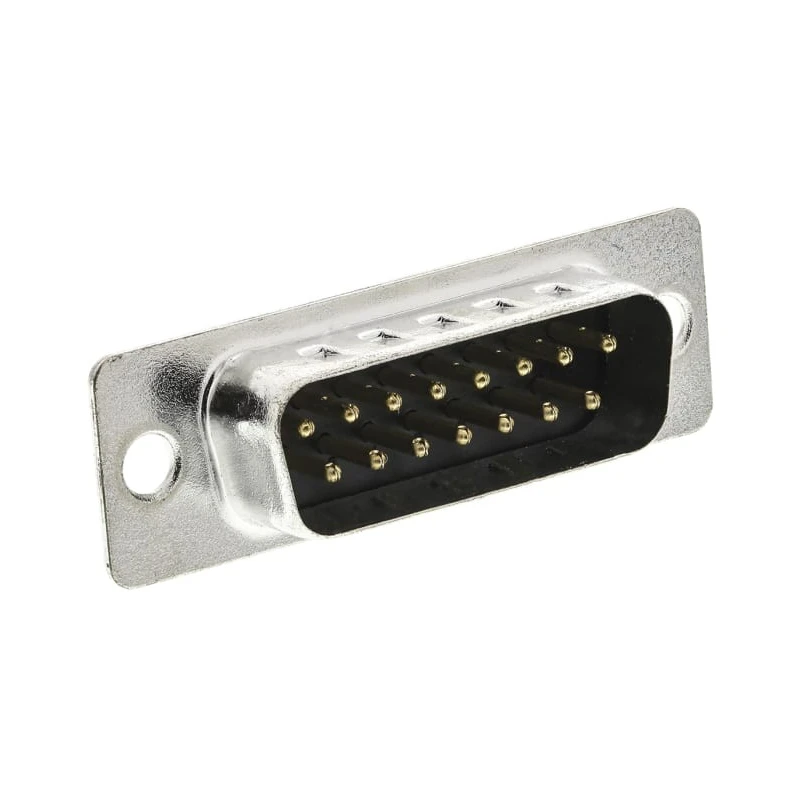

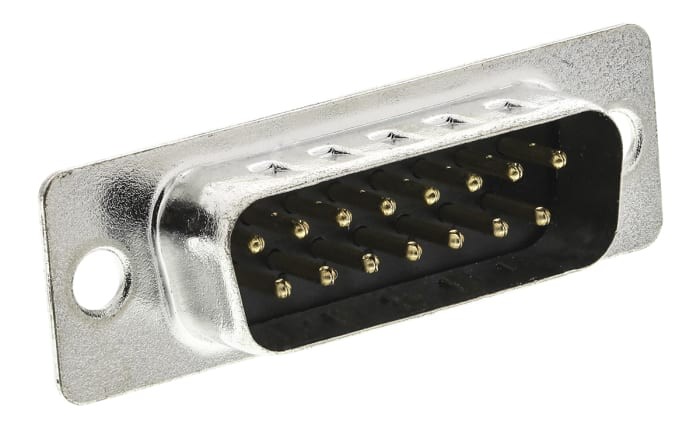

MH Connectors 15 Way Straight D-Sub Connector 250V 5A Solder Termination Gold Plated Contacts MHDPPK15-DB15P-K
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | MH Connectors |
| Orientation | Straight |
| Operating Temperature | -55 to +105 °C |
| Current | 5A |
| Model | MHDPPK15-DB15P-K |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Current Rating | 3A |
| Series | MHDPPK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000 MΩ |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 25mA (max) |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| MH Connectors MHDTPPK 15 Way Straight D-Sub ConnectorBrand | MH Connectors |
Key Features
- Supports a voltage rating of 250 volts and a current rating of 5 amperes.
- Constructed with a durable steel housing material for enhanced strength.
- Features a straight orientation with solder termination type for secure cable connection.
- Gold plating over nickel contact plating ensures corrosion resistance and high conductivity.
- Operates reliably within a temperature range of -55°C to 105°C.
- Includes a black plastic clamshell casing with a quick snap lock for easy assembly.
- Compatible with cables up to 9mm diameter with strain relief via cable clamp and screws.
- Ideal for industrial, electronics manufacturing, and power connector applications.
Product Description
MH Connectors presents the MHDPPK15-DB15P-K, a 15 Way Straight D-Sub Connector engineered for robust, reliable electrical connections in demanding environments.
This connector features a solid steel housing providing mechanical durability and protection. The 15 copper alloy contacts are gold plated over nickel, ensuring excellent conductivity and resistance to corrosion.
With a voltage rating of 250V and a current rating of 5A, it suits a range of power and signal transmission applications safely. Operating temperature extends from -55°C to 105°C, supporting use in challenging industrial and electronic setups.

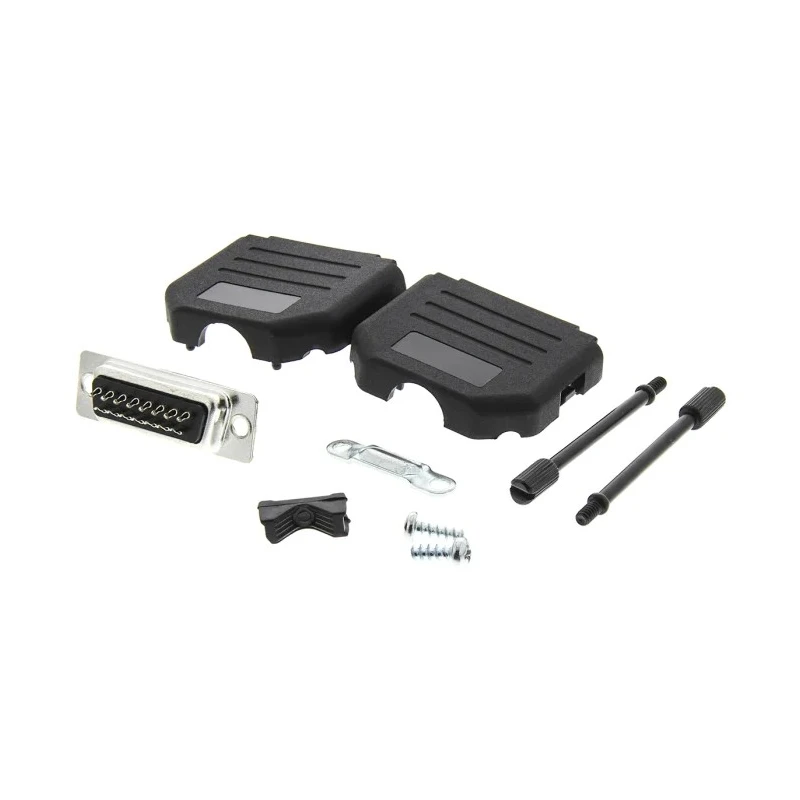

The connector utilizes a solder termination type, facilitating secure and permanent cable connections. Its straight orientation allows versatile installation configurations. The black plastic clamshell casing incorporates the QuickLock system, offering a quick and secure assembly mechanism.
The kit accommodates cables up to 9 mm in diameter and provides strain relief via a metal clamp fastened by two screws, enhancing reliability and extending service life.
Commonly deployed in electronics manufacturing, power distribution units, industrial control systems, and data communication interfaces, this connector meets the needs for durability, performance, and ease of assembly.
Supports electrical connections rated at 250V and 5A current. Durable steel housing for mechanical robustness. Gold plated copper alloy contacts for optimal conductivity. Operates across a broad temperature range (-55°C to 105°C).
Solder termination type with straight orientation for secure wiring. Includes QuickLock plastic clamshell locking system. Cable diameter compatibility up to 9 mm with effective strain relief. Suitable for industrial, manufacturing, and power connector applications.
This MHDPPK15-DB15P-K model is manufactured in China and is part of the reliable MHDPPK series by MH Connectors. Explore the EnvMart catalog to find matching connectors and accessories from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of 250 volts and a current rating of 5 amperes.
It features a durable steel housing and copper alloy contacts that are gold plated over nickel for enhanced conductivity and corrosion resistance.
This model operates reliably within a temperature range of -55°C to 105°C.
It utilizes a solder termination type for secure and permanent cable connections.
This connector has 15 contacts.
It is compatible with cables up to 9 mm in diameter.
Yes, it provides strain relief via a metal clamp that is fastened by two screws.
The connector has a straight orientation, allowing for versatile installation configurations.
The insulation resistance is rated at 1000 MΩ.
This connector is commonly used in electronics manufacturing, power distribution units, industrial control systems, and data communication interfaces.
It includes a QuickLock plastic clamshell locking system for easy assembly.
The MHDPPK15-DB15P-K model is manufactured in China.
