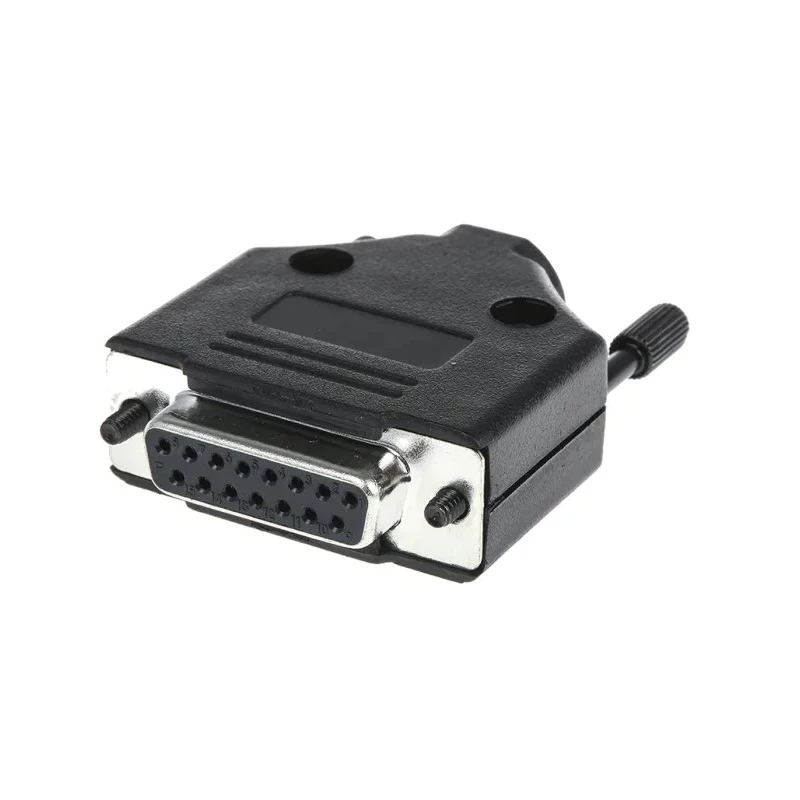

MH Connectors 15 Way Straight D-Sub Connector Female Plastic Housing 250V 5A MHDTPPK15-DB15S-K

MH Connectors MHDTPPK15-DB15S-K is a high-quality 15 way straight D-Sub Connector female designed with a durable plastic housing material. This connector supports a voltage of 250V and a current rating of 5A, making it suitable for various electronic and power connector applications.

The connector operates reliably within a wide temperature range from -55°C to 105°C, ensuring performance under demanding environmental conditions. The contacts feature gold plating for superior conductivity and corrosion resistance, while the solder bucket terminations are tin plated.

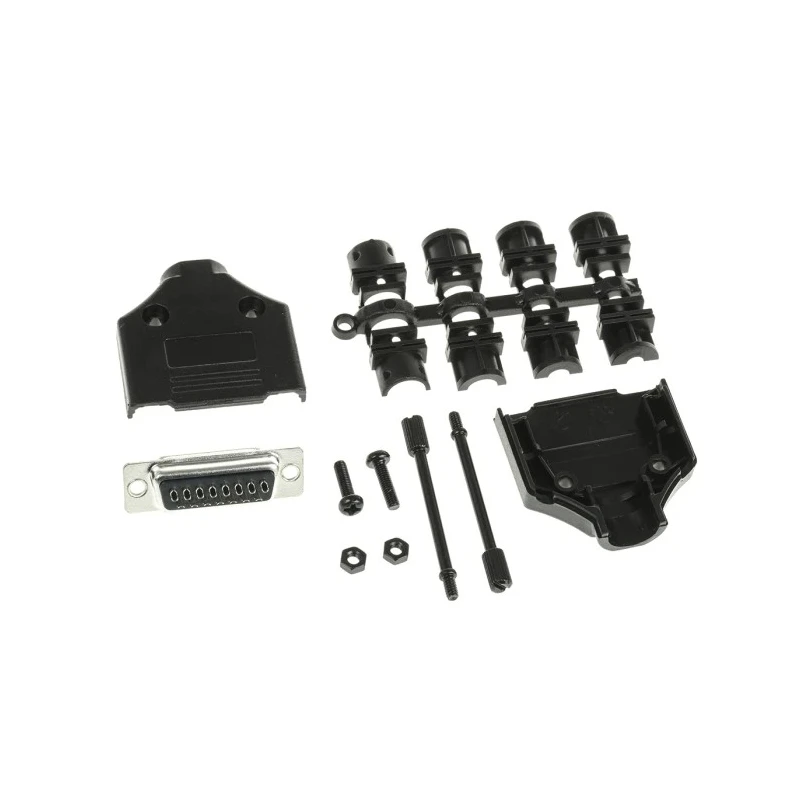

This product kit includes the plug or socket connector with solder buckets, two backshell halves constructed from ABS Polylac plastic providing mechanical protection, two 4-40 thumbscrews, two housing screws and nuts, and a set of compression inserts for cable diameters ranging between 4 mm and 13 mm.

The straight orientation female connector is part of the MHDTPPK series by MH Connectors known for quality and reliability. It is tailored for solder termination types and supports use in industrial electronics, power distribution systems, telecommunications, and manufacturing equipment.

The connector features a plastic housing for insulation and durability. It supports a current of up to 5 amperes for reliable power transmission. Designed for solder termination and female contact gender. Operates efficiently within a temperature range from -55°C to 105°C.

The mating contacts are gold plated with tin-plated solder bucket terminations. Includes 2 backshell halves, 2 thumbscrews, 2 housing screws, 2 nuts, and compression inserts for cables up to 13 mm. Suitable for 15 contacts with straight orientation.

This connector is ideal for applications in electronics, power connectors, telecommunications, and industrial controls requiring secure and reliable 15-way female D-Sub connections.
