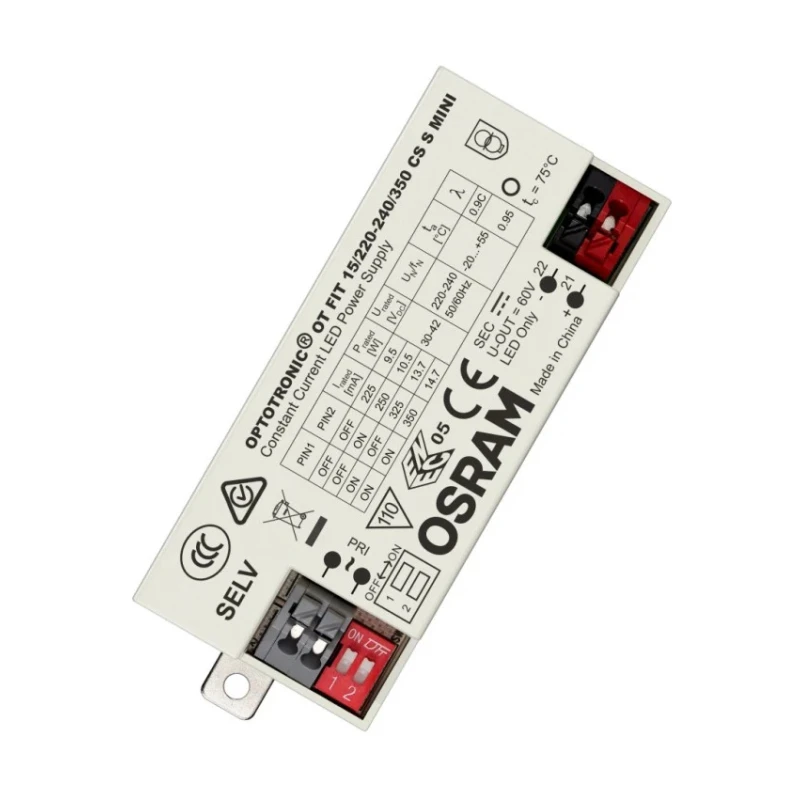

Osram 1 Output Non-Dimmable Constant Current LED Driver 42V 14.7W 350mA IP20
Specifications
| Country of Origin | China |
|---|---|
| Brand | Osram |
| Model | IP20 |
| IP Rating | IP20 |
| Mount Type | Screw |
| Series | OT FIT |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Push |
| Maximum Output Power | 14.7W |
| Input Voltage | 220, 240V |
| Output Voltage | 42V |
| Power Dissipation | 2.1W |
| Dimming Operation | Non-Dimmable |
| Primary Type | AC-DC |
| Driver Current | 350mA |
| LED Voltage | 30, 42V |
Key Features
- Designed for indoor SELV installations with IP20 rating.
- Operates at input voltage of 220 to 240V AC with screw mount type.
- Equipped with push terminal type for secure wiring.
- Provides constant current output mode for LED lighting applications.
- Includes reversible over temperature, overload, short circuit and open circuit protections.
- Compact housing for flexible luminaire designs with thermal management up to 60 °C.
- Output current can be flexibly selected via DIP switch with four current options.
- Complies with standards including 61347-2-13, 62384, EN 61347-1, IEC 61000-3-2, and IEC 61547.
Product Description
Osram IP20 model OT-FIT-15/220-240/350-CS-S-MINI is a compact constant current LED driver providing a single output of 42V and 350mA non-dimmable operation, delivering a maximum power of 14.7W. Designed primarily for indoor, safety extra-low voltage (SELV) installations, this driver is suitable for various lighting applications in industrial, commercial, and architectural settings.
This LED driver features a screw mounting type for secure installation and push terminal wiring for ease of connection. Its compact, enclosed housing allows flexible luminaire design and effective thermal management supporting operation temperatures up to 60 °C. The device offers flexible output current selection using a DIP switch that enables users to choose from four preset current levels.
For enhanced safety and reliability, the driver is equipped with reversible protections against over temperature, overload, short-circuit, and open-circuit scenarios. The product carries international approvals and complies with standards including EN 61347-1, IEC 61000-3-2, IEC 61547, 61347-2-13, and 62384, ensuring compliance with industry quality and safety benchmarks.
Designed for indoor SELV LED lighting applications with IP20 protection rating. Single output configuration with constant current mode of 350mA. Input voltage range of 220-240V AC for broad compatibility. Screw mounting with push terminal type ensures robust installation.
Reversible protections improve the longevity and safety of connected LEDs. Small form factor housing allows integration into diverse lighting system designs. Flexible output current via DIP switch enhances user customization.
Compliance with multiple international safety and performance standards.
Industries such as commercial lighting, architectural illumination, and industrial automation can benefit from this reliable Osram LED driver. It ensures consistent LED performance, energy efficiency, and durability under various operating conditions.
Explore the range of Osram LED drivers and other LED Lighting Components at EnvMart to find reliable lighting solutions for your projects.
