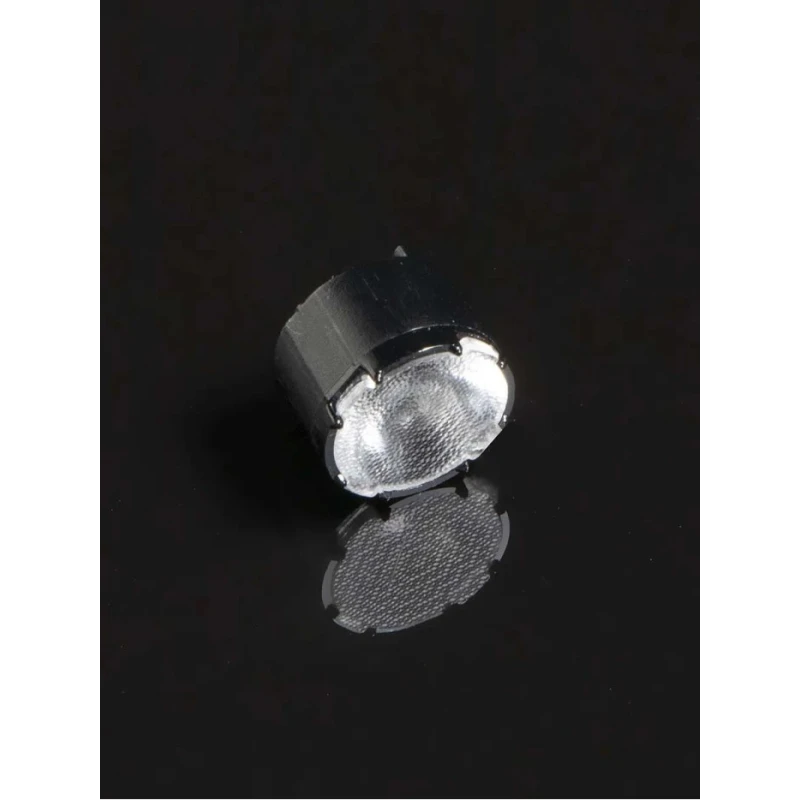

Ledil LED Optic & Holder Kit, Lisa Series, Medium Beam, 25° Viewing Angle, 10 mm Diameter, FP16608_LISA3CSP-M-PIN

The Ledil FP16608_LISA3CSP-M-PIN is an advanced LED optic and holder kit in the Lisa Series, designed for professional LED lighting solutions that demand precise light shaping and superior optical efficiency. This compact kit combines a miniature TIR (Total Internal Reflection) lens with a dedicated holder, providing a controlled 25° medium beam spread. Its round lens form, with a diameter of only 10 millimeters and a height of 6.05 millimeters, makes it exceptionally well-suited for integration in space-limited lighting systems while maintaining robust optical performance.

Manufactured using high-quality polycarbonate materials, the kit is engineered to deliver up to 90% transmission efficiency, ensuring that LED output is maximized for both uniformity and brightness. The lens mounts securely in the molded holder, allowing for reliable mechanical stabilization on the PCB through integrated locating pins or optional mounting clips. This thoughtful design supports rapid assembly and stable placement even in demanding, high-volume manufacturing environments.

The medium beam pattern (25° viewing angle) is ideal for spotlighting, accent lighting, jewelry displays, reading lamps, portable torches, and headlamps, where focused yet ample light distribution is critical. The clear diffused optical surface contributes to consistent and predictable beam shaping, supporting an expansive range of industrial, retail, and commercial applications.

Compliant with RoHS environmental standards, the FP16608_LISA3CSP-M-PIN kit provides peace of mind regarding regulatory and sustainability requirements. The inclusion of both the lens and holder in a single kit streamlines procurement and reduces assembly steps for OEMs and integrators. As part of the Lisa Series from Ledil, this kit is engineered for longevity and high optical integrity, ensuring stable operation over the lifespan of the luminaire.

Across professional environments, the Ledil Lisa Series optics are preferred for use in LED luminaires requiring precision beam control, enhanced intensity, and consistent light quality. Applications span LED lighting manufacturing, industrial fixture production, commercial display illumination, and specialty lighting in jewelry retail, reading aids, and portable devices.
