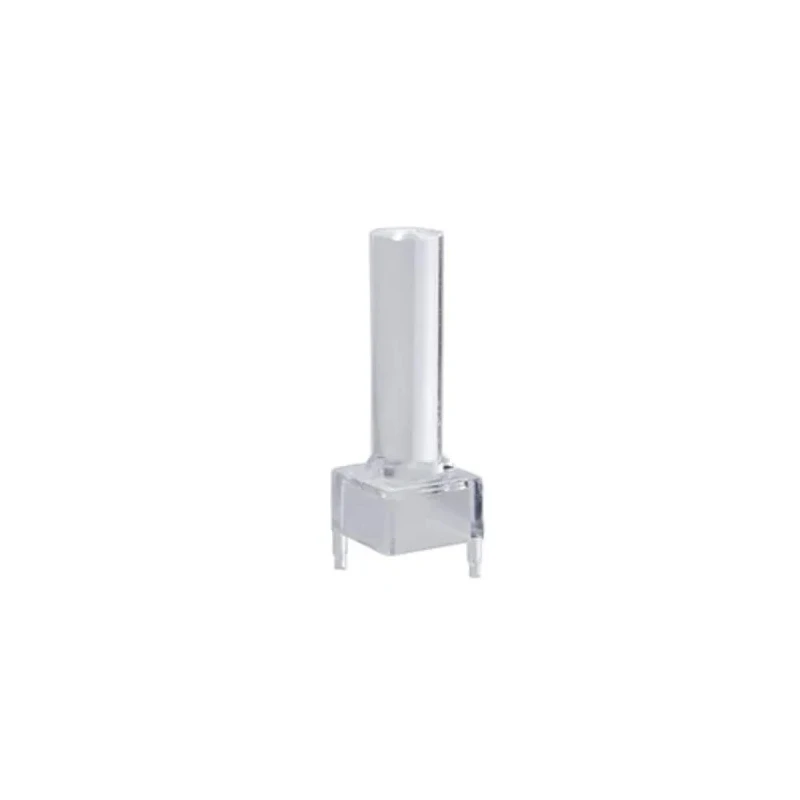

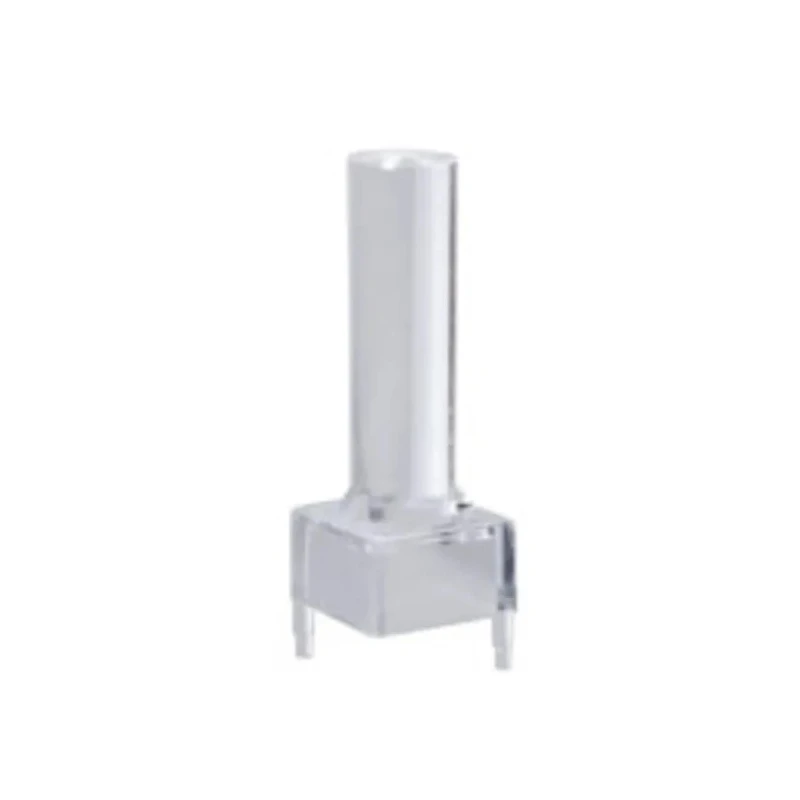

Bivar Surface 1-Way Straight Rigid LED Light Pipe, 16.5mm Length, 3 mm Lens, Polycarbonate, VLP-650-F
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bivar |
| Material | Polycarbonate Clear Flat Face Lens Use with Standard SM0603 through SM0805 Surface Mount LEDs Protects Circuit from ESD |
| Orientation | Straight |
| Length | 16.5mm |
| Model | VLP-650-F |
| Number Of Ways | 1 |
| Mount Type | Surface |
| Series | VLP |
| Outside diameter | 0.118mm |
| Standards/Approvals | 94V-0 |
| LED Colour | Red, Black, Grey, Yellow, Green, Blue |
| Flexible/Rigid | Rigid |
| Lens Size | 3 mm |
| Number of Light Pipes | 1 |
| Configuration Rows x Columns | 1 x 1 |
Key Features
- Allows one-way light guidance in surface-mounted LED lighting systems.
- 16.5mm total length suitable for board-mounted installations with minimal profile.
- Rigid straight configuration supports direct light transmission for precise alignment.
- Constructed of clear polycarbonate, ensuring high optical clarity and durability.
- Features a flat face lens for efficient light coupling with SM0603 through SM0805 surface-mount LEDs.
- Surface mount design enhances compatibility with automated assembly processes.
- Complies with 94V-0 materials for safety in industrial environments.
Product Description
The Bivar VLP-650-F is a robust and precisely engineered 1-way straight rigid LED light pipe optimized for surface mounting in electronic display and optoelectronic applications. With a length of 16.5mm and a 3 mm clear polycarbonate lens, this light pipe enables efficient coupling and transmission of light from standard SMD LEDs to panel surfaces, providing a well-defined and aesthetically pleasing optical output.
This component features a straight, rigid structure that ensures consistent light transmission and easy alignment during installation. Its flat face lens is engineered for reliable operation with popular surface mount LEDs, particularly those in SM0603 through SM0805 packages, allowing engineers and designers to integrate indicator or display features without complex mechanical arrangements.
Made from high-quality, optically clear polycarbonate, the VLP-650-F offers outstanding durability and clarity while minimizing the risk of visual distortion or loss of light intensity. The surface mount design streamlines PCB assembly and suits modern automated production lines, resulting in reduced labor and improved production consistency. Its compact 0.118mm outside diameter facilitates integration in dense or space-constrained circuit layouts.
Supporting multiple LED color options - including red, black, grey, yellow, green, and blue - the pipe provides flexible visual design possibilities for status indication, signal transmission, or user interface features. It further helps protect sensitive electronic circuits from electrostatic discharge effects, thanks to careful material selection and design.
Compliance with UL94V-0 flammability standards underlines the suitability of this light pipe for applications in industrial, laboratory, and commercial environments where safety and electrical performance are paramount. The VLP series configuration supports single-row, single-column (1 x 1) layouts and can be used in custom or volume electronic assembly projects.
The Bivar VLP-650-F Surface 1-Way Straight Rigid LED Light Pipe is ideal for use in electronic control panels, laboratory instrumentation, diagnostic devices, telecom hardware, automotive dashboards, and any environment where reliable, precise, and visually clear LED indication or transmission is essential.
Explore all Bivar LED Lighting Components in EnvMart’s specialized range for advanced optoelectronic and indicator requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bivar VLP-650-F light pipe has a total length of 16.5mm.
This model is designed for use with standard SM0603 through SM0805 surface mount LEDs.
The lens size of the Bivar VLP-650-F is 3 mm.
The light pipe is constructed from clear polycarbonate, which ensures high optical clarity and durability.
The outside diameter of the Bivar VLP-650-F is 0.118mm.
The Bivar VLP-650-F has a straight orientation.
The surface mount design enhances compatibility with automated assembly processes, streamlining PCB assembly.
The configuration of the Bivar VLP-650-F is designed for a single-row, single-column (1 x 1) layout.
This model supports multiple LED colors, including red, black, grey, yellow, green, and blue.
The Bivar VLP-650-F complies with UL94V-0 flammability standards, making it suitable for industrial environments.
This light pipe is ideal for use in electronic control panels, laboratory instrumentation, diagnostic devices, and automotive dashboards.
The design of the Bivar VLP-650-F helps protect sensitive electronic circuits from electrostatic discharge effects.
