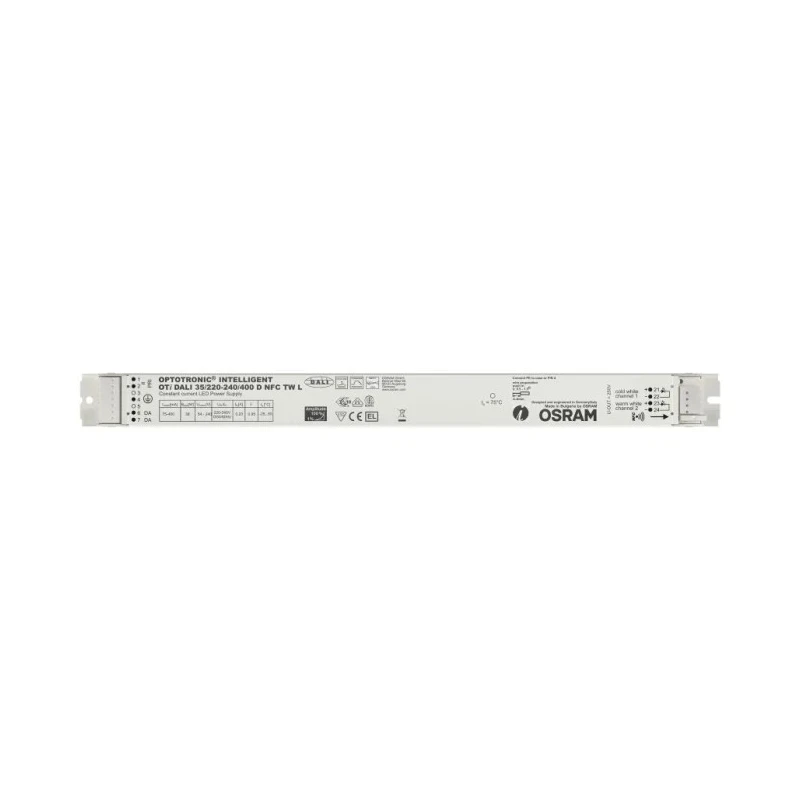

Osram 2 Output LED Driver, 300V Output Voltage, 35W Power, 400mA Current, 220-240V Input, Non-Isolated, Dimmable 1 to IP20

Osram IP20 OTi-DALI-35/220-240/400-D-NFC-TW-L is a high-quality 2 output LED driver designed to deliver a stabilized 300V output voltage at 400mA constant current with a maximum power rating of 35W. It operates from 220 to 240V AC input and features a screw mount type with push terminal connections. This non-isolated LED driver supports smooth dimming operation from 1 to 100%, making it ideal for linear lighting systems in industrial, retail, warehouse, and commercial environments.

Built with an enclosed configuration and IP20 ingress protection rating, this driver is suitable for use inside luminaires with protection class I. It comes with wide certifications such as VDE-ENEC, VDE-EMC, RCM, EL, CE, and CCC ensuring compliance with international safety and electromagnetic standards. The driver is fully programmable through T4T software using NFC technology along with a DALI interface, enabling precise setting customization.

Featuring a wide operating temperature range of -40°C to +65°C and integrated surge protection capable of withstanding up to 4 kV between line and neutral, this LED driver offers excellent reliability. It also includes an inrush current limiter to reduce power supply stress during start-up. Power dissipation is optimized at just 3W, contributing to its energy efficiency.

The driver operates reliably in constant current mode optimized for LED lighting applications. Capability to control dimming level continuously from 1% to full brightness is advantageous for energy savings and ambience customization.

Its dual output design allows powering multiple LED arrays or luminaires simultaneously. Suitable for manufacturing, warehouse, retail lighting, and other commercial illumination projects where robust and programmable LED drivers are needed.

Designed for installation ease with screw mounts and push terminals, ensuring quick and secure connections.

This Osram LED driver enhances LED lighting systems by providing energy-efficient, programmable, and dependable current regulation to maintain consistent light output. It supports advanced applications requiring DALI control and NFC programming for tailored light management in modern lighting solutions.
