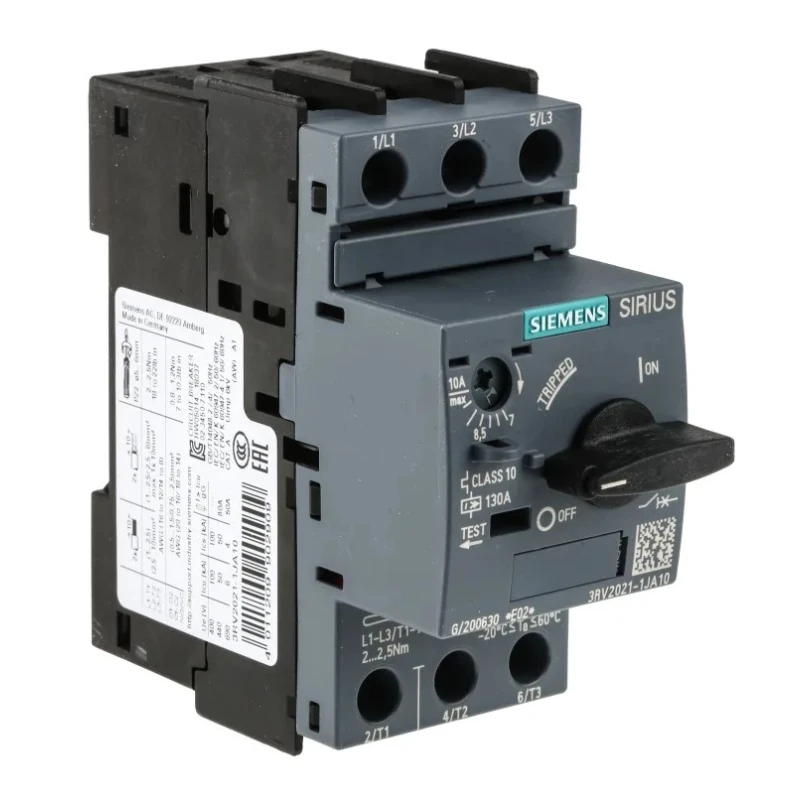

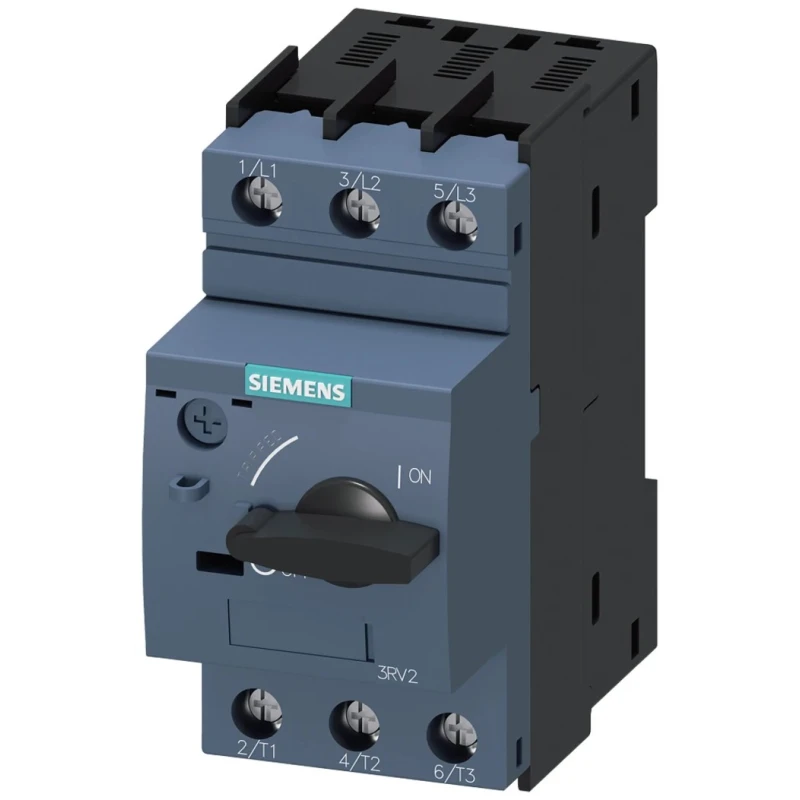

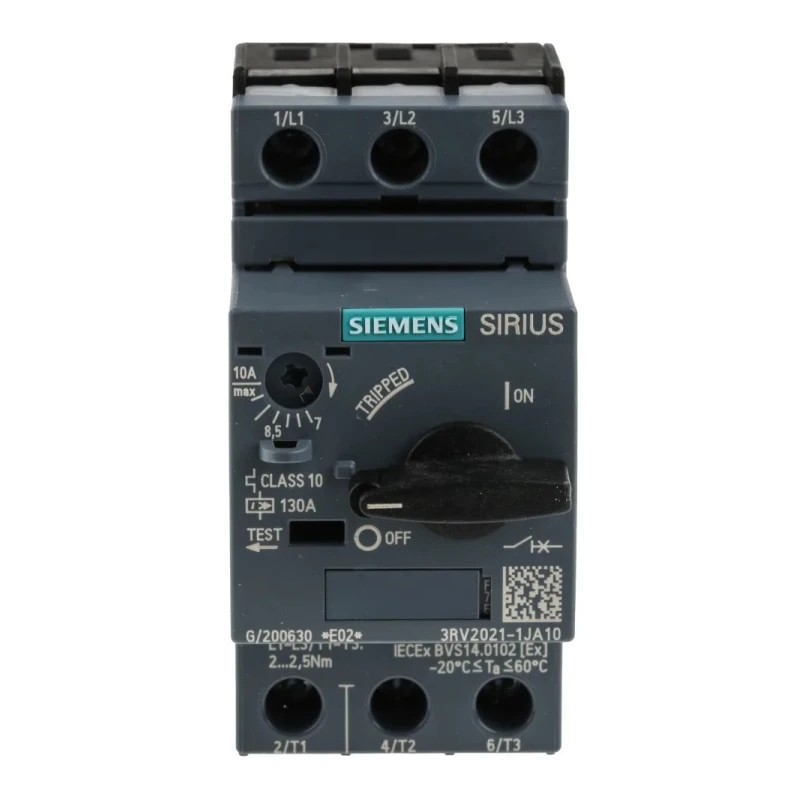

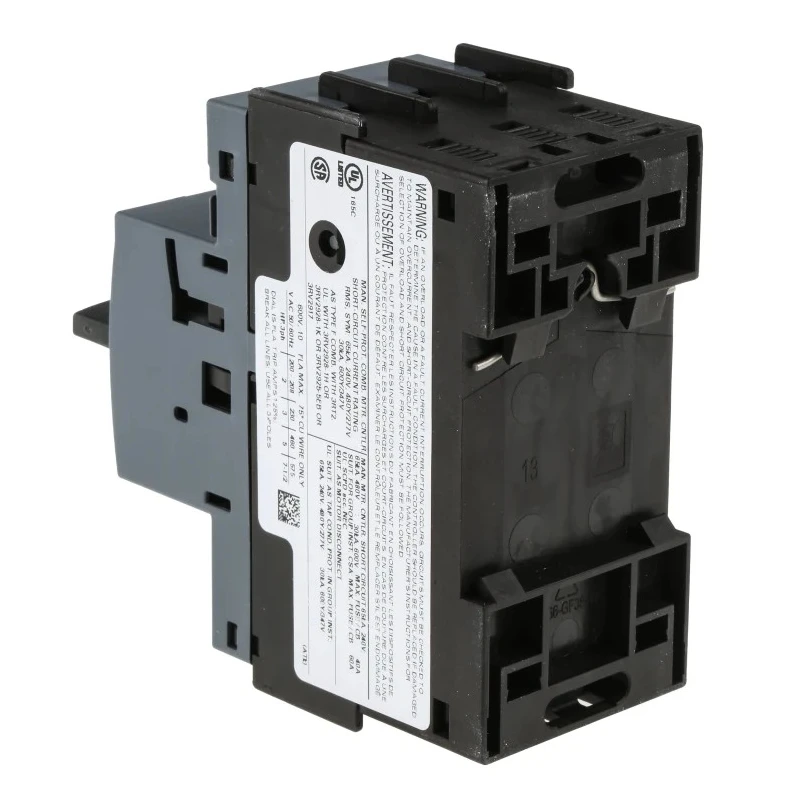

Siemens Motor Protection Circuit Breaker 10A/7A, 690V, IP20, Class 10, Magnetic Sensing, 3RV2 Series 3RV2021-1JA10
Specifications
| Country of Origin | Germany |
|---|---|
| Relative Humidity | Up to 95% |
| Brand | Siemens |
| Model | 3RV2021-1JA10 |
| IP Rating | IP20 |
| Overall Length | 45mm |
| Current Rating | 10, 7A |
| Series | 3RV2 |
| Overall Width | 96.9mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | CCC, ABS, ATEX, CE, VDE, UL, UKCA, RoHS, CSA, LRS, EAC |
| Overall Depth | 97mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Surge Voltage Resistance | 6kV |
Key Features
- Designed for industrial motor protection applications.
- Supports magnetic sensing for precise tripping response.
- IP20 rated casing for enhanced electrical safety and touch-safe terminals.
- Screw terminals accommodate AWG 16 to 8 (2.5 to 10mm²) for robust connections.
- Compatible with snap-on DIN rail mounting for flexible installation.
- Offers Class 10 tripping, disconnecting within 10 seconds under high overload.
- Withstands relative humidity up to 95% and surge voltage resistance of 6kV.
- Three-pole construction provides protection across phases.
Product Description
Siemens 3RV2021-1JA10 Motor Protection Circuit Breaker is purpose-built for safeguarding electric motors in demanding industrial environments. Featuring a current rating of 10A/7A and a maximum supply voltage of 690V, this circuit breaker ensures the safety and reliability of motor-driven systems.
Its magnetic sensing mechanism provides accurate response to overload and short-circuit conditions, acting as a Class 10 tripping device that disconnects the motor within 10 seconds during overcurrent events. The three-pole circuit design offers comprehensive phase protection, making it suitable for multi-phase machinery.
The IP20 rated housing guarantees touch safety against electrical shocks, and screw-type terminals support cable sizes from AWG 16 to 8 (2.5 to 10mm²), facilitating secure and easy connections. Installation is simplified with options for screw or snap-on DIN rail mounting, allowing flexibility in panel layout.
This model from Siemens' 3RV2 series demonstrates robust endurance by withstanding 6kV surge voltage and operational humidity up to 95%. Its temperature tolerance spans from -20°C to 60°C, making it a strong candidate for harsh ambient conditions in factories, workshops, or automation control panels.
Measuring 45mm in length, 96.9mm in width, and 97mm in depth, the compact form factor is ideal for space-constrained industrial cabinets. The circuit breaker conforms to international standards including CCC, ABS, ATEX, CE, VDE, UL, UKCA, RoHS, CSA, LRS and EAC, ensuring reliable performance across global applications.
Common use cases include protection of pumps, conveyor motors, HVAC systems, and manufacturing machinery in industrial, commercial, and laboratory settings. The device contributes to the prevention of equipment damage and reduction of downtime by providing dependable overload and short-circuit protection.
Explore more Siemens motor protection circuit breakers in the EnvMart Electronics & Electricals category for efficient and secure electric motor operations.
Explore more products in our Motor Circuit Breaker category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A/7A.
The maximum supply voltage is 690V.
The magnetic sensing mechanism provides an accurate response to overload and short-circuit conditions, allowing for effective motor protection.
It has an IP20 rating, ensuring touch safety against electrical shocks.
The dimensions are 45mm in length, 96.9mm in width, and 97mm in depth.
It offers Class 10 tripping, which disconnects the motor within 10 seconds during high overload conditions.
The operating temperature range is from -20°C to 60°C.
It features screw-type terminals that accommodate cable sizes from AWG 16 to 8 (2.5 to 10mm²).
It can withstand a surge voltage of 6kV.
This circuit breaker conforms to standards including CCC, ABS, ATEX, CE, VDE, UL, UKCA, RoHS, CSA, LRS, and EAC.
It can operate in environments with relative humidity up to 95%.
Common applications include protection of pumps, conveyor motors, HVAC systems, and manufacturing machinery.
