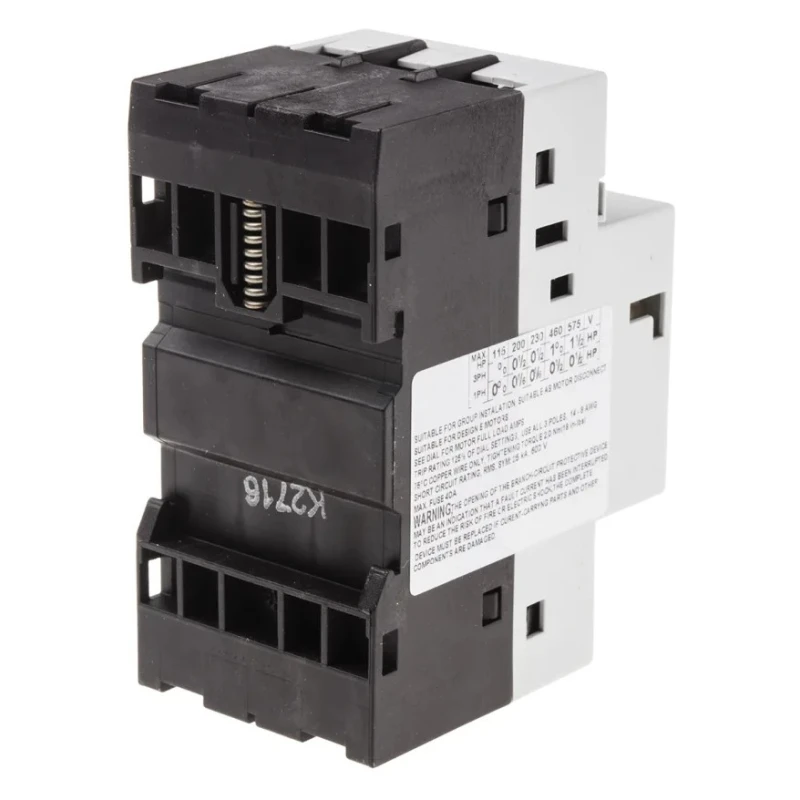

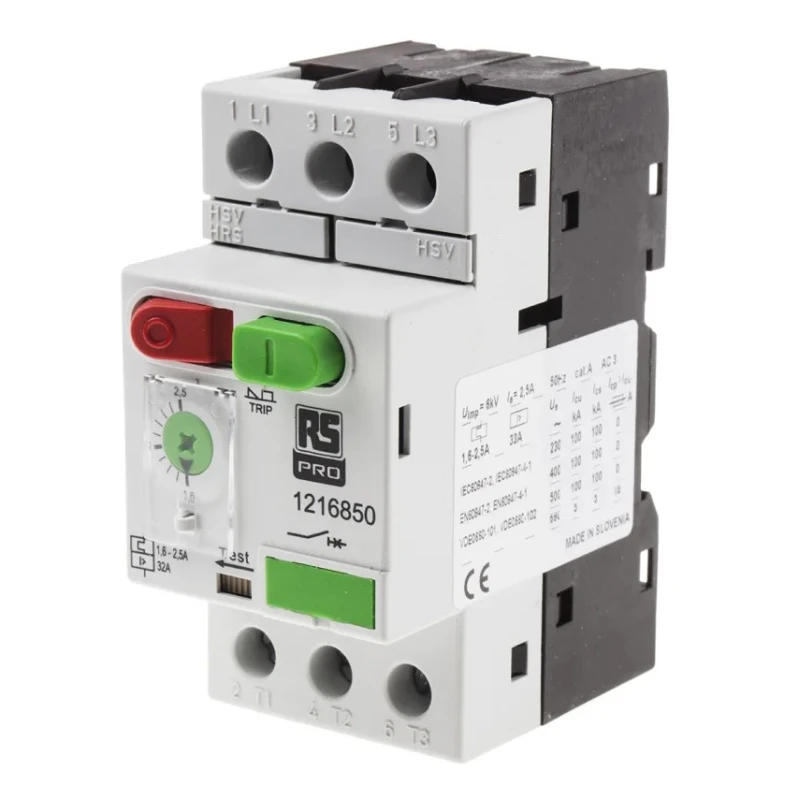

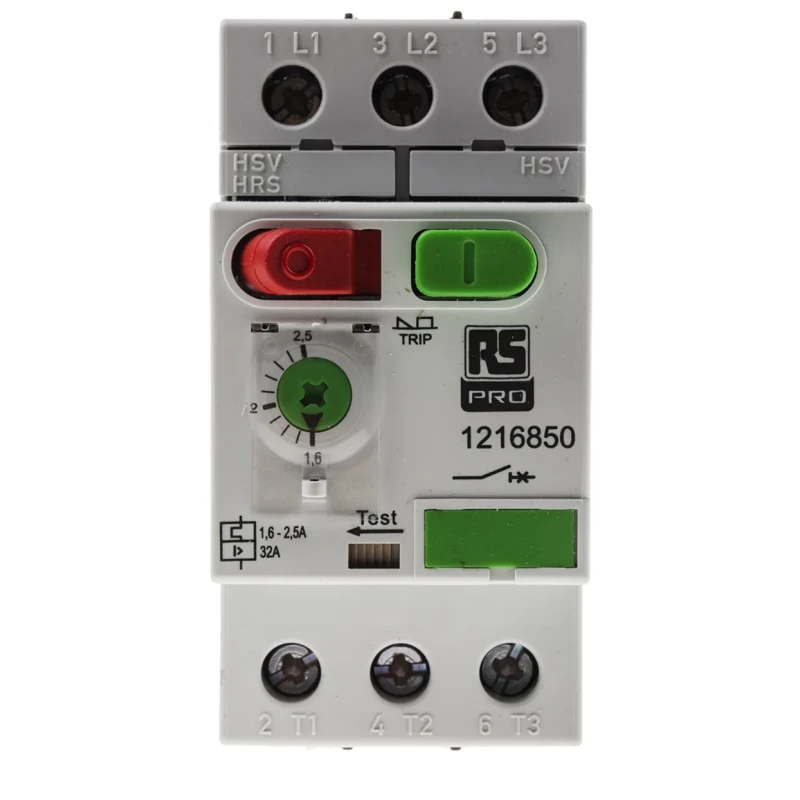

RS PRO Motor Protection Circuit Breaker MS32 1.6 - 2.5A, 690V, 3 Poles, IP40/IP20

RS PRO MS32 Motor Protection Circuit Breaker, designed for reliable motor protection in industrial and commercial settings. This three-pole circuit breaker is equipped with both thermal and magnetic release mechanisms, effectively safeguarding motors from overloads and short circuit events. Its rated current range of 1.6A to 2.5A provides flexibility, enabling use with various motor sizes across demanding applications.

The breaker operates at supply voltages up to 690V and can be conveniently mounted onto a standard 35mm DIN rail, either vertically or horizontally, simplifying installation processes. Automatic reset functionality minimizes downtime and enhances operational safety by eliminating the need for manual intervention following a fault.

Suitable for protecting motors against overload and short circuit conditions. Features both thermal and magnetic release mechanisms for reliable overcurrent protection. Rated current range of 1.6A to 2.5A for flexible usage with different motor sizes.

Operates at supply voltage up to 690V and supports vertical or horizontal DIN rail mounting. Automatic reset function enhances safety and reduces downtime. IP40/IP20 rated enclosure for improved protection against dust and accidental contact.

Compact design with overall dimensions of 45mm x 89.5mm x 78.5mm (LxWxD). Three-pole configuration supports balanced phase motor operation. Wide operating temperature range from −25°C to 60°C for versatility in harsh environments.

Complies with IEC/EN 60947-2, RoHS, CSA, and UL 508 for regulatory assurance.

The MS32 model features screw-type terminals for secure connections and is tested for quality and reliability. Its enclosure rating allows use in environments where protection from dust and accidental contact is important. The robust device supports motor protection requirements in manufacturing plants, agriculture, building sites, and other industrial facilities.

With dimensions of 45mm x 89.5mm x 78.5mm, the circuit breaker can fit within control panels while allowing efficient usage of space. The wide operating temperature range enhances reliability in extreme conditions. Regulatory compliance and internationally recognized standards make this product suitable for global industrial installations.
