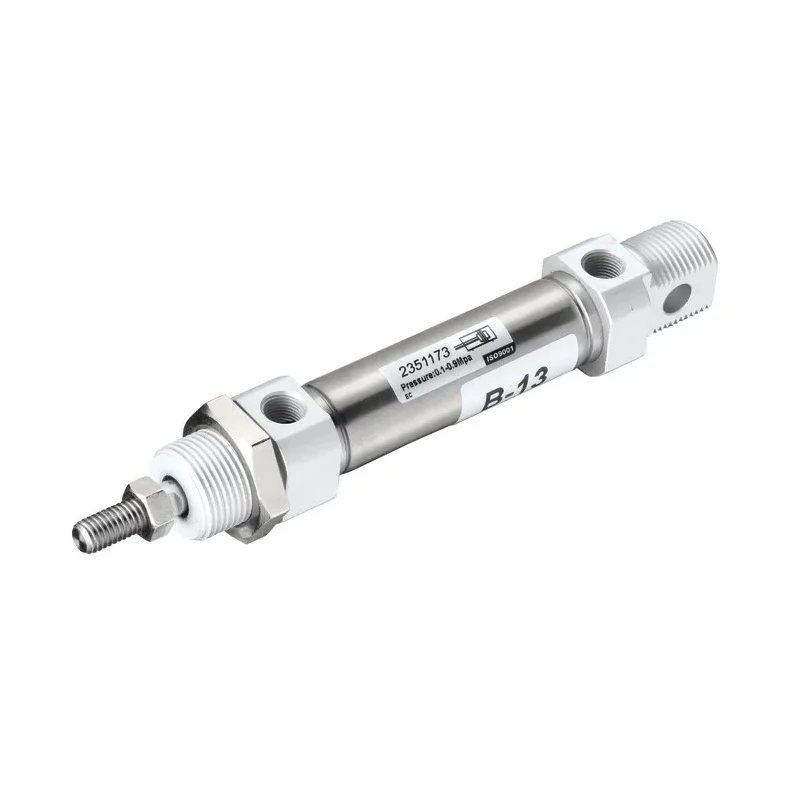

RS PRO Pneumatic Compact Cylinder 16mm Bore, 40mm Stroke, Double Acting Aluminium Body 235-1173

RS PRO 235-1173 Pneumatic Compact Cylinder is a precision-engineered pneumatic actuator with a 16mm bore and 40mm stroke, designed for double acting operation. Its aluminium body construction provides a sturdy yet lightweight solution suitable for a range of industrial applications requiring reliable and consistent pneumatic actuation.

This cylinder operates by applying air pressure alternately to both ends, generating a continuous pumping motion and extended stroke length compared to single acting cylinders. It includes air cushion damping to reduce noise and wear while maintaining smooth operation.

The piston rod, made from S45C hard chrome carbon steel, offers excellent corrosion resistance and durability, ensuring a long operational life. The cylinder is fitted with magnetic positioning for accurate feedback and rubber cushions to minimize impact stresses during operation. CNC machined front and rear covers ensure precise assembly and alignment.

Designed for a maximum operating pressure of 10 bar and piston speeds up to 800mm/s, this cylinder functions efficiently across a temperature range from -20°C to 80°C, suitable for varied industrial environments. Its compact size makes it particularly effective where space constraints exist.

Typical applications include factory automation systems, transportation machinery, packaging lines, and other small-bore, medium-duty pneumatic requirements. The inclusion of Japanese anti-dust seals and German grease further improve durability and operational reliability.

Durable aluminium body construction. Double acting pneumatic operation for extended stroke control. Air cushion type damping for reduced wear and noise. High operating pressure tolerance up to 10 bar. Compact 16mm bore and 40mm stroke dimensions.

Wide temperature operating range from -20°C to 80°C. S45C hard chrome carbon steel piston rod for longevity. Magnetic positioning and rubber cushions for precision and wear reduction. Precision CNC machined covers for consistent fit and performance.

Ideal for factory automation, transportation, and packaging machinery.
