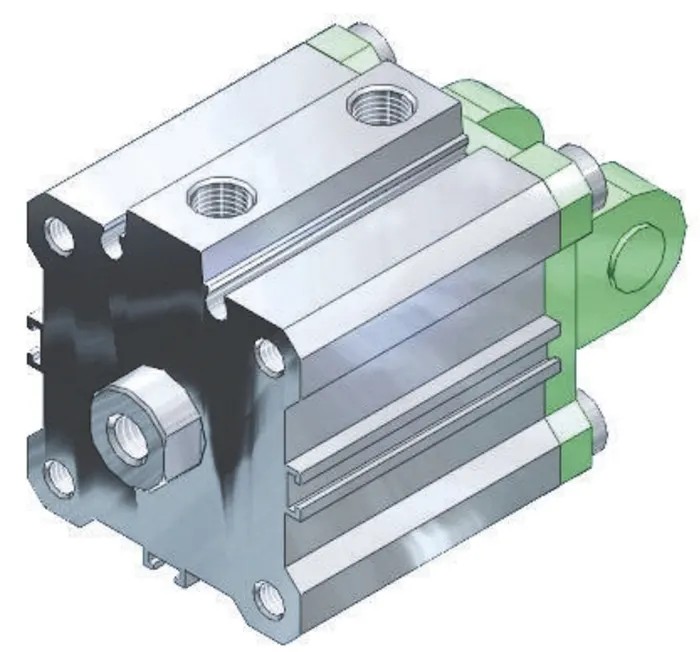

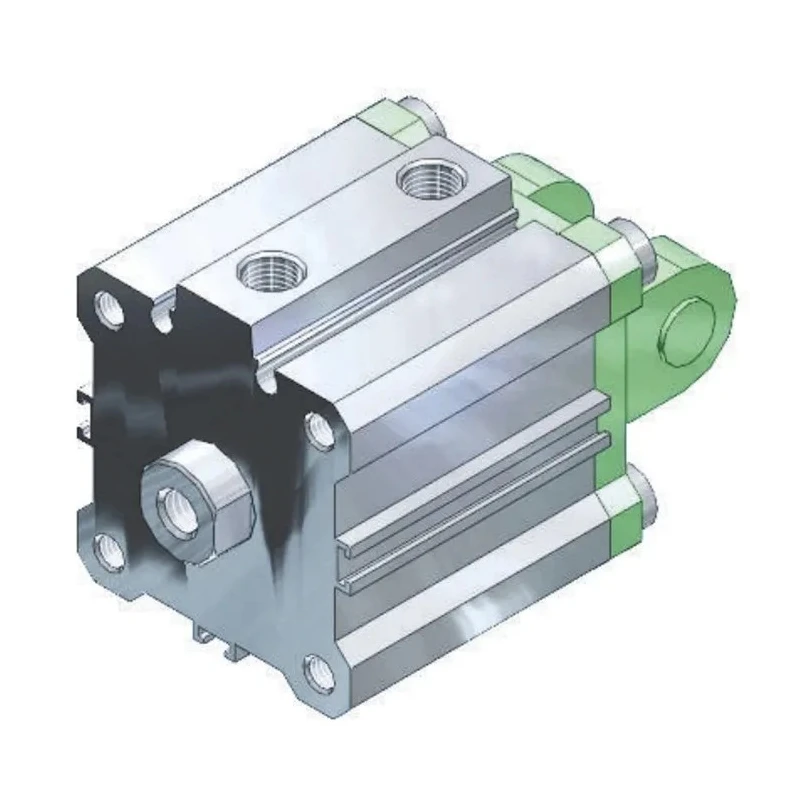

SMC Pneumatic Compact Cylinder Double Acting 12mm Bore, 15mm Stroke CDQSB12-15D

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder Double Acting 12mm Bore, 15mm Stroke CDQSB12-15D



Category Pneumatic Compact Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	25mm
Length	35.5mm
Model	CDQSB12-15D
Gross Weight	42g
Width	25mm
Mount Type	Through Hole
Series	CDQS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	15mm
Bore Diameter	12mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	6 mm

Key Features

The cylinder body is made of aluminium alloy for durability.
It operates with a maximum pressure of 1.5 MPa and maximum piston speed of 500 mm/s.
Features a single rod type with a female piston rod thread size of 6 mm, metric standard.
Designed for operating temperatures from -10°C to 70°C.
Mount type is through hole for secure installation.
Compact size with body length 35.5mm, width 25mm, and height 25mm.
Suitable for pneumatic actuator and automation use in industrial, manufacturing, and fluid power systems.
No special standards or approvals included.

Product Description

SMC CDQSB12-15D Pneumatic Compact Cylinder is a robust aluminium alloy double acting cylinder designed for pneumatic applications requiring compact size and reliability. It has a bore diameter of 12mm and a stroke length of 15mm, ideal for use in confined spaces.

The cylinder supports a maximum operating pressure of 1.5 MPa and a piston speed up to 500 mm/s, providing efficient actuation performance in automated systems. It operates across a broad temperature range from -10°C to 70°C, suitable for various industrial environments.

Featuring a single rod type with a female piston rod thread size of 6 mm (metric standard), the cylinder mounts via through hole, ensuring easy and stable installation. Its dimensions of 35.5mm length, 25mm width, and 25mm height contribute to its space-saving design.

With a gross weight of just 42 grams, this compact cylinder is lightweight yet durable for fluid power and pneumatic control applications. Although it carries no special standards or approvals, it is a reliable choice for pneumatic piston rod cylinders used in manufacturing, industrial automation, laboratory equipment, and HVAC systems.

The SMC CDQSB12-15D cylinder is sourced directly from China and is ideal for equipment requiring compact pneumatic actuators with double acting operation. The cylinder body is made of aluminium alloy for durability. It operates with a maximum pressure of 1.5 MPa and maximum piston speed of 500 mm/s.

Features a single rod type with a female piston rod thread size of 6 mm, metric standard. Designed for operating temperatures from -10°C to 70°C. Mount type is through hole for secure installation. Compact size with body length 35.5mm, width 25mm, and height 25mm.

Gross weight of the cylinder is 42 grams facilitating easy integration. Suitable for pneumatic actuator and automation use in industrial, manufacturing, and fluid power systems. No special standards or approvals included.
