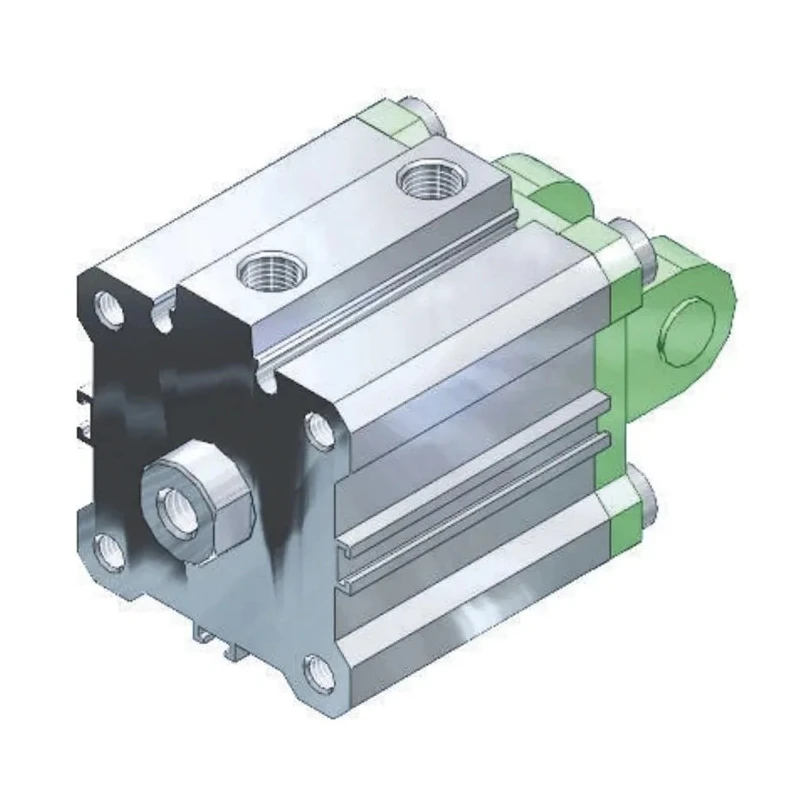

SMC Pneumatic Compact Cylinder 25mm Bore 35mm Stroke Double Acting Aluminium Alloy Body CDQSB25-35D

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 25mm Bore 35mm Stroke Double Acting Aluminium Alloy Body CDQSB25-35D



Category Pneumatic Compact Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	40mm
Length	62.5mm
Model	CDQSB25-35D
Gross Weight	186g
Width	40mm
Mount Type	Through Hole
Series	CDQS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	35mm
Bore Diameter	25mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	12 mm

Key Features

The cylinder has a through-hole mount type for versatile installation.
It operates under a maximum pressure of 1.5 MPa and a maximum piston speed of 500 mm/s.
The operating temperature ranges from -10°C to 70°C, suitable for various industrial environments.
The piston rod has a single rod type with female gender and a 12mm metric thread size.
Constructed with nitrile seals and aluminium alloy body for durability and lightweight operation.
The compact size with dimensions 62.5mm length, 40mm height, and 40mm width allows space and weight saving.
Proof pressure is rated at 15 bar ensuring reliability under heavy use.
The cylinder is switch capable with flush fitting auto switch options available.

Product Description

SMC CDQSB25-35D Pneumatic Compact Cylinder is a precision-engineered component featuring a 25mm bore and 35mm stroke length designed for double acting operation. The aluminium alloy construction provides a balance of strength and lightweight design, making it suitable for various mechanical and fluid power industrial applications.

This compact cylinder supports a through-hole mount allowing for flexible installation options and comes with nitrile seals for enhanced durability and leak resistance. It operates effectively within a temperature range of -10°C to 70°C and withstands maximum operating pressure of 1.5 MPa with a piston speed capability up to 500 mm/s.

The piston rod is configured as a single rod type with female gender and a metric 12mm thread size, ensuring compatibility with standard pneumatic fittings. The design also includes magnetic or non-magnetic pistons with flush fitting auto switch as standard, facilitating sensor integration.

The compact dimensions (62.5mm length, 40mm height, and 40mm width) and low weight of 186g enable space-saving installations in tight industrial environments including automation, manufacturing, and assembly lines.

Proof pressure rating of 15 bar guarantees operational reliability under demanding conditions. This cylinder suits applications requiring accurate and reliable piston rod actuation in pneumatic systems.

The cylinder’s aluminium alloy body ensures corrosion resistance and structural integrity. Double acting design allows control over both extension and retraction strokes. Through-hole mounting provides secure and versatile attachment.

The product supports auto switch sensors with multiple lead wire lengths for flexible sensing options. Ideal for use in industrial automation, pneumatic systems, and fluid power applications.

Choose SMC pneumatic cylinders for high performance and durability in compact actuator solutions. Explore EnvMart's extensive range of hydraulic and pneumatic tools for your industrial needs.
