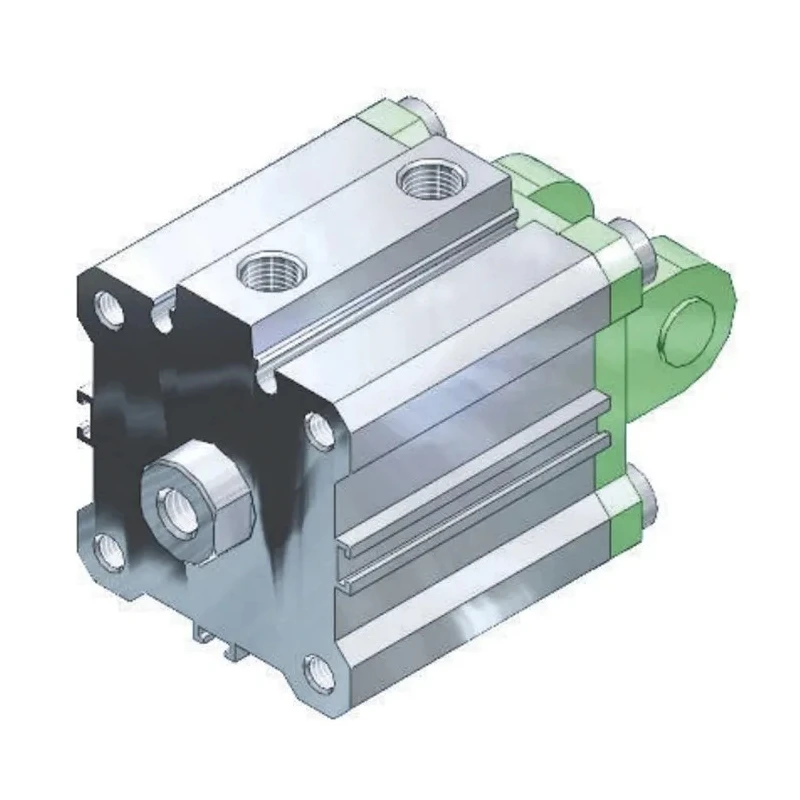

SMC Pneumatic Compact Cylinder 16mm Bore, 20mm Stroke, Double Acting, Aluminium Alloy CDQSB16-20D

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 16mm Bore, 20mm Stroke, Double Acting, Aluminium Alloy CDQSB16-20D



Category Pneumatic Compact Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	29mm
Length	40.5mm
Model	CDQSB16-20D
Gross Weight	64g
Width	29mm
Mount Type	Through Hole
Series	CDQS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	20mm
Bore Diameter	16mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	8 mm

Key Features

Compact size suitable for small bore cylinder applications.
Double acting piston for precise control of motion.
Constructed from durable aluminium alloy for lightweight corrosion resistance.
Operating temperature range from -10°C to 70°C.
Maximum operating pressure of 1.5 Mpa ensures reliable performance.
Through hole mount type simplifies installation and secure fixing.
Single rod type with female piston rod thread sized at 8mm.
Magnetic or non-magnetic pistons available depending on requirements.

Product Description

The SMC CDQSB16-20D is a pneumatic compact cylinder featuring a 16mm bore diameter and 20mm stroke length, designed for double acting operation. Its aluminium alloy body provides an optimal balance of lightweight design and durability, making it ideal for applications requiring compact pneumatic motion control.

This cylinder supports a maximum operating pressure of 1.5 Mpa and sustains maximum piston speeds of up to 500mm/s, enabling fast and efficient actuation. Operating reliably across a temperature range from -10°C to 70°C ensures versatility in diverse environmental conditions.

The through hole mount type facilitates straightforward installation, and the single rod design with a female piston rod with an 8mm thread meets standard metric sizing for compatibility. The product is engineered with nitrile seals and offers options for magnetic or non-magnetic pistons, catering to sensor integration needs.

With a lightweight of 64 grams and compact dimensions (height and width of 29mm, and length 40.5mm), this cylinder is well-suited for tight spaces in industrial automation, laboratory equipment, HVAC systems, material handling, and manufacturing machinery.

Compact size suitable for small bore cylinder applications. Double acting piston for precise control of motion. Constructed from durable aluminium alloy for lightweight corrosion resistance. Operating temperature range from -10°C to 70°C.

Maximum operating pressure of 1.5 Mpa ensures reliable performance. Through hole mount type simplifies installation and secure fixing. Single rod type with female piston rod thread sized at 8mm. Magnetic or non-magnetic pistons available depending on requirements.

Proof pressure up to 15 bar enhances safety margin. Lightweight design at approximately 64 grams supports easy handling. Suitable for industrial automation, pneumatic systems, and fluid power applications.

Manufactured in China, the SMC CDQSB16-20D pneumatic compact cylinder is a high-quality component from SMC, recognized for reliability in pneumatic and hydraulic tools. Explore more Pneumatic Compact Cylinders and related components in the Hydraulics & Pneumatics section at EnvMart for comprehensive industrial solutions.
