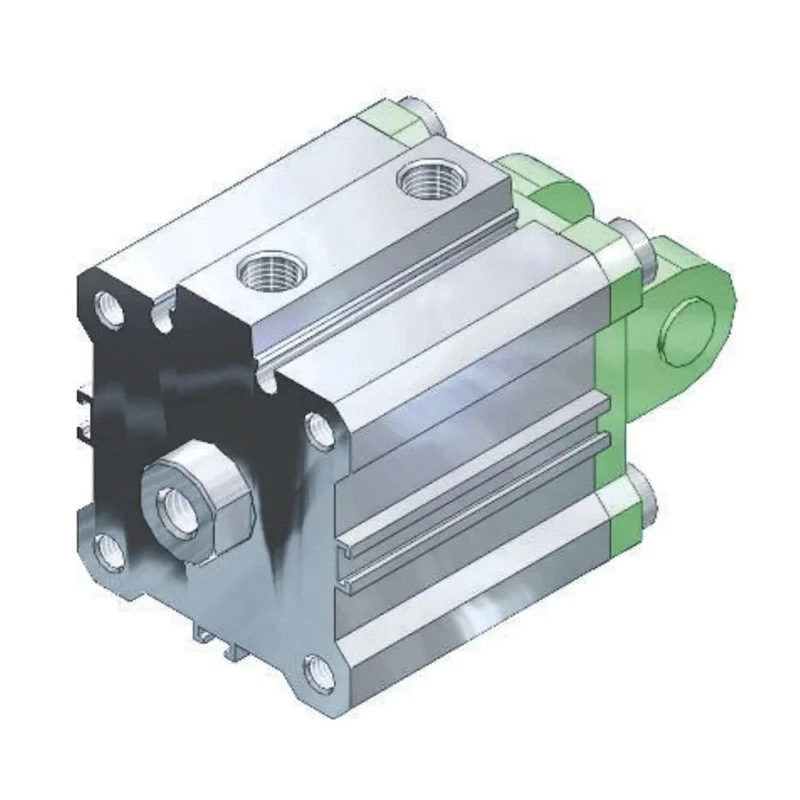

SMC Pneumatic Compact Cylinder, 12 mm Bore, 5 mm Stroke, Double Acting, Aluminium Alloy Body, Through Hole Mount CDQSB12-5D

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder, 12 mm Bore, 5 mm Stroke, Double Acting, Aluminium Alloy Body, Through Hole Mount CDQSB12-5D



Category Pneumatic Compact Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	25mm
Length	25.5mm
Model	CDQSB12-5D
Gross Weight	29g
Width	25mm
Mount Type	Through Hole
Series	CDQS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	5mm
Bore Diameter	12mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	6 mm

Key Features

Constructed with an aluminium alloy body for lightweight durability.
Features double acting operation for reliable piston control.
Through hole mount type ensures secure installation flexibility.
Designed for maximum operating pressure of 1.5 Mpa and piston speed up to 500 mm/s.
Operates effectively within a temperature range from -10°C to 70°C.
Piston rod has 6 mm metric female thread for easy integration.
Rod type is single with nitrile seals for leak-resistant performance.
Lightweight at 29 grams, ideal for small bore cylinder applications.

Product Description

SMC CDQSB12-5D Pneumatic Compact Cylinder is engineered to provide efficient and compact pneumatic actuation with a 12 mm bore and 5 mm stroke length. Its aluminium alloy body combines strength and lightness, making it suitable for applications requiring fast and precise movement in limited spaces.

Designed with double acting action, this compact cylinder offers controlled motion by utilizing pneumatic pressure on both sides of the piston. The through hole mount allows flexible and secure installation in various industrial settings.

Operating at a maximum pressure of 1.5 Mpa and capable of piston speeds up to 500 mm per second, this cylinder adapts well to dynamic pneumatic systems. Its operating temperature range from -10°C to 70°C supports reliable performance across typical industrial environments.

Featuring a 6 mm metric female thread piston rod, single rod type, and nitrile seals, the cylinder ensures leak-resistant operations and easy mechanical integration. With compact physical dimensions of 25.5 mm length, 25 mm width, 25 mm height and low weight of 29 grams, it is ideal for small bore cylinder applications.

The CQS series, of which this model is a part, is known for space and weight savings with options for magnetic or non-magnetic pistons, 15 bar proof pressure, and flush fitting auto switch capability. This pneumatic actuator suits manufacturing, automation, packaging, and fluid power tasks requiring compact and efficient cylinder solutions.

Constructed with aluminium alloy body for lightweight durability. Double acting action type for precise piston control. Through hole mount type for flexible installation. Maximum operating pressure of 1.5 Mpa. Maximum piston speed of 500 mm/s.

Operating temperature range from -10°C to 70°C. Single rod type with 6 mm metric female thread piston rod. Compact dimensions and weight of 29 grams.

Explore the broad range of pneumatic cylinders and actuators at EnvMart to find compatible components and accessories suitable for diverse industrial and laboratory pneumatic applications.
