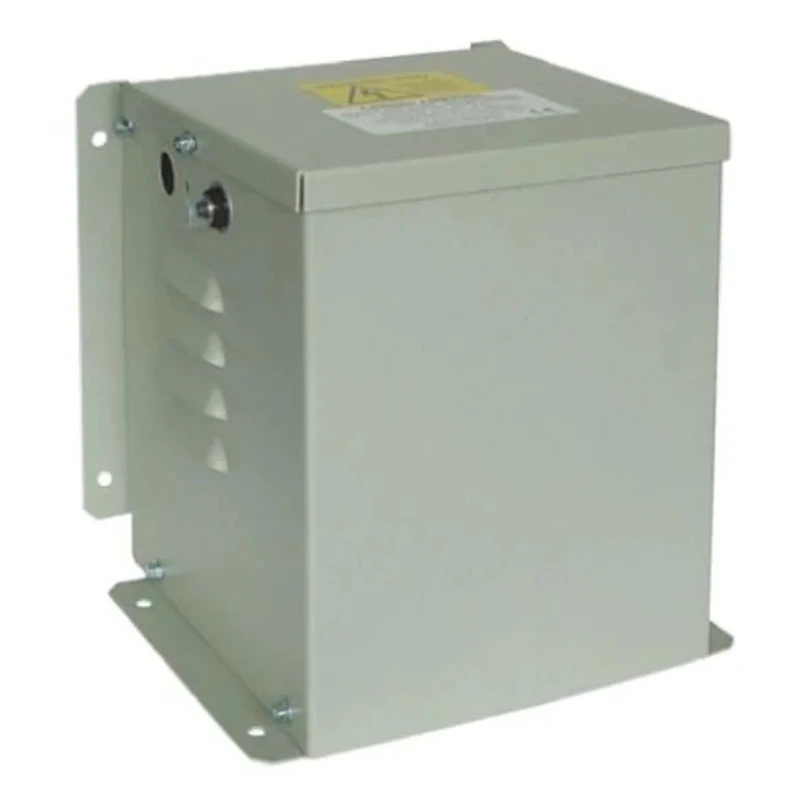

Carroll & Meynell Single Phase Wall Mount Site Transformer 3 kVA, 230 V ac Primary, 110 V ac Secondary, 31.81 A CM5000/WM0

Carroll & Meynell CM5000/WM0 site transformer is a high-quality single phase wall mount transformer with a power rating of 3 kVA, 230 V ac primary voltage, and 110 V ac secondary voltage. Designed specifically for safe electrical power distribution, it is suitable for industrial, garage, and other fixed installation applications requiring robust isolation and overload protection.

The unit features double wound 110 V secondaries that are centre tapped to earth, minimizing electric shock risks. Its robust sheet steel enclosure is rated to IP22 standards and designed for wall mounting with easy access provided through 20 mm conduit entries on both sides. A resettable thermal cut out switch protects the primary circuit from overload conditions, while an embedded thermal safety overload fuse enhances the safety and reliability of operation.

Output current reaches a maximum of 31.81 A, compliant with BSEN 61558-2-23 regulations which specify safe operating durations for tool usage. The transformer operates within a standard frequency range of 50 to 60 Hz and is supplied with a hard wire plug type (L-N-E).

Dimensions include a length of 350 mm, width of 460 mm, and a depth of 330 mm, with a gross weight of 35 kg, reflecting its robust industrial-grade construction.

These site transformers are critical components in ensuring safe power supply distribution in commercial and industrial settings, frequently used to supply power tools and other heavy-duty electrical devices.

Features centre-tapped 110 V secondary winding for earthing to reduce shock risk. Equipped with resettable thermal cut out on primary for overload protection. Fitted with thermal safety overload fuse embedded in the primary winding.

Constructed in sheet steel with IP22 type enclosure for wall mounting. Suitable for industrial, garage, and fixed installation power tool applications. Operates within 50 to 60 Hz frequency range for broad compatibility.

Provides a maximum output current of 31.81 A, adhering to BSEN 61558-2-23 standard. Incorporates 20 mm conduit entries on both sides of the enclosure for easy wiring access. Manufactured in the United Kingdom ensuring high-quality construction standards.
