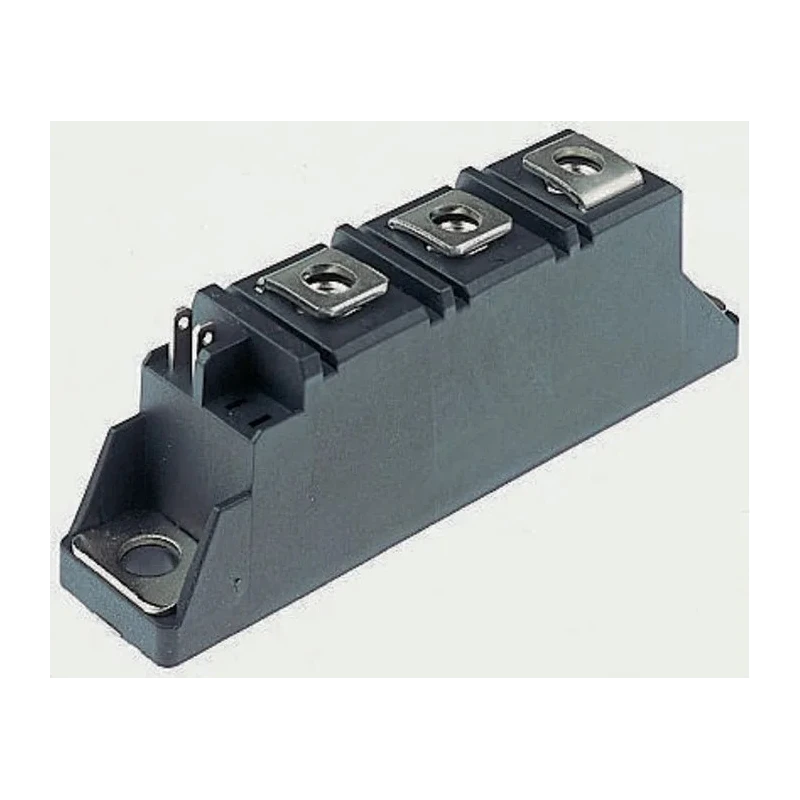

IXYS Thyristor Module 1600 V 1.6 kA 64 A 100 mA 1.57 V TO-240AA 5-Pin MCD56-16IO1B

The IXYS MCD56-16IO1B is a high-performance thyristor module designed for industrial and commercial electronic applications that require robust power control and switching solutions. This module integrates a thyristor in series with a diode, optimized for mains voltage 50/60 Hz rectification. Its package features a Direct Copper Bonding (DCB) ceramic base plate that provides excellent thermal conductivity and electrical isolation.

This device is encapsulated with an electrically isolated base plate, making it ideal for panel mounting in equipment such as battery chargers, welding machines, plating installations, regulated power supplies, as well as temperature and speed control circuits. The module operates efficiently at a maximum temperature of 125°C and is capable of handling surge currents up to 1.6 kA, with an average on-state current rating of 64 A, ensuring reliable performance under demanding conditions.

Featuring a maximum gate trigger current of 100 mA and a gate trigger voltage of 1.5 V, the MCD56-16IO1B facilitates precise switching control. Its physical dimensions are compact, measuring 92 mm in length, 30 mm in height, and 20.8 mm in width. The module uses a 5-pin TO-240AA package, designed for secure panel mounting.

The IXYS MCD56-16IO1B thyristor module is a UL recognized component, demonstrating compliance with safety and quality standards, but it does not comply with automotive standards. Its robust design and electrical characteristics make it suitable across varied sectors including industrial manufacturing, electronics assembly, power management, and HVAC systems.

Includes a thyristor and diode in series for efficient AC rectification. Package has a Direct Copper Bonding ceramic base plate for optimal thermal handling. Rated for surge current up to 1.6 kA and average on-state current of 64 A.

Maximum operating temperature is 125°C for high temperature tolerance. Features a 5-pin TO-240AA package with panel mounting capability. Maximum gate trigger current and voltage are 100 mA and 1.5 V respectively. Dimensions: 92 mm length, 30 mm height, 20.8 mm width.

Operates with a peak on-state voltage of 1.57 V and a repetitive peak reverse voltage of 1600 V.

This thyristor module is ideal for use in industrial, manufacturing, commercial, and laboratory power control applications requiring stable high current and voltage handling combined with efficient thermal management. Explore more electronic components and Thyristor Modules on EnvMart’s professional catalog.
