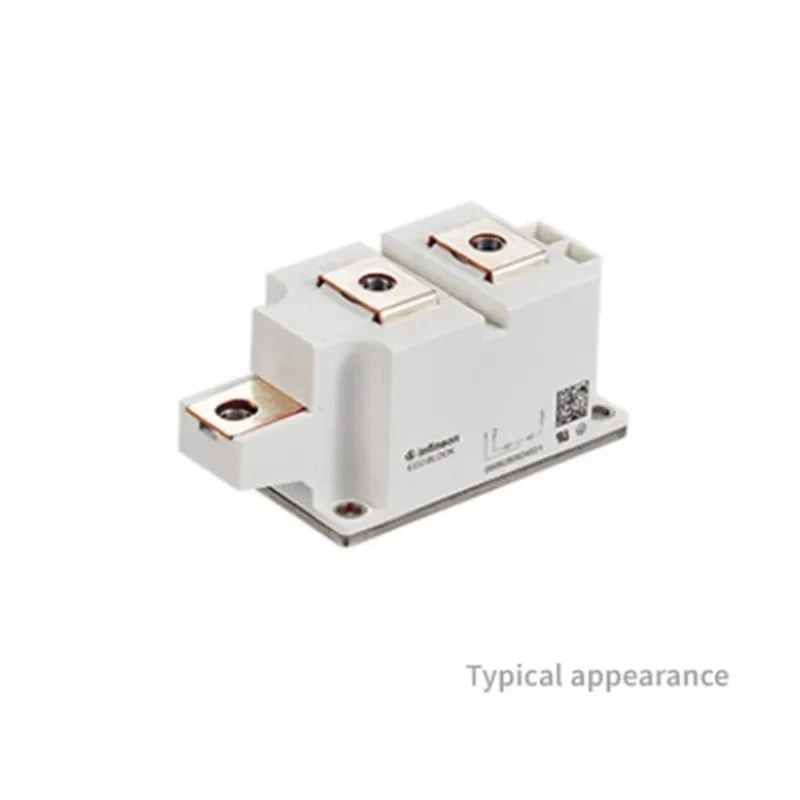

Infineon Thyristor Module 1800 V 9.5 kA Surge Current, 380 A Rated On-State Current, 7-Pin TT390N18SOFHPSA1

The Infineon TT390N18SOFHPSA1 Thyristor Module is a high-performance discrete semiconductor device optimized for phase control and power management in industrial applications. It supports a repetitive peak reverse voltage of 1800 volts and can handle surge currents up to 9.5 kiloamperes, making it suitable for demanding power switching tasks.

The device features a rated average on-state current of 380 amperes, with a maximum gate trigger and holding current of 150 milliamperes, ensuring responsive and stable switching operation. Its 7-pin configuration provides versatile and secure electrical connections for integration into power control circuits.

Manufactured using solder bond technology, this thyristor module ensures reliable construction and excellent thermal conductivity. The electrically insulated base plate aids in heat dissipation and safe mounting on heatsinks or other surfaces, enhancing operational safety and longevity.

The peak on-state voltage of 1.47 volts contributes to energy efficiency by reducing power losses during conduction, while the module’s ability to operate at temperatures up to 140°C ensures reliable function in high-temperature industrial environments.

This thyristor module is designed primarily for use in power semiconductor modules within electronics, electric modules, and power systems dealing with controlled rectification, phase control, and power regulation. Typical industrial applications include motor drives, welding equipment, and power supplies.

Rated average on-state current of 380 A for robust current carrying capacity. Surge current rating up to 9.5 kA for handling transient loads. Maximum gate trigger current and holding current rated at 150 mA for precise triggering.

7-pin configuration facilitating integration and connection. Peak on-state voltage of 1.47 V to minimize conduction losses. Maximum operating temperature of 140°C for durable industrial usage. Utilizes solder bond technology for secure and reliable assembly.

Electrically insulated base plate for safe mounting and effective thermal management.

The Infineon TT390N18SOFHPSA1 Thyristor Module is a reliable component for industrial, manufacturing, and power electronics environments requiring effective phase control semiconductor devices. It is suitable for applications in sectors such as industrial automation, motor control, and power conversion.
