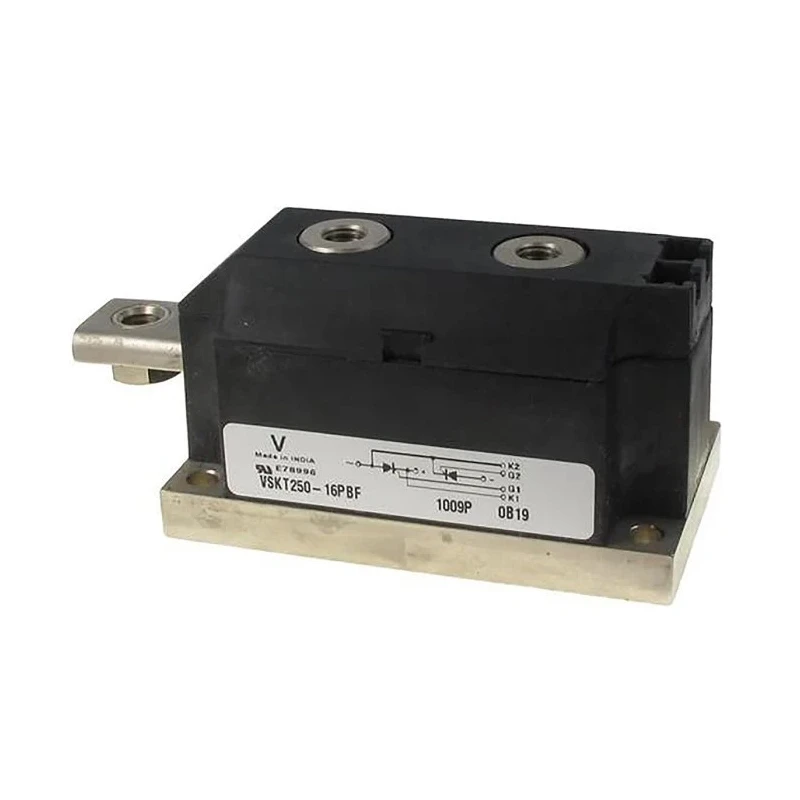

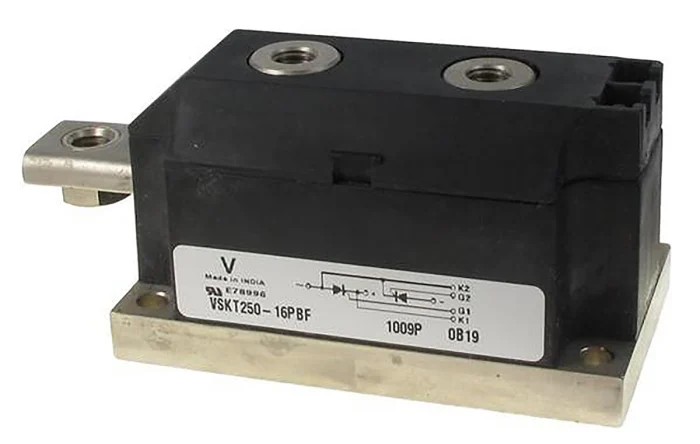

Vishay Dual Thyristor Module 1600 V 8.9 kA 250 A 350 mA 1.44 V MAGN-A-PAK 7-Pin VS-VSKT250-16PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 52mm |
| Length | 115mm |
| Model | VS-VSKT250-16PBF |
| Width | 50mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 130°C |
| Package Type | MAGN-A-PAK |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 250A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 8.9kA |
| Maximum Gate Trigger Current Igt | 350mA |
| Maximum Holding Current Ih | 500mA |
| Maximum Gate Trigger Voltage Vgt | 4V |
| Peak On-State Voltage | 1.44V |
| Repetitive Peak Off-State Current | 60mA |
Key Features
- Rated for 1600 V repetitive peak reverse voltage ensuring robust voltage blocking.
- Capable of handling 250 A rated average on-state current for high current applications.
- Surge current rating of 8.9 kA supports transient high current loads.
- Features 7-pin MAGN-A-PAK package for secure panel mounting.
- Maximum gate trigger current of 350 mA and holding current of 500 mA for reliable switching.
- Operates up to a maximum temperature of 130°C for demanding industrial environments.
- Peak on-state voltage of 1.44 V ensures efficient conduction.
- Designed without automotive standards, suitable for general industrial and power supply uses.
Product Description
Vishay VS-VSKT250-16PBF Dual Thyristor Module is a high-performance semiconductor device intended for industrial and power electronics applications.
This module operates with a repetitive peak reverse voltage of 1600 V and features a surge current rating of 8.9 kA, enabling it to handle heavy electrical loads and transient currents effectively. It supports a rated average on-state current of 250 A, making it suitable for demanding power control scenarios.
Constructed in the MAGN-A-PAK industrial standard package with a 7-pin configuration, the device is designed for panel mounting, ensuring stable installation in equipment such as battery chargers, welders, plating equipment, regulated power supplies, and motor speed control systems.
The maximum gate trigger current is 350 mA while the holding current is 500 mA, providing precise control over the switching operation. It can reliably operate at ambient temperatures up to 130°C, fitting industrial environments with elevated thermal demands.
The encapsulated module includes an electrically isolated base plate with a 3500 V RMS isolating voltage from the metal base, contributing to enhanced safety and electrical isolation in sensitive circuits.
Rated for 1600 V repetitive peak reverse voltage. Handles 250 A rated average on-state current. Surge current rating of 8.9 kA. Packaged in 7-pin MAGN-A-PAK module suitable for panel mounting. Maximum gate trigger current of 350 mA.
Maximum operating temperature of 130°C. Peak on-state voltage of 1.44 V ensures low conduction loss. Electrically isolated base plate for enhanced safety. Dimensions: 115 mm length, 50 mm width, 52 mm height. This module is UL approved (file E78996) and is ideal for power electronics industrial applications involving controlled rectification, switching, and power regulation.
Explore the Vishay range of semiconductor thyristors and power modules available on EnvMart for all your industrial and power electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-VSKT250-16PBF has a maximum repetitive peak reverse voltage of 1600 V.
This model is rated for an average on-state current of 250 A.
It has a surge current rating of 8.9 kA, allowing it to handle transient high current loads effectively.
The maximum operating temperature for this module is 130°C, making it suitable for demanding industrial environments.
The peak on-state voltage is 1.44 V, ensuring efficient conduction during operation.
This module is packaged in a 7-pin MAGN-A-PAK configuration, designed for panel mounting.
The dimensions of this module are 115 mm in length, 50 mm in width, and 52 mm in height.
The maximum gate trigger current is 350 mA, providing reliable control over switching operations.
The holding current for this module is rated at 500 mA.
This module is designed without automotive standards and is suitable for general industrial and power supply uses.
This model requires panel mounting, ensuring stable installation in various equipment.
The Vishay VS-VSKT250-16PBF is manufactured in India.
