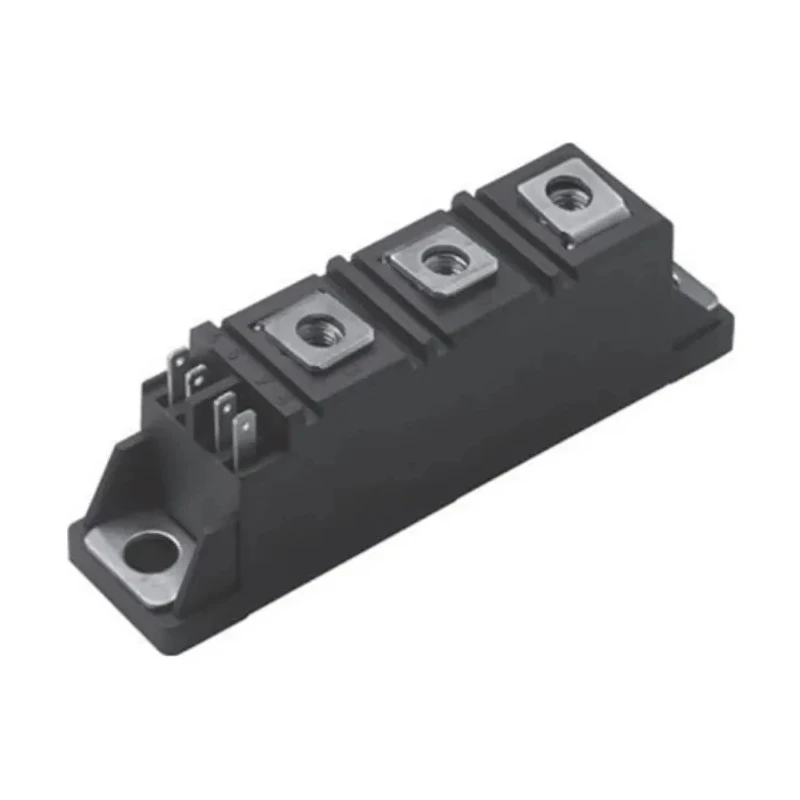

Vishay Thyristor Module 1600 V 2 kA 105 A 270 mA 1.8 V TO-240AA 7-Pin VS-VSKT105/16

Free Delivery in India | Lowest Global Shipping Charges

Vishay Thyristor Module 1600 V 2 kA 105 A 270 mA 1.8 V TO-240AA 7-Pin VS-VSKT105/16

Name: Vishay Thyristor Module 1600 V 2 kA 105 A 270 mA 1.8 V TO-240AA 7-Pin VS-VSKT105/16
Brand: Vishay
SKU: 135349
Price: 59.74 USD
Availability: InStock



Category Thyristor Module Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	30mm
Length	92mm
Model	VS-VSKT105/16
Width	22.6mm
Mount Type	Panel
Maximum Operating Temperature	130°C
Package Type	TO-240AA
Pin Count	7
Rated Average On-State Current Irms	105A
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	2kA
Maximum Gate Trigger Current Igt	270mA
Maximum Holding Current Ih	250mA
Maximum Gate Trigger Voltage Vgt	4V
Peak On-State Voltage	1.8V
Repetitive Peak Off-State Current	20mA

Key Features

Designed for high surge current ratings up to 2 kA.
Features a low peak on-state voltage of 1.8 V for efficient conduction.
Maximum gate trigger current is 270 mA with a holding current of 250 mA.
Suitable for panel mounting with an operating temperature up to 130°C.
Compact dimensions measuring 92 mm length, 30 mm height, and 22.6 mm width.
Encapsulated module with electrically isolated base plate for safety.
Ideal for applications in battery chargers, welders, and regulated power supplies.
Manufactured in India with robust performance characteristics.

Product Description

Vishay VS-VSKT105/16 Thyristor Module is a high-performance semiconductor device designed to control and switch high power in industrial and electronic applications. Rated for an average on-state current of 105 A and repetitive peak reverse voltage of 1600 V, this module is housed in a compact TO-240AA package with 7 pins, allowing easy integration into panel mounting systems. It features a surge current rating of 2 kA and a peak on-state voltage of just 1.8 V, ensuring efficient power handling with minimal losses.

This Thyristor Module includes a maximum gate trigger current of 270 mA and a holding current of 250 mA, supporting reliable switching operations. The maximum operating temperature of 130°C along with a robust encapsulated design and electrically isolated base plate ensures durability and safe operation under harsh industrial conditions.

Its compact physical dimensions (92 mm length, 22.6 mm width, and 30 mm height) facilitate installation in constrained spaces without compromising performance. The module is particularly suited for industrial applications such as battery chargers, welding equipment, plating systems, regulated power supplies, as well as temperature and speed control circuits where precise power modulation is essential.

Manufactured in India, the Vishay VS-VSKT105/16 provides a dependable and efficient solution for semiconductor switching needs in various industrial sectors. Its compliance with industry standards, despite no specific approvals mentioned, supports widespread applicability. The solid-state design with four alternating N and P layers makes it synonymous with Silicon-Controlled Rectifier (SCR) technology.

Designed for high surge current ratings up to 2 kA. Features a low peak on-state voltage of 1.8 V for efficient conduction. Maximum gate trigger current of 270 mA with a holding current of 250 mA. Panel mount type with compact and durable TO-240AA packaging.

Operates reliably up to 130°C operating temperature. Compact physical dimensions facilitate versatile installation. Encapsulated module offers electrical isolation for safety. Ideal for battery chargers, welders, and regulated power supplies.
