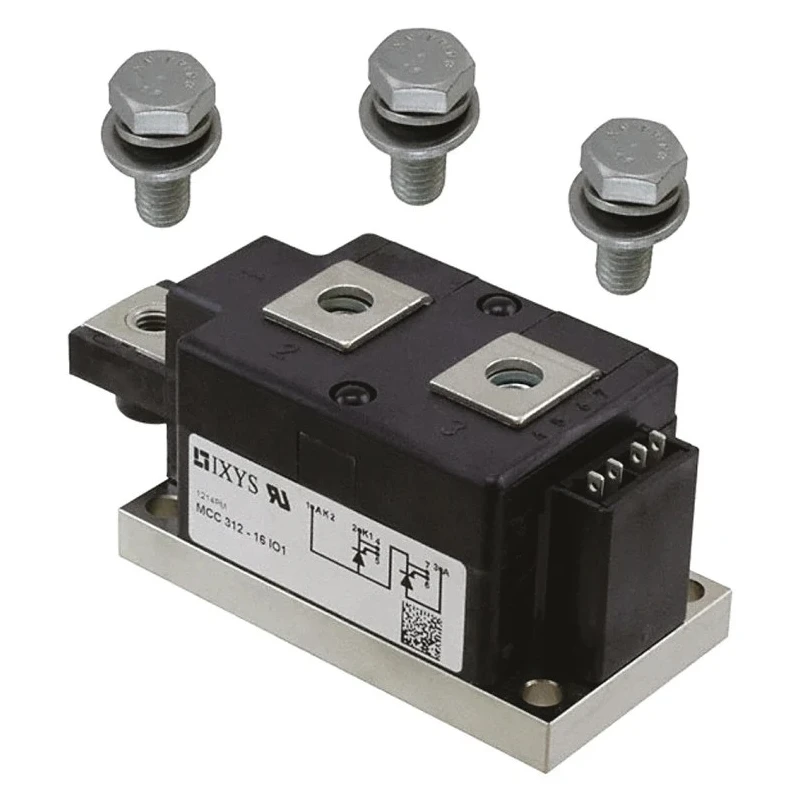

IXYS Dual Thyristor Module 1600 V, 320 A, 150 mA Gate Trigger Current, 10.1 kA Surge Current MCC312-16IO1
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | IXYS |
| Model | MCC312-16IO1 |
| Mount Type | Panel |
| Maximum Operating Temperature | 140°C |
| Package Type | Y1-CU |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 320A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 10.1kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.32V |
| Repetitive Peak Off-State Current | 40mA |
| IXYS MCC312-16IO1, Dual Thyristor Module 1600V, 320A 150mABrand | IXYS |
Key Features
- Features a panel mount type for easy integration.
- Maximum gate trigger current is 150 mA ensuring reliable triggering.
- Capable of handling surge current rating up to 10.1 kA.
- Operates efficiently within a temperature range of -40°C to 140°C.
- Utilizes SCR thyristor type within a Y1-CU package.
- Has a seven-pin configuration for secure connections.
- Maximum holding current and repetitive peak off-state current are both rated at 150 mA and 40 mA respectively.
- Peak on-state voltage is low at 1.32 V for reduced power loss.
Product Description
The IXYS MCC312-16IO1 dual thyristor module is a solid-state semiconductor designed for robust power switching applications, featuring a 1600 V repetitive peak reverse voltage (VDRM) and rated average on-state current (Irms) of 320 A. This SCR-based module comes in a Y1-CU package and is intended for panel mounting, making it suitable for use in battery chargers, welders, plating equipment, regulated power supplies, and temperature and speed control circuits.
Its maximum gate trigger current of 150 mA and holding current of 150 mA ensure precise control and reliable operation. The device can withstand surge currents up to 10.1 kA, safeguarding it against transient overloads and spikes. It supports operation across a wide temperature range from -40°C to 140°C. The low peak on-state voltage of 1.32 V minimizes power dissipation for efficient performance.
This module incorporates seven pins for robust electrical connections and lacks automotive certification but holds UL recognition, endorsing its reliability for industrial use. The device is manufactured in the Philippines and is ideal for applications demanding high current and voltage tolerance in industrial, laboratory, construction, HVAC, manufacturing, and power supply contexts.
Panel mount dual thyristor module with high surge current capacity. Operates effectively in wide temperature extremes to -40° to 140°C. Encapsulated with isolated base plate for safety and thermal management. Compatible with industrial applications requiring reliable power switching.
Recognized by UL standards ensuring quality and compliance. Suitable for regulated power supplies, battery chargers, and motor controls. Seven-pin configuration provides secure electrical connectivity. Constructed with SCR technology ensuring bistable switching.
Manufactured in the Philippines, ensuring high standards of production.
This IXYS MCC312-16IO1 dual Thyristor Module is available for various industrial applications requiring controlled power management and is a reliable choice for maintenance and new system deployments. Browse the Electronics & Electricals semiconductor category on EnvMart for related modules and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage (VDRM) of this thyristor module is 1600 V.
The rated average on-state current (Irms) for this model is 320 A.
It has a surge current rating of 10.1 kA, allowing it to handle transient overloads effectively.
This module operates efficiently within a temperature range of -40°C to 140°C.
The thyristor module features a seven-pin configuration for secure electrical connections.
It utilizes SCR (Silicon Controlled Rectifier) thyristor technology.
The maximum gate trigger current (Igt) is 150 mA, ensuring reliable triggering.
The peak on-state voltage is 1.32 V, which helps minimize power loss.
The maximum holding current (Ih) is rated at 150 mA.
This module comes in a Y1-CU package type, designed for panel mounting.
Yes, the device holds UL recognition, endorsing its reliability for industrial use.
It is suitable for applications such as battery chargers, welders, plating equipment, and regulated power supplies.
