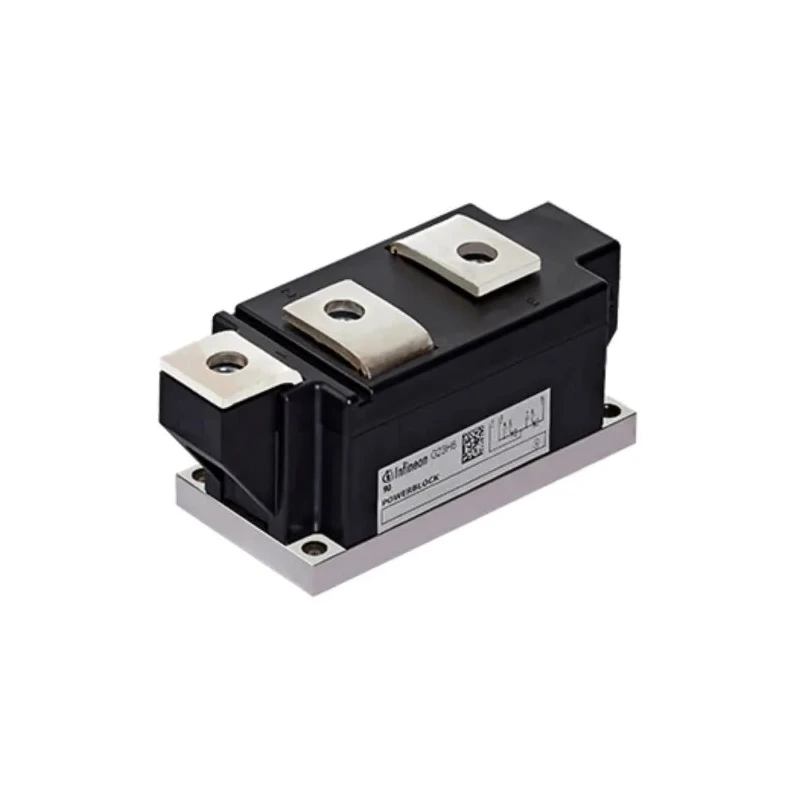

Infineon Thyristor Module 1800 V 23.5 kA, 775 A Rated Current, Gate Trigger 2 V 250 mA TD780N18KOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TD780N18KOFHPSA1 |
| Series | TT780N18KOF |
| Maximum Operating Temperature | 135°C |
| Rated Average On-State Current Irms | 775A |
| Repetitive Peak Reverse Voltage VDRM | 1800V |
| Surge Current Rating | 23.5kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.35V |
| Repetitive Peak Off-State Current | 120mA |
Key Features
- Rated average on-state current Irms of 775 A provides high power handling.
- Repetitive peak reverse voltage of 1800 V ensures reliable performance.
- Surge current rating of 23.5 kA accommodates transient overloads.
- Gate trigger current of 250 mA and gate trigger voltage of 2 V for precise activation.
- Maximum operating temperature rated up to 135°C for thermal endurance.
- Features a peak on-state voltage of 1.35 V for efficient conduction.
- Repetitive peak off-state current rated at 120 mA to maintain stability.
- Designed for chassis mounting with a 60 mm base plate for secure installation.
Product Description
The Infineon TD780N18KOFHPSA1 Thyristor Module is a high-performance semiconductor component designed for industrial and power electronics applications. It operates with a voltage rating of 1800 V and can withstand a surge current of 23.5 kA, making it suitable for managing high power loads in various systems.
With a rated average on-state current of 775 A, this module reliably handles substantial current in demanding environments. The gate trigger specifications include a voltage of 2 V and a current of 250 mA, allowing for efficient and accurate switching control.
This module supports continuous operation at temperatures up to 135°C, ensuring long-term durability under thermal stress. A peak on-state voltage of 1.35 V enhances conduction efficiency, while repetitive peak off-state current rated at 120 mA preserves stability during operation.
The robust design includes chassis mounting capability with a 60 mm base plate, facilitating easy integration into industrial assemblies. This module complies with no specific standards or automotive approvals, focusing on core performance characteristics and reliability.
Rated average on-state current Irms of 775 A provides high power handling. Repetitive peak reverse voltage of 1800 V ensures reliable performance. Surge current rating of 23.5 kA accommodates transient overloads. Gate trigger current of 250 mA and gate trigger voltage of 2 V for precise activation.
Maximum operating temperature up to 135°C for thermal endurance. Peak on-state voltage of 1.35 V for efficient conduction. Repetitive peak off-state current rated at 120 mA for stable operation. Chassis mount design with 60 mm base plate for secure installation.
This Infineon Thyristor Module is ideal for use in industrial power control, manufacturing equipment, and electrical distribution systems. It is engineered to improve production efficiency and withstand rigorous operating conditions in electrical and electronic infrastructure.
Explore further within the Electronics & Electricals category on EnvMart for complementary semiconductor modules and power components from Infineon and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current (Irms) of this thyristor module is 775 A, allowing it to handle high power loads effectively.
This model can operate at a maximum temperature of 135°C, ensuring durability under thermal stress.
The surge current rating of this thyristor module is 23.5 kA, accommodating transient overloads in various applications.
The peak on-state voltage for this module is 1.35 V, which contributes to its conduction efficiency.
The repetitive peak reverse voltage (VDRM) rating for this thyristor module is 1800 V, ensuring reliable performance in high voltage applications.
The gate trigger voltage is 2 V and the gate trigger current is 250 mA, allowing for precise activation of the module.
This thyristor module is designed for chassis mounting and features a 60 mm base plate for secure installation.
The maximum holding current (Ih) for this model is 300 mA, which helps maintain stability during operation.
The repetitive peak off-state current for this module is rated at 120 mA, ensuring stable operation.
This module is typically used in industrial power control, manufacturing equipment, and electrical distribution systems.
This thyristor module belongs to the TT780N18KOF series, which is designed for high-performance applications.
The country of origin for this thyristor module is India.
