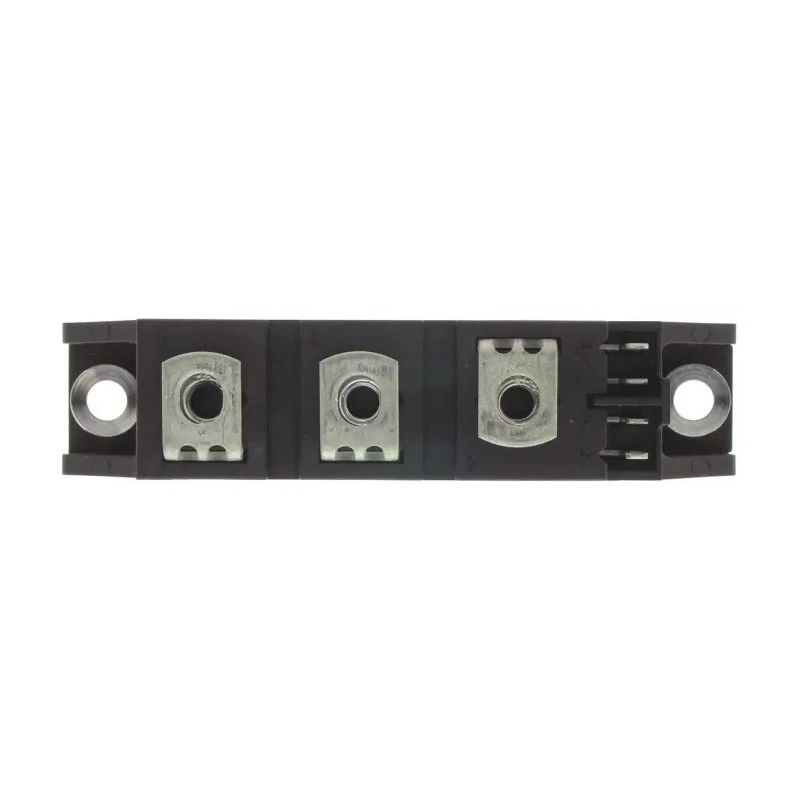

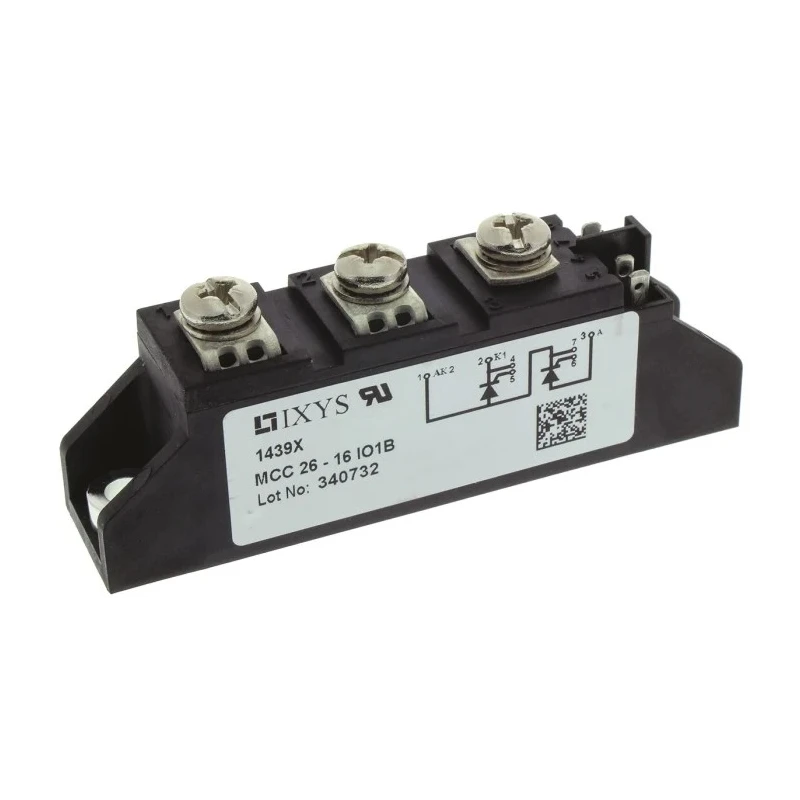

IXYS Dual Thyristor Module TO-240AA 7-Pin 1600 V 560 A 32 A MCC26-16IO1B

Free Delivery in India | Lowest Global Shipping Charges

IXYS Dual Thyristor Module TO-240AA 7-Pin 1600 V 560 A 32 A MCC26-16IO1B

Name: IXYS Dual Thyristor Module TO-240AA 7-Pin 1600 V 560 A 32 A MCC26-16IO1B
Brand: IXYS
SKU: 115679
Price: 48.79 USD
Availability: InStock



Category Thyristor Module Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	30mm
Length	92mm
Model	MCC26-16IO1B
Width	20.8mm
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	TO-240AA
Pin Count	7
Rated Average On-State Current Irms	32A
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	560A
Maximum Gate Trigger Current Igt	100mA
Maximum Holding Current Ih	200mA
Maximum Gate Trigger Voltage Vgt	1.5V
Peak On-State Voltage	1.64V
Repetitive Peak Off-State Current	3mA

Key Features

This module features a package type TO-240AA and has 7 pins.
It supports a repetitive peak reverse voltage of 1600 V and surge current rating of 560 A.
The maximum gate trigger current is 100 mA, and the holding current is 200 mA.
It can operate up to a maximum temperature of 125°C.
Physical dimensions are 92 mm length, 30 mm height, and 20.8 mm width.
Peak on-state voltage is rated at 1.64 V for efficient conduction.
The device does not have automotive standards or approvals, making it suitable for industrial and electronic equipment.

Product Description

IXYS MCC26-16IO1B dual Thyristor Module is an electronic device designed for high-power switching applications. It operates at a repetitive peak reverse voltage of 1600 V with a surge current rating of 560 A, making it highly suitable for demanding industrial control circuits.

Constructed with a TO-240AA package type and equipped with 7 pins, this module is designed for panel mounting, ensuring easy integration into electronic assemblies. It features a low peak on-state voltage of 1.64 V to minimize power loss during conduction.

The module requires a maximum gate trigger current of 100 mA and can sustain a holding current up to 200 mA. It is rated for a maximum operating temperature of 125°C, allowing use in a broad range of industrial, power electronics, and control applications such as battery chargers, welders, plating equipment, regulated power supplies, and speed or temperature control circuits.

Physically, the component measures 92 mm in length, 30 mm in height, and 20.8 mm in width, a compact form factor for high-powered modules. This module has no automotive standard certification and currently no other listed approvals.

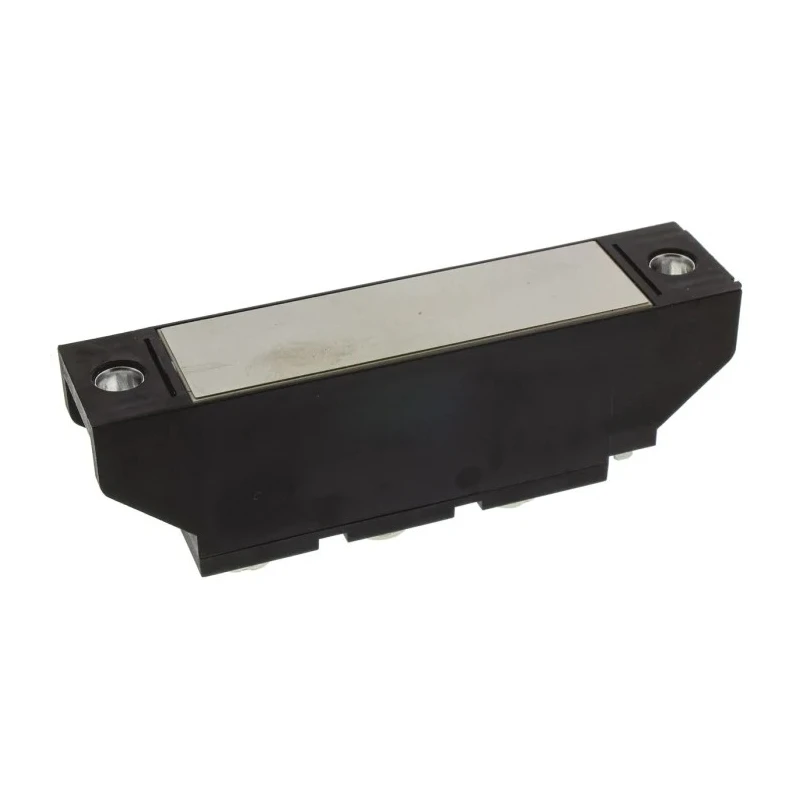

It includes encapsulated dual series thyristors with electrically isolated base plate for enhanced safety and performance. Typical use cases include industrial automation, power control, laboratory power supplies, and HVAC systems.

The compact design enables effective heat dissipation and reliable operation under thermal stress.

This product is distributed as new and designed for reliable performance in high current industrial environments. Explore more semiconductor modules and related electronic components at EnvMart for integrated system solutions.
