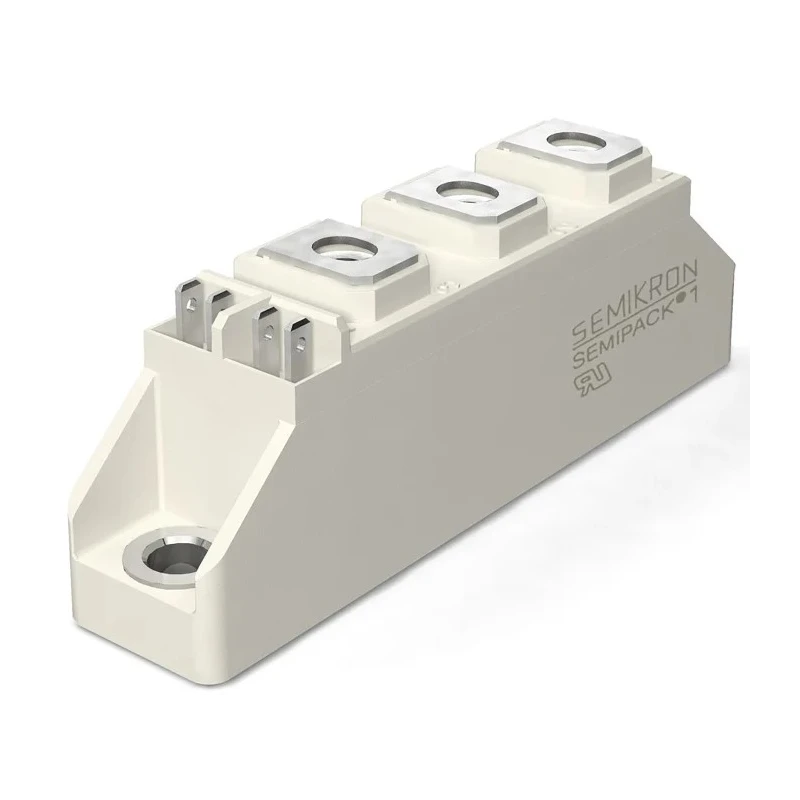

Semikron Danfoss Diode/Thyristor Module SCR 1600 V, 106 A, 150 mA Gate Trigger, 2.25 kA Surge Current SKKH 106/16 E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Model | SKKH 106/16 E |
| Mount Type | Panel |
| Maximum Operating Temperature | 130°C |
| Package Type | SEMIPACK1 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 106A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 2.25kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 250mA |
| Maximum Gate Trigger Voltage Vgt | 3V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 20mA |
Key Features
- Rated average on-state current of 106 A ensures handling of significant current loads.
- Repetitive peak reverse voltage rating of 1600 V provides excellent voltage withstand capability.
- Surge current rating of 2.25 kA supports high transient events.
- Maximum gate trigger current is 150 mA for reliable switching activation.
- Five pin count facilitates straightforward panel mounting and connections.
- Operating temperature range spans from -40°C to a maximum of 130°C for versatile environmental deployment.
- Peak on-state voltage is low at 1.65 V, enhancing efficiency in conduction.
- Maximum gate trigger voltage capped at 3 V ensures controlled gate activation.
Product Description
Semikron Danfoss SKKH 106/16 E is a high-quality Diode/Thyristor Module (SCR) designed to deliver reliable power control in demanding industrial electronics applications. This SEMIPACK 1 series module is a solid-state device, functioning as a Silicon-Controlled Rectifier (SCR) with a rated average on-state current of 106 A and a repetitive peak reverse voltage of 1600 V.
The module features a surge current rating up to 2.25 kA allowing it to withstand transient overloads typically seen in battery chargers, welding machines, regulated power supplies, as well as temperature and speed control circuits. Its encapsulated design includes an electrically isolated base plate facilitating safe panel mounting with a standard five-pin configuration.
Operating reliably over a wide temperature range from -40°C to 130°C, it supports critical industrial environments. The device maintains conduction with a peak on-state voltage of only 1.65 V, helping improve overall system efficiency. The gate trigger maximum current and voltage of 150 mA and 3 V respectively ensure swift and precise activation of the module.
This module does not have any specific industry standards or automotive certifications but is UL recognized ensuring quality compliance. Semikron Danfoss SKKH 106/16 E serves crucial roles in applications requiring robust power switching such as battery chargers, welding equipment, plating equipment, and various controlled power systems.
Its robust specifications and rugged construction make it suitable for use in industrial power electronics, manufacturing controls, and electronic component manufacturing sectors. Rated average on-state current: 106 A. Repetitive peak reverse voltage: 1600 V.
Surge current rating: 2.25 kA. Maximum gate trigger current: 150 mA. Pin count: 5. Operating temperature range: -40°C to 130°C. Peak on-state voltage: 1.65 V. Maximum gate trigger voltage: 3 V. Maximum holding current: 250 mA.
Encapsulated module with electrically isolated base plate for panel mounting. Explore the Electronics & Electricals category on EnvMart for power modules and semiconductor devices suited to a wide range of industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this module is 106 A, allowing it to handle significant current loads effectively.
The repetitive peak reverse voltage rating is 1600 V, providing excellent voltage withstand capability for various applications.
It has a surge current rating of 2.25 kA, enabling it to withstand high transient events typically encountered in industrial applications.
The maximum gate trigger current for this module is 150 mA, ensuring reliable activation during operation.
This model operates within a temperature range of -40°C to 130°C, making it suitable for various environmental conditions.
It features a five-pin count, facilitating straightforward panel mounting and connections.
The peak on-state voltage is low at 1.65 V, which helps enhance efficiency in conduction during operation.
The maximum gate trigger voltage is capped at 3 V, ensuring controlled activation of the gate.
This module is a Silicon-Controlled Rectifier (SCR), designed for reliable power control in industrial applications.
The maximum holding current is 250 mA, which is important for maintaining the conduction state of the device.
The package type is SEMIPACK1, which is designed for efficient thermal management and compact installation.
The country of origin for this module is India, indicating its manufacturing location.
