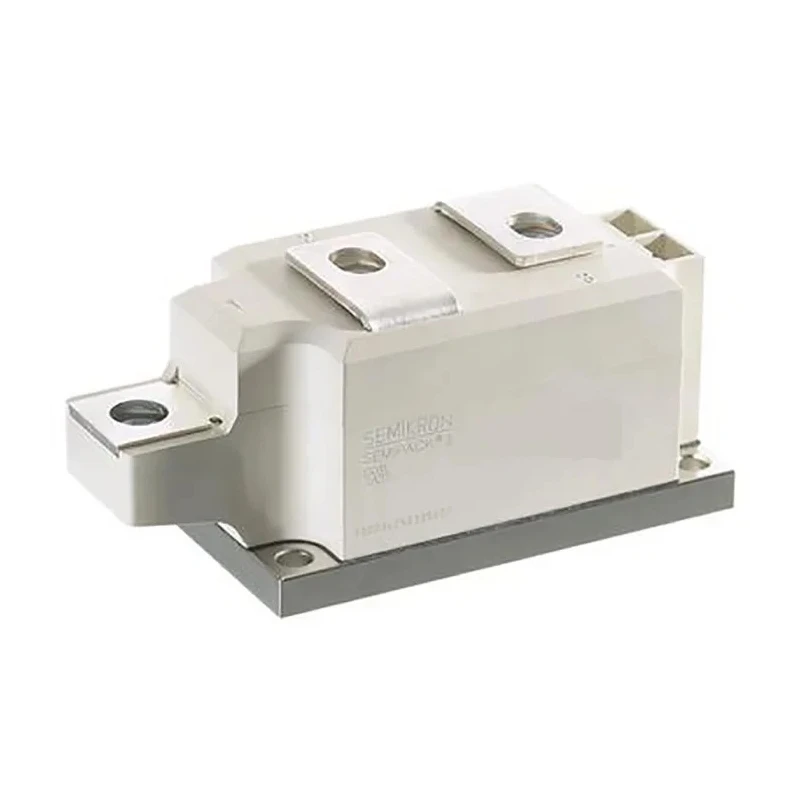

Semikron Danfoss 1600 V 380 A Diode Rectifier 2-Pin Panel Mount SEMIPACK3 SKKE 380/16

Semikron Danfoss SKKE 380/16 is a high-performance single diode rectifier designed for industrial and electronic power applications. This 2-pin diode, housed in a SEMIPACK3 package, offers a maximum continuous forward current rating of 380 A and can withstand peak reverse repetitive voltages up to 1600 V, making it suitable for high-current rectifier circuits requiring rugged and reliable components.

The module features an aluminium oxide ceramic isolated metal baseplate to ensure excellent heat transfer and maintain thermal stability during operation. Its robust design allows operation over a wide temperature range from -40°C minimum to 150°C maximum, catering to demanding industrial environments. The peak non-repetitive forward surge current rating of 11 kA provides resilience against transient overloads typically encountered in power conversion systems.

With precise engineering, the diode has a maximum forward voltage drop of 1.25 V which helps reduce power losses during conduction and improves overall system efficiency. The compact dimensions of 115 mm length, 52 mm height, and 50 mm width facilitate easy integration into power assemblies with limited space.

Manufactured in Slovakia, the SKKE 380/16 complies with UL recognitions (E63532) though it lacks automotive-specific certifications, making it ideal for industrial electronics, power supplies, and control systems where reliable high-current rectification is essential.

This diode rectifier is commonly deployed in industrial, manufacturing, power electronics, and electrical engineering applications requiring durable components for high power rectification and efficient heat dissipation.

Designed for high-current rectifier applications offering reliable performance. Panel mount type with a robust SEMIPACK3 package construction. Maximum continuous forward current of 380 A supports demanding industrial loads.

Peak reverse repetitive voltage rating of 1600 V ensures voltage endurance. Compact dimensions with 115 mm length, 52 mm height, and 50 mm width for efficient space usage. Operates reliably in temperatures ranging from -40°C to 150°C maximum.

Features a peak non-repetitive forward surge current of 11 kA for transient conditions. Maximum forward voltage of 1.25 V minimizes conduction losses. Constructed with precious metal contacts for enhanced reliability and heat transfer efficiency.

Manufactured in Slovakia with no automotive-specific approval. Explore more semiconductor diodes and rectifiers to meet your industrial and electronic design requirements on EnvMart.
