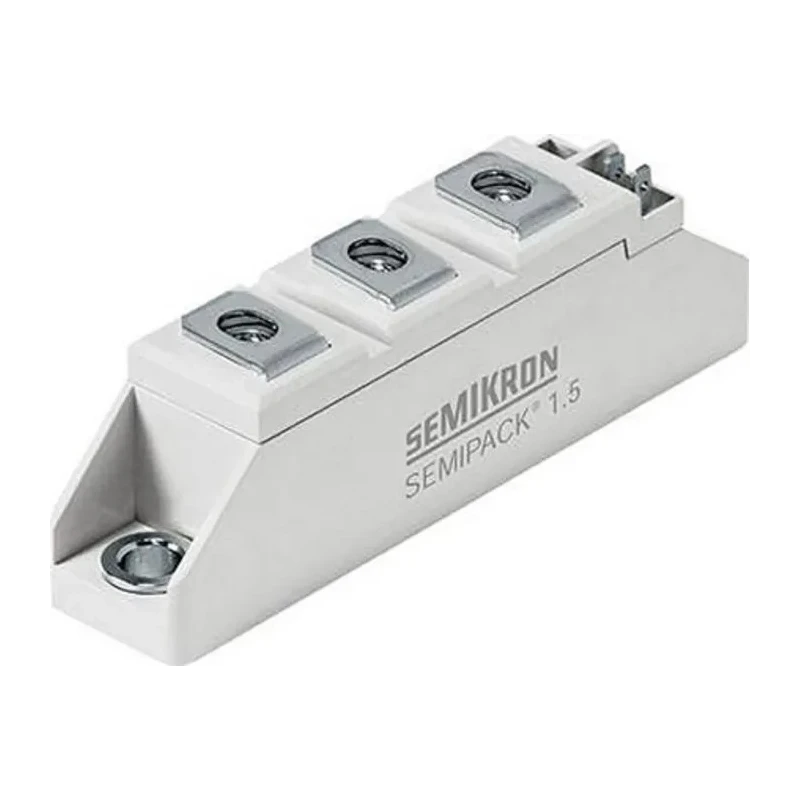

Semikron Danfoss 1600 V 67 A General Purpose 7-Pin SEMIPACK1 Diode SKKD 100/16

Semikron Danfoss SKKD 100/16 is a high-performance general purpose diode designed for industrial and electronic component applications requiring robust rectifier solutions. It features a 1600 V peak reverse repetitive voltage and a maximum continuous forward current rating of 67 A, making it suitable for a wide range of power electronics uses.

This diode module uses a 7-pin SEMIPACK1 package with a panel mount type, ensuring secure and reliable mounting for demanding environments. Its compact size with dimensions of 150 mm length, 60 mm width, and 52 mm height allows easy integration into electronic assemblies. The device is built on an aluminium oxide ceramic isolated metal baseplate which provides excellent heat transfer to maintain operational efficiency and prolong device lifespan.

Operating temperature ranges from -40°C to 135°C enable this diode to perform reliably under harsh thermal conditions. It has a peak non-repetitive forward surge current rating of 2500 A, allowing it to tolerate transient surge currents often encountered in power electronics. The maximum forward voltage of 1.35 V helps in reducing conduction losses, thereby increasing system efficiency.

These diodes are UL recognized under the approval E63532 and are manufactured in Slovakia, reflecting adherence to international quality standards. The 7-pin configuration supports compatibility with SEMIPACK1 mounting systems widely used in industrial power electronics.

Designed for general purpose rectifier applications in electronic circuits. Mount type is panel, facilitating secure and efficient installation. Operates reliably within minimum and maximum temperatures of -40°C to 135°C.

Compact dimensions with length 150 mm, width 60 mm, and height 52 mm. Features a low maximum forward voltage of 1.35 V to minimize power losses. Peak non-repetitive forward surge current of 2500 A for transient condition handling.

7-pin configuration for compatibility with SEMIPACK1 mounting. Constructed with aluminium oxide ceramic isolated metal baseplate to ensure efficient heat transfer. Manufactured in Slovakia ensuring quality standards. UL recognized with approval code E63532.

This diode module is ideal for a broad spectrum of industrial applications including power supplies, inverters, rectifiers, and other devices requiring robust and efficient semiconductor diodes. Its reliable operation under varied temperature ranges and current surges suits it well for construction, manufacturing, and electronic equipment sectors.
