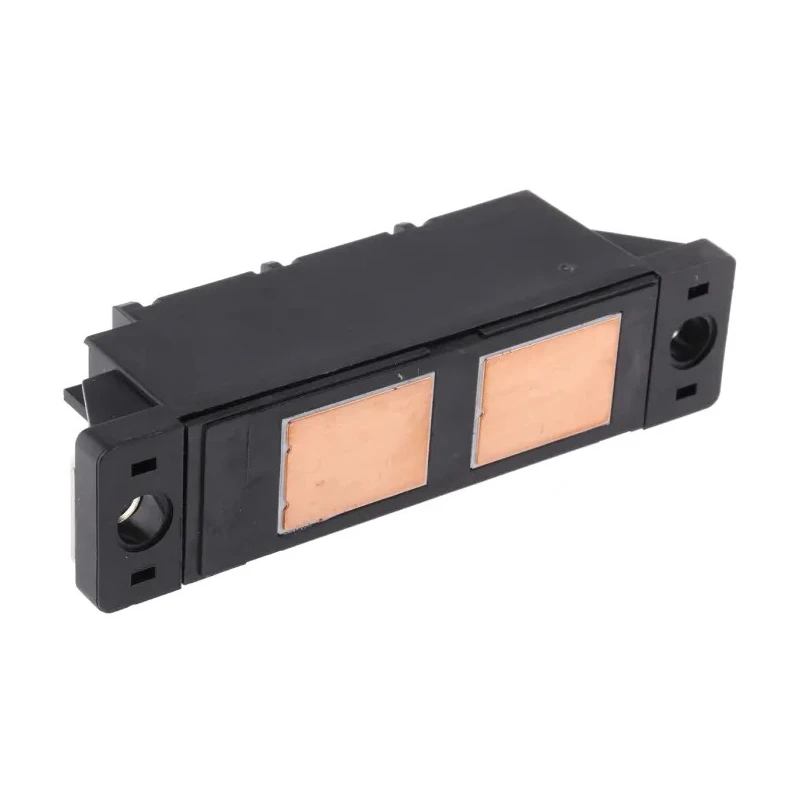

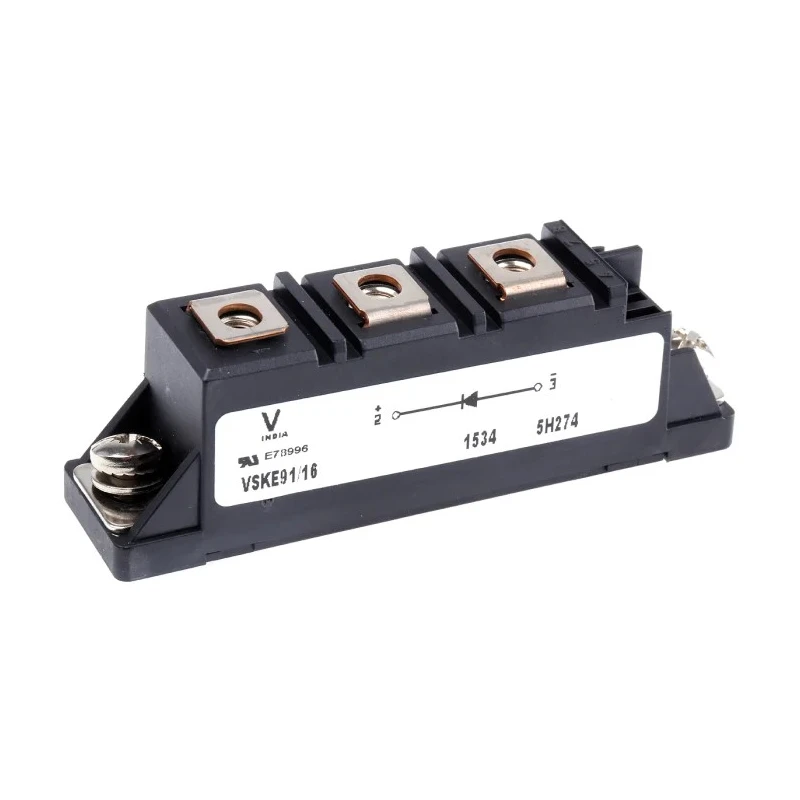

Vishay Recovery Diode 1600 V 100 A 2-Pin TO-240 Panel Mount VS-VSKE91/16
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKE91/16 |
| Width | 22.6mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Single |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.1kA |
| Maximum Forward Voltage Vf | 1.55V |
Key Features
- Supports a maximum continuous forward current of 100 amperes.
- Peak reverse repetitive voltage rating of 1600 volts ensures robust blocking capability.
- Standard recovery diode designed for efficient power rectification.
- Compact TO-240 package with panel mounting for reliable installation.
- Operates under temperatures ranging from -40°C to 150°C.
- Features a peak non-repetitive forward surge current of 2.1 kiloamperes.
- Maximum forward voltage drop of 1.55 volts enhances energy efficiency.
- Two-pin configuration simplifies connectivity in power circuits.
Product Description
Vishay VS-VSKE91/16 is a reliable standard recovery diode offering a peak reverse voltage of 1600 V and a continuous forward current rating of 100 A. Packaged in a TO-240 form factor with panel mounting, it is engineered for high-efficiency power rectification in industrial and commercial electronic systems.
This diode features a single diode configuration optimized for recovery rectifiers, capable of handling peak non-repetitive forward surge currents up to 2.1 kA, making it suitable for transient load conditions. The device maintains operation within a wide temperature range from -40°C to 150°C, ensuring durability in demanding environments.
The maximum forward voltage of 1.55 V facilitates minimal power loss during conduction, further improving energy efficiency of power circuits. Its compact physical dimensions - 92 mm in length, 35 mm in height, and 22.6 mm in width - allow convenient integration into existing panel mount assemblies.
Vishay’s VS-VSKE91/16 diode is suitable for applications including power supplies, industrial motor drives, renewable energy systems, and any electrical system requiring robust recovery rectification with high current and voltage capabilities.
Supports a maximum continuous forward current of 100 amperes. Peak reverse repetitive voltage rating of 1600 volts ensures robust blocking capability. Standard recovery Diode designed for efficient power rectification. Compact TO-240 package with panel mounting for reliable installation.
Operates under temperatures ranging from -40°C to 150°C. Features a peak non-repetitive forward surge current of 2.1 kiloamperes. Maximum forward voltage drop of 1.55 volts enhances energy efficiency. Two-pin configuration simplifies connectivity in power circuits.
Physical dimensions: 92 mm length, 35 mm height, and 22.6 mm width. Ideal for power electronics, industrial rectification, and high current applications. Explore the full range of Vishay semiconductor components to support your industrial, manufacturing, and electrical engineering projects here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-VSKE91/16 diode is 100 amperes.
This model has a peak reverse repetitive voltage rating of 1600 volts, ensuring robust blocking capability.
The physical dimensions of the TO-240 package are 92 mm in length, 35 mm in height, and 22.6 mm in width.
The maximum forward voltage drop of the Vishay VS-VSKE91/16 diode is 1.55 volts, which enhances energy efficiency during operation.
It features a peak non-repetitive forward surge current rating of 2.1 kiloamperes, suitable for transient load conditions.
This diode operates within a temperature range of -40°C to 150°C, making it suitable for demanding environments.
The Vishay VS-VSKE91/16 diode has a two-pin configuration, simplifying connectivity in power circuits.
This model is a standard recovery diode designed for efficient power rectification in electronic systems.
The diode configuration of the Vishay VS-VSKE91/16 is a single diode, optimized for recovery rectification.
The peak reverse current rating for this diode is 10 milliamperes.
This diode utilizes a panel mount type for reliable installation.
This diode is suitable for applications including power supplies, industrial motor drives, and renewable energy systems.
