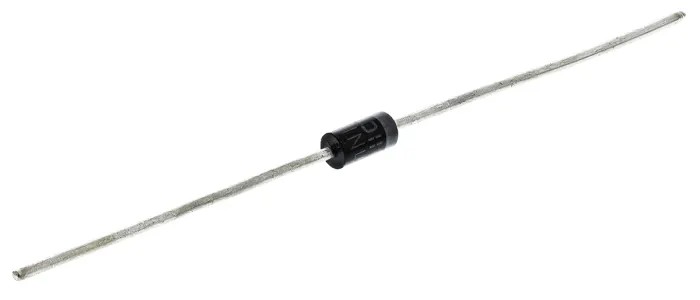

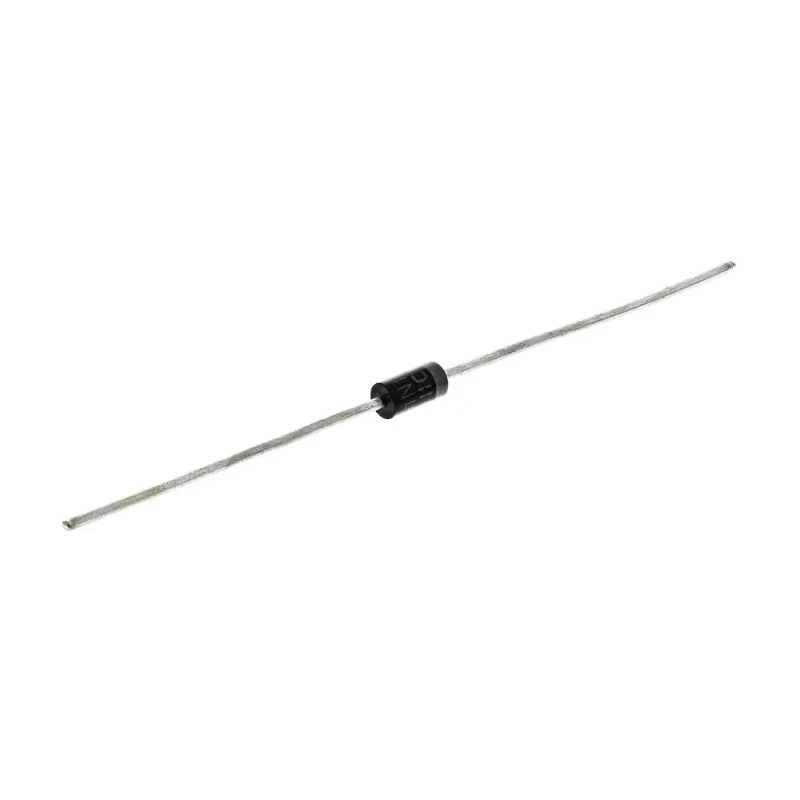

DiodesZetex Switching Diode, Single, 1 A, 2-Pin, 200 V, DO-41 Package 1N4003-T

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Switching Diode, Single, 1 A, 2-Pin, 200 V, DO-41 Package 1N4003-T

Name: DiodesZetex Switching Diode, Single, 1 A, 2-Pin, 200 V, DO-41 Package 1N4003-T
Brand: DiodesZetex
SKU: 104386
Price: 0.05 USD
Availability: InStock



Category Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Diameter	2.72mm
Brand	DiodesZetex
Height	2.72mm
Length	5.21mm
Model	1N4003-T
Width	5.21mm
Mount Type	Through Hole
Series	1N4001-1N4007
Maximum Operating Temperature	150°C
Package Type	DO-41
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, Lead Free Finish
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1V
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	200V
Fairchild 200V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4003Brand	Fairchild Semiconductor

Key Features

This silicon junction diode supports a peak forward surge current of 30 A for high transient conditions.
It features a maximum forward voltage of 1 V ensuring efficient switching performance.
Operating temperature ranges from -65°C to 150°C suitable for diverse environments.
The device measures 5.21 mm in length and 2.72 mm in diameter, compact for PCB mounting.
It is compliant with RoHS and features a lead-free finish for environmental safety.
The diode is ideal for use in electronic circuits requiring rectification and switching.
Manufactured to series standards 1N4001-1N4007 ensuring compatibility with various applications.

Product Description

DiodesZetex 1N4003-T is a high-performance switching diode designed for use in electronic circuits requiring reliable rectification and protection. It supports a maximum forward current of 1 A and a peak reverse repetitive voltage of 200 V, making it suitable for low voltage switching applications across industrial, electrical, and electronic equipment.

The diode features a silicon junction construction with a through-hole mount type in a DO-41 package. Its 2-pin configuration facilitates easy PCB mounting and connection. Measuring 5.21 mm in length and 2.72 mm in diameter, it is compact and efficient for circuit integration.

This diode withstands harsh environmental conditions with a temperature operating range from -65°C to 150°C and a surge current capacity of 30 A peak non-repetitive forward current, protecting circuits against transient spikes. Its maximum forward voltage drop of 1 V ensures minimal power loss during operation.

The product complies with RoHS standards with a lead-free finish, supporting environmental regulations and sustainability efforts. Ideal for use in power converters, switching circuits, and rectifier applications, the 1N4003-T diode offers robust electrical characteristics suitable for diverse commercial and industrial electronics.

This diode delivers reliable switching performance with a maximum forward current of 1 A. Capable of handling surge currents up to 30 A for transient events. Operates efficiently from -65°C to 150°C in demanding conditions.

Designed in a durable DO-41 through-hole package for ease of use on PCBs. Compliant with RoHS and has a lead-free construction for eco-friendly usage.

Commonly applied in industrial automation, power supply designs, and electronic manufacturing, this Diode ensures circuit integrity and performance. For more precision semiconductor components and related products, browse the Electronics & Electricals semiconductor section at EnvMart.
