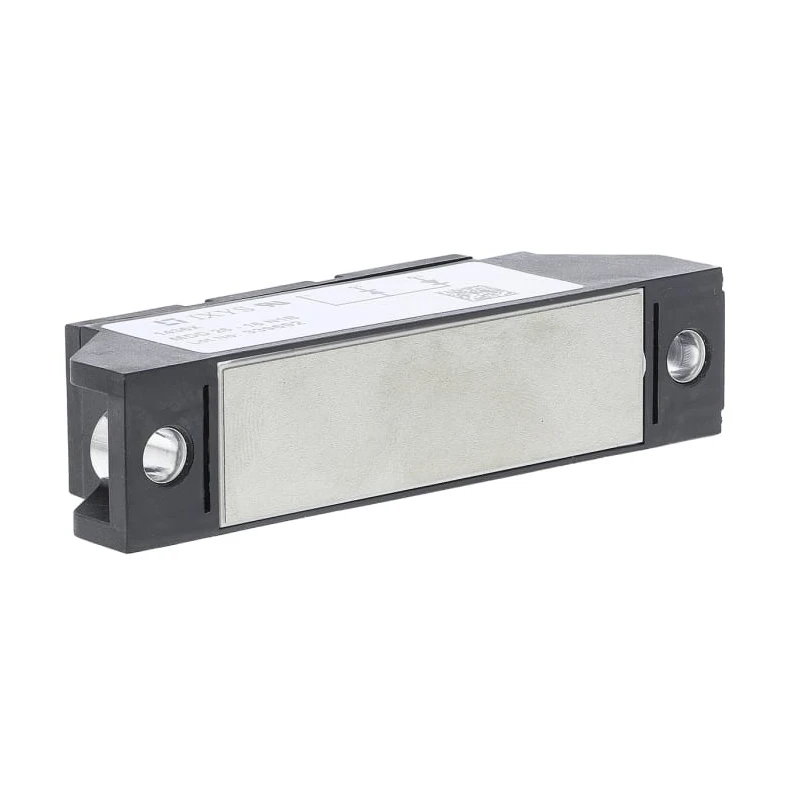

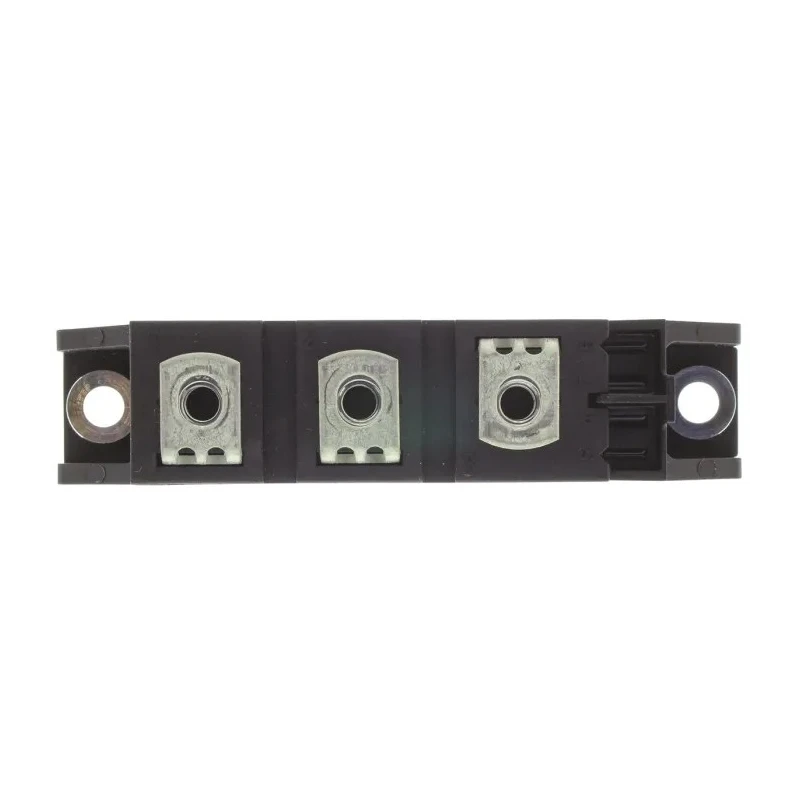

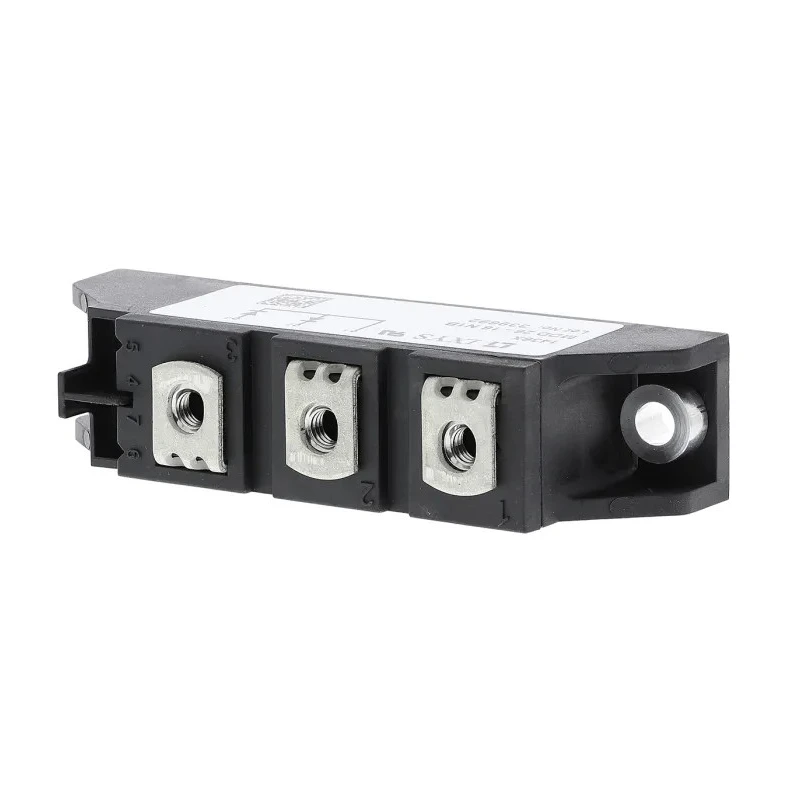

IXYS General Purpose Diode Module 1600V 36A TO-240 Panel Mount MDD26-16N1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 92mm |
| Model | MDD26-16N1B |
| Width | 20.8mm |
| Mount Type | Panel |
| Series | MDD26 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 36A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 700A |
| Maximum Forward Voltage Vf | 1.38V |
Key Features
- Designed for panel mounting with a TO-240 package ensuring secure installation.
- Rated for a peak reverse repetitive voltage of 1600V for reliable performance in industrial circuit protection and rectification.
- Supports maximum continuous forward current of 36A suitable for heavy-duty operations.
- Dual diode module configuration provides versatile rectification capabilities in demanding applications.
- Wide operating temperature range from -40°C to 150°C suits challenging environmental conditions.
- Features a peak non-repetitive forward surge current capacity of 700A.
- Compact dimensions of 92mm length, 20.8mm width, and 30mm height enable efficient integration into electrical assemblies.
Product Description
The IXYS MDD26-16N1B is a high-performance general purpose diode module engineered for industrial, power electronics, and laboratory rectifier applications. This module features two diodes in a series configuration, housed in a durable TO-240 package for secure panel mounting.
Operating at a maximum repetitive reverse voltage of 1600V and supporting a continuous forward current rating of 36A, the MDD26-16N1B delivers robust switching capabilities for demanding environments. Its dual diode design enables advanced rectification and protection roles in power conversion circuits, battery charging systems, and inverter assemblies.
The component is optimized for high surge events, supporting a peak forward surge current of up to 700A, and ensures low forward voltage drop (maximum 1.38V) to enhance efficiency. With a broad operating temperature range of -40°C to 150°C, it remains stable and reliable across a wide scope of industrial scenarios, including manufacturing equipment, automation systems, and high-voltage rectifiers.
Installation is made easy through panel mount compatibility, and the compact TO-240 form factor (92mm x 20.8mm x 30mm) allows streamlined integration in power cabinets and assemblies. Three pin contacts enable straightforward electrical connectivity.
High-voltage rectification and circuit protection in industrial facilities. Reliable power conversion for laboratory testing instruments. Applicable in renewable energy, battery chargers, and inverter circuitry. Stable performance in construction, manufacturing, and HV power control.
Explore more industrial semiconductor solutions in the Diode and Rectifier category from IXYS on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IXYS MDD26-16N1B has a peak reverse repetitive voltage rating of 1600V.
This diode module supports a maximum continuous forward current of 36A.
It can handle a peak non-repetitive forward surge current of up to 700A.
The dimensions are 92mm in length, 20.8mm in width, and 30mm in height.
The operating temperature range is from -40°C to 150°C.
It is designed for panel mounting, utilizing a TO-240 package.
This model features three pin contacts for electrical connectivity.
The diode configuration is a series setup, allowing versatile rectification capabilities.
The maximum forward voltage drop is 1.38V.
It is applicable in high-voltage rectification, power conversion circuits, battery charging systems, and inverter assemblies.
The peak reverse current is rated at 10mA.
The country of origin for this diode module is India.
