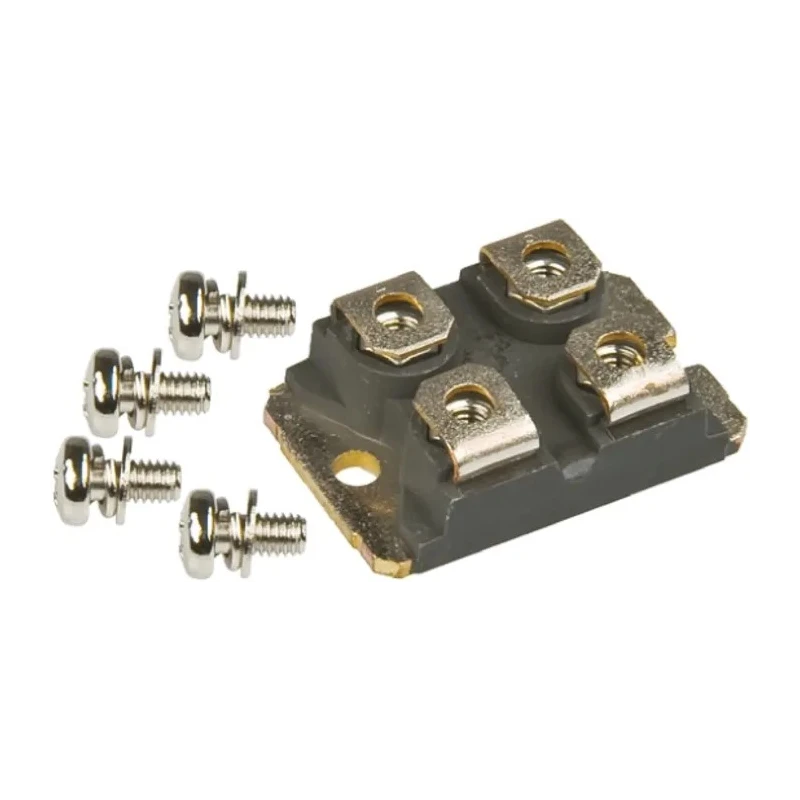

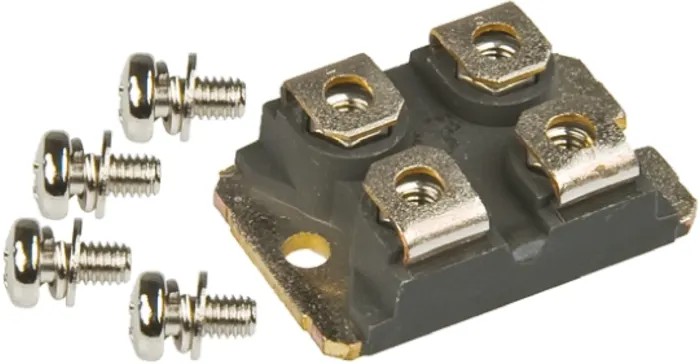

IXYS 100 V 80 A Schottky Diode 4-Pin SOT-227 DSS2X41-01A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.6mm |
| Length | 38.2mm |
| Model | DSS2X41-01A |
| Width | 25.07mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL 94V-0, IEC 60747, RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Isolated |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 450A |
| Maximum Forward Voltage Vf | 700mV |
| STMicroelectronics 45 V 120 A Diode Schottky 4-Pin ISOTOP STPS12045TVBrand | STMicroelectronics |
Key Features
- Maximum continuous forward current is 80 A for high power handling.
- Rated peak reverse repetitive voltage is 100 V to ensure voltage tolerance.
- Diode has a low forward voltage drop of 700 mV for efficiency.
- Operating temperature range from -40°C to 150°C supports harsh environments.
- Peak non-repetitive forward surge current capability is 450 A for transient robustness.
- Isolated diode configuration enables easy panel mounting.
- Conforms to UL 94V-0 flammability, IEC 60747, and RoHS standards.
- Pin count is 4 providing versatile connectivity.
Product Description
The IXYS DSS2X41-01A is a high-performance Schottky diode designed for demanding power electronic applications. This diode supports a maximum continuous forward current of 80 amperes and a peak reverse repetitive voltage rating of 100 volts, making it suitable for robust power rectification tasks.
Featuring a Schottky barrier structure, it provides a low forward voltage drop of approximately 700 millivolts, enhancing overall circuit efficiency by minimizing power losses. The device supports a wide operating temperature range from -40°C to 150°C, allowing it to operate reliably in harsh industrial and commercial environments.
The package type is SOT-227, with physical dimensions of 38.2 mm length, 25.07 mm width, and 9.6 mm height, and it includes four pins for electrical interfacing. Its isolated diode configuration enables secure panel mounting for easy integration into power modules and assemblies.
This diode also withstands short-term surge currents up to 450 A, providing resilience against transient overloads common in power electronics and automotive circuits. The component complies with UL 94V-0 flammability rating, IEC 60747 standards, and is RoHS compliant, reflecting quality and environmental safety.
Maximum continuous forward current is 80 A for high power handling. Rated peak reverse repetitive voltage is 100 V to ensure voltage tolerance. Diode has a low forward voltage drop of 700 mV for efficiency. Operating temperature range from -40°C to 150°C supports harsh environments.
Peak non-repetitive forward surge current capability is 450 A for transient robustness. Isolated diode configuration enables easy panel mounting. Package dimensions: length 38.2 mm, width 25.07 mm, height 9.6 mm. Conforms to UL 94V-0 flammability, IEC 60747, and RoHS standards.
Pin count is 4 providing versatile connectivity.
This IXYS Schottky diode model DSS2X41-01A is ideal for use in industrial power conversion, automotive electronics, renewable energy systems, and general power supply circuitry requiring low forward voltage and high current capacity. Explore more semiconductor products and high-quality components on EnvMart for reliable project and production needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 80 A, enabling it to handle high power applications effectively.
The rated peak reverse repetitive voltage for this model is 100 V, ensuring it can tolerate significant voltage levels.
The diode has a low forward voltage drop of approximately 700 mV, which enhances circuit efficiency by minimizing power losses.
This diode operates within a temperature range of -40°C to 150°C, making it suitable for harsh environments.
The diode can withstand a peak non-repetitive forward surge current of 450 A, providing resilience against transient overloads.
The SOT-227 package has dimensions of 38.2 mm in length, 25.07 mm in width, and 9.6 mm in height.
This diode features a pin count of 4, allowing for versatile connectivity options.
The diode utilizes an isolated configuration that enables easy panel mounting for integration into power modules.
It conforms to UL 94V-0 flammability, IEC 60747 standards, and is RoHS compliant, reflecting its quality and environmental safety.
This model is a Schottky diode, which is designed for efficient power rectification tasks.
This diode is suitable for industrial power conversion, automotive electronics, renewable energy systems, and general power supply circuitry.
The peak reverse current for this diode is specified at 1 mA, indicating its performance under reverse bias conditions.
