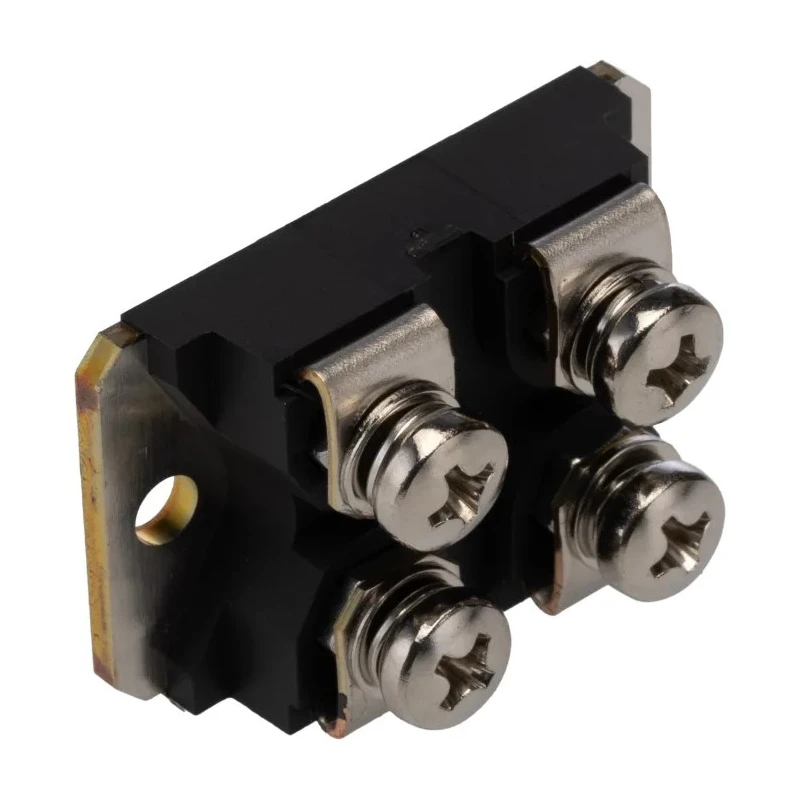

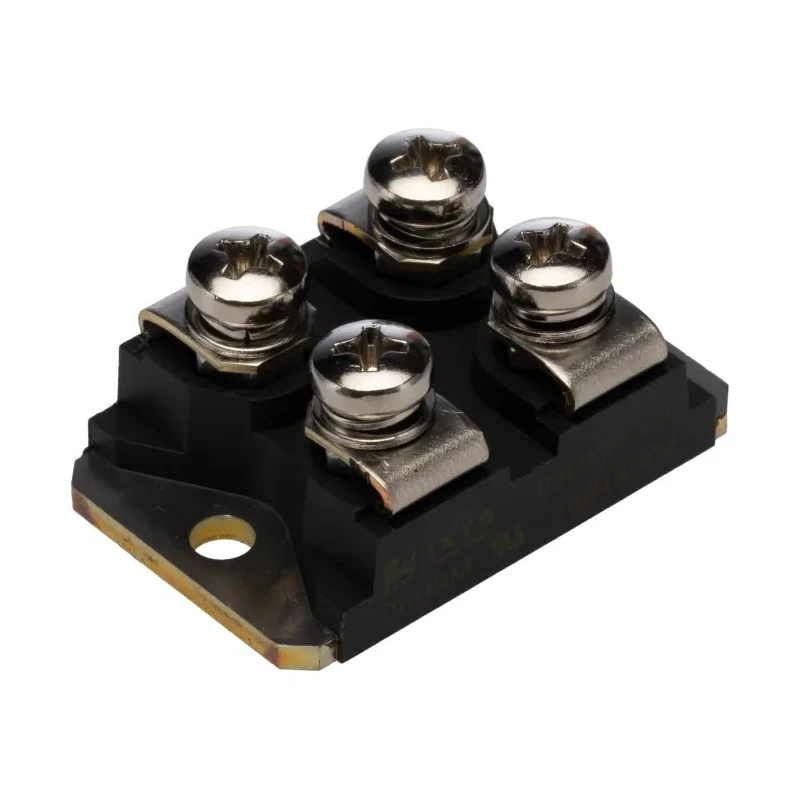

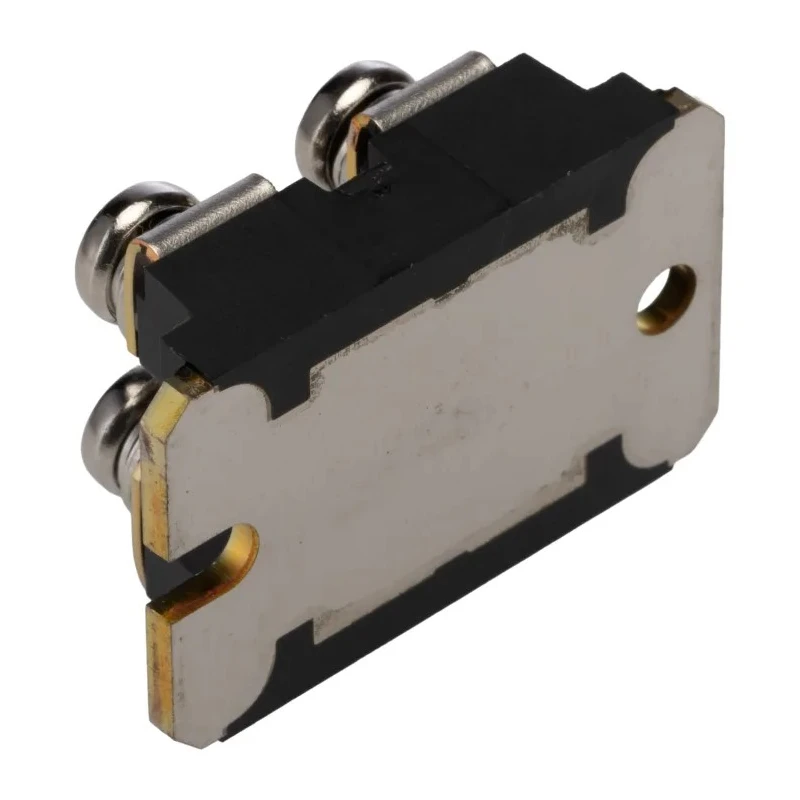

IXYS 1200 V 56 A Switching Diode 4-Pin SOT-227 DSI2X55-12A

Free Delivery in India | Lowest Global Shipping Charges

IXYS 1200 V 56 A Switching Diode 4-Pin SOT-227 DSI2X55-12A

Name: IXYS 1200 V 56 A Switching Diode 4-Pin SOT-227 DSI2X55-12A
Brand: IXYS
SKU: 148322
Price: 36.76 USD
Availability: InStock



Category Semiconductor Diode Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	9.6mm
Length	38.2mm
Model	DSI2X55-12A
Width	25.07mm
Mount Type	Panel
Maximum Operating Temperature	150°C
Package Type	SOT-227
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Continuous Forward Current If	56A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Isolated
Rectifier Type	Switching
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	700A
Maximum Forward Voltage Vf	1.2V
IXYS 1200 V 90 A Diode Switching 4-Pin SOT-227 DSEI2X101-12ABrand	IXYS
IXYS 1 kV 60 A Diode Switching 4-Pin SOT-227 DSEI2X61-10BBrand	IXYS

Key Features

Maximum continuous forward current of 56 amperes ensures high power handling capability.
Peak reverse repetitive voltage rating of 1200 volts suitable for high voltage switching applications.
Isolated diode configuration ideal for circuit isolation and switching efficiency.
Compact SOT-227 package with 4 pins offers reliable mounting and connectivity.
Wide operating temperature range from -40°C to 150°C supports harsh environments.
Low forward voltage drop of 1.2 volts reduces power losses during operation.
High peak non-repetitive forward surge current of 700 amperes for transient tolerance.
Peak reverse current of 300 microamperes ensures low leakage and efficient rectification.

Product Description

The IXYS DSI2X55-12A is a high-performance switching diode designed for demanding industrial and electronic applications. It features a 1200 V peak reverse repetitive voltage and a maximum continuous forward current of 56 A, making it suitable for power rectification and switching tasks in power management circuits.

Housed in a reliable 4-pin SOT-227 panel mount package, this diode maintains excellent thermal and electrical characteristics with a low forward voltage of 1.2 V, minimizing power losses and improving efficiency. Its isolated diode configuration enhances electrical isolation in complex circuit designs.

Operating over a wide temperature range from -40°C to 150°C, the DSI2X55-12A is ideal for harsh industrial environments, including automotive and power systems. It supports peak non-repetitive forward surge currents of up to 700 A, providing robustness against transient overloads.

The compact dimensions (38.2 mm length, 25.07 mm width, and 9.6 mm height) accommodate space-limited PCB layouts while ensuring high power density. The device also exhibits a low peak reverse current of 300 μA, which helps maintain circuit integrity by reducing leakage currents.

This diode is widely used in power electronics, industrial control systems, manufacturing equipment, and other commercial applications requiring efficient switching and rectification.

Maximum continuous forward current of 56 A. Peak reverse repetitive voltage of 1200 V. Low forward voltage drop of 1.2 V. Wide operating temperature from -40°C to 150°C. High surge current capability up to 700 A. Compact 4-pin SOT-227 panel mount package.

Isolated diode configuration for enhanced circuit design. Low peak reverse leakage current of 300 μA. Dimensions: 38.2 mm x 25.07 mm x 9.6 mm (LxWxH). Explore more components in the Semiconductor Diodes category at EnvMart for your industrial and electronic design needs.
