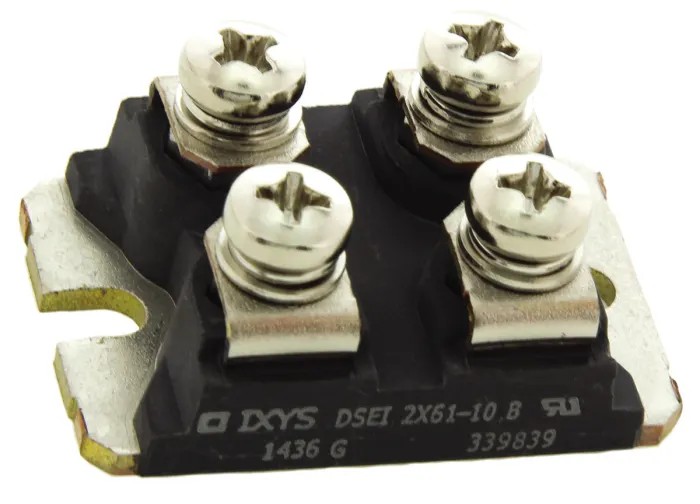

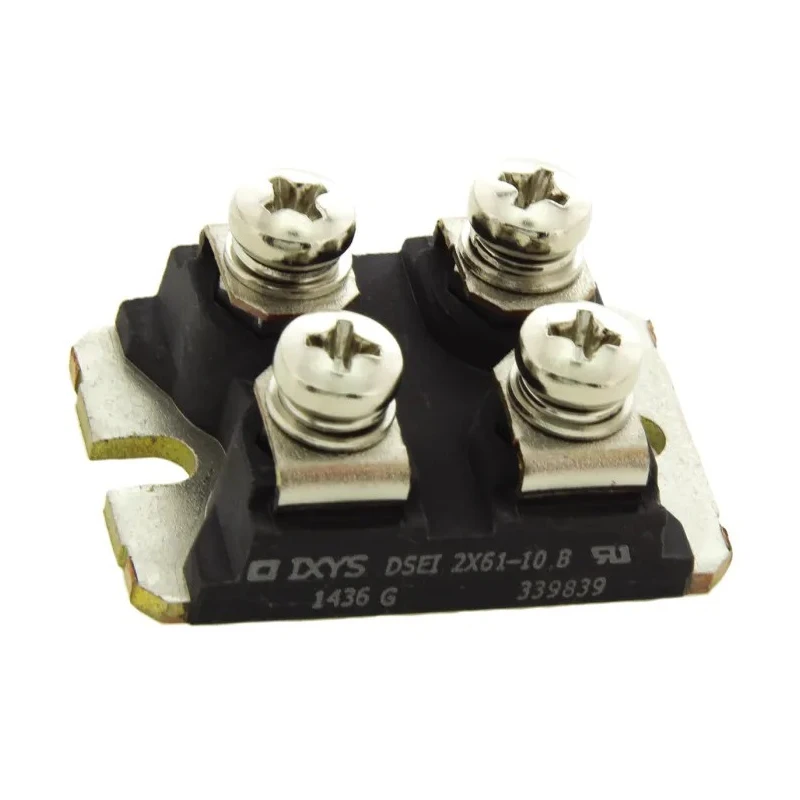

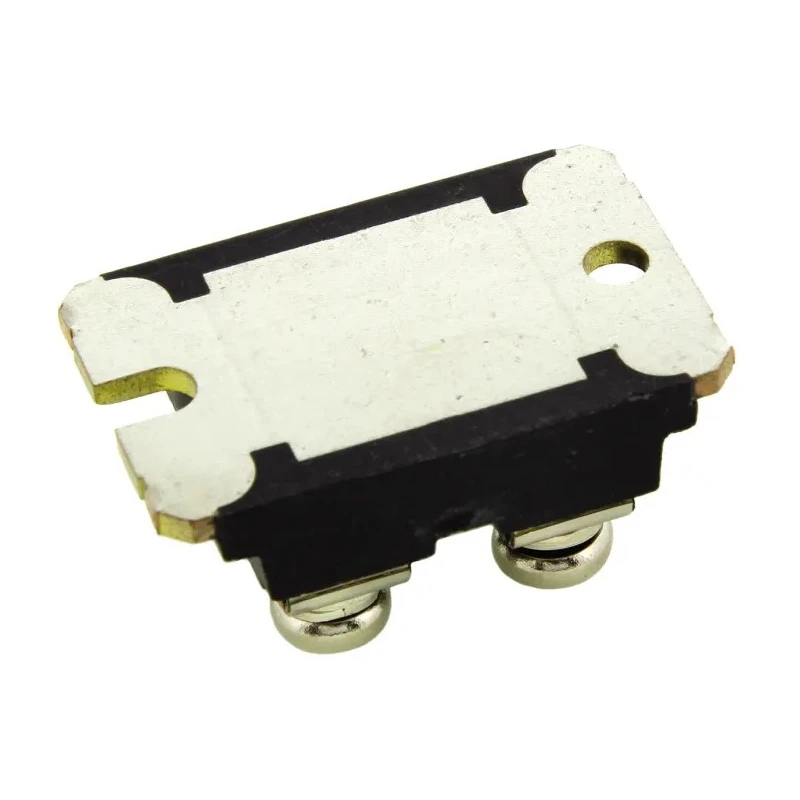

IXYS 1 kV 60 A Switching Diode 4-Pin SOT-227 DSEI2X61-10B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9mm |
| Length | 47mm |
| Model | DSEI2X61-10B |
| Width | 30.3mm |
| Mount Type | Panel |
| Series | DSEI2X61-10B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 540A |
| Maximum Forward Voltage Vf | 2.3V |
| Peak Reverse Recovery Time trr | 50ns |
| IXYS 1200 V 56 A Diode Switching 4-Pin SOT-227 DSI2X55-12ABrand | IXYS |
Key Features
- Rated for a maximum continuous forward current of 60 A.
- Supports peak reverse repetitive voltage of 1 kV.
- Isolated diode configuration in a compact 4-pin SOT-227 panel mount package.
- Maximum forward voltage of 2.3 V for efficient switching.
- Operates reliably within a temperature range of -40°C to 150°C.
- High surge capability with a peak non-repetitive forward surge current of 540 A.
- Fast switching with a peak reverse recovery time of 50 nanoseconds.
- Robust construction with dimensions of 47 mm length, 30.3 mm width, and 9 mm height.
Product Description
IXYS DSEI2X61-10B is a high-performance switching diode designed for power electronics applications, featuring a 1 kV peak reverse repetitive voltage and a 60 A maximum continuous forward current rating. Packaged in a 4-pin SOT-227 format suitable for panel mounting, this diode offers isolated configuration and is optimized for efficient switching tasks.
This diode exhibits a maximum forward voltage of 2.3 V and operates across a wide temperature range from -40°C to 150°C, making it reliable for demanding industrial environments. The device's peak non-repetitive forward surge current is rated at 540 A, allowing it to handle transient currents effectively without damage.
The rapid peak reverse recovery time of 50 ns ensures minimal switching losses and improved performance in rectifier and switching circuits. Physically, the diode measures 47 mm in length, 30.3 mm in width, and 9 mm in height.
Primarily used in industrial semiconductors, power management, and switching applications, this diode fits well in circuits requiring robust and efficient rectification under high voltage and current conditions. The package does not carry any automotive standards but is widely adopted in electronics and electrical systems.
Rated for 60 A maximum continuous forward current. Peak reverse repetitive voltage of 1 kV. Isolated 4-pin SOT-227 panel mount packaging. Maximum forward voltage of 2.3 V. Wide operating temperature range: -40°C to 150°C.
Peak non-repetitive forward surge current of 540 A. Fast switching with 50 ns peak reverse recovery time. Durable construction with specified dimensions. Suitable for power electronics and semiconductor applications. Does not comply with automotive standards.
This diode is an essential component in power rectification, switching regulators, and other electronic devices requiring durable and efficient switching diodes. Explore EnvMart for more IXYS semiconductor components and related power electronics devices.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 60 A.
This diode supports a peak reverse repetitive voltage of 1 kV.
The diode measures 47 mm in length, 30.3 mm in width, and 9 mm in height.
The maximum forward voltage for this model is 2.3 V.
It operates reliably within a temperature range of -40°C to 150°C.
The peak non-repetitive forward surge current rating is 540 A.
The peak reverse recovery time for this diode is 50 nanoseconds.
This diode is packaged in a 4-pin SOT-227 format suitable for panel mounting.
This model does not comply with automotive standards and is primarily used in electronics and electrical systems.
The diode features an isolated configuration.
It is primarily used in power rectification, switching regulators, and other electronic devices requiring efficient switching.
The peak reverse current for this model is rated at 3 mA.
