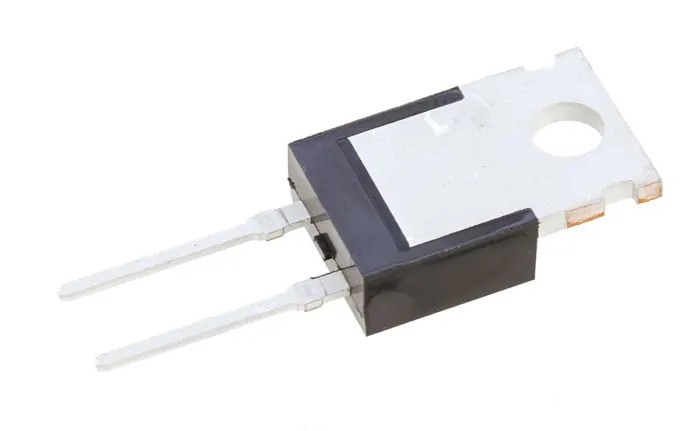

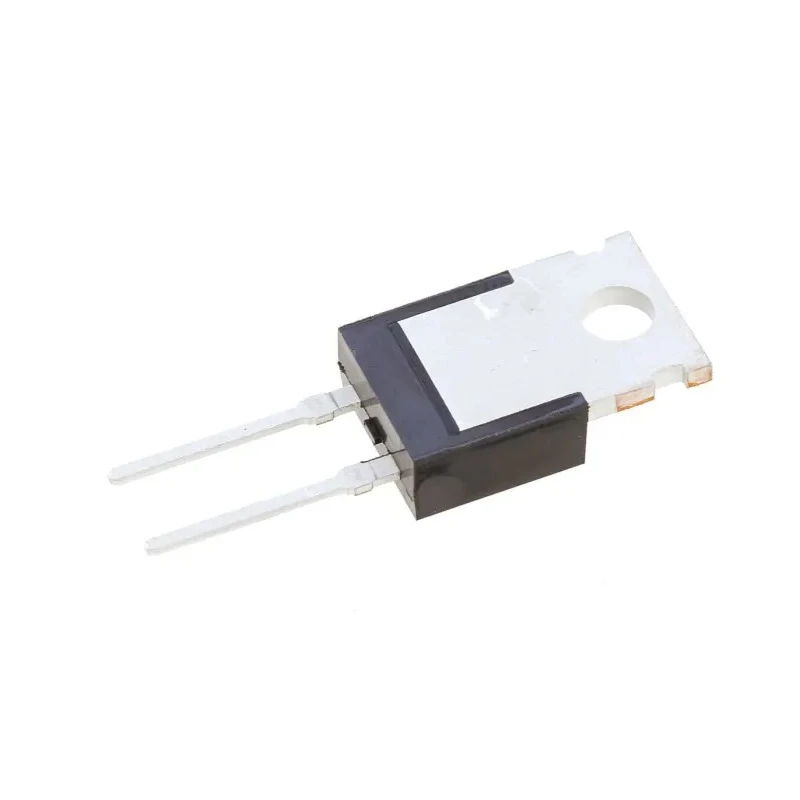

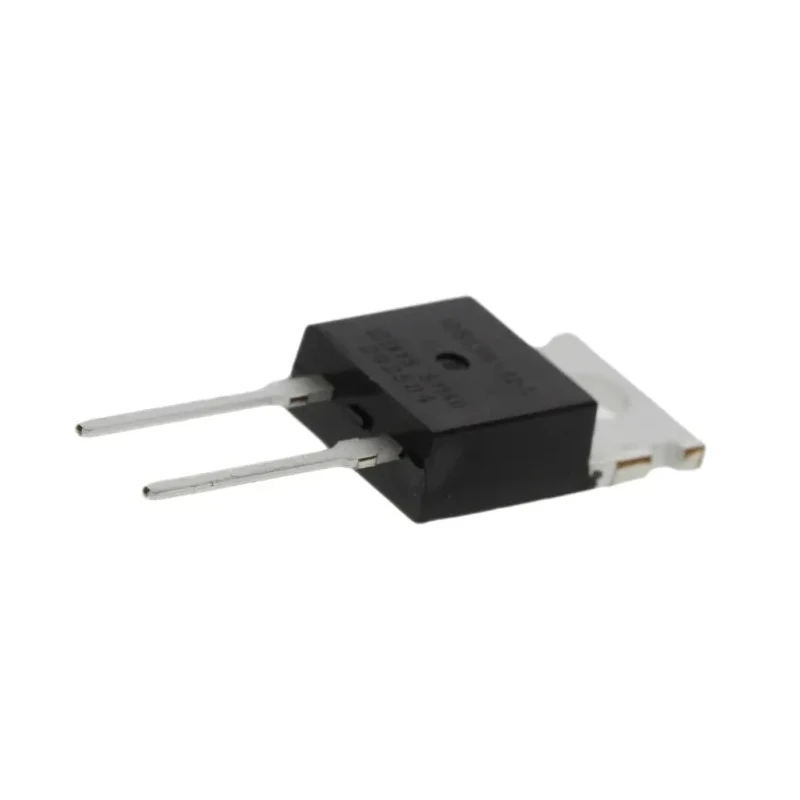

IXYS 1200 V 30 A General Purpose Single Diode 2-Pin TO-220AC DSI30-12A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.66mm |
| Length | 10.66mm |
| Model | DSI30-12A |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | DSI30 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 1.45V |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
Key Features
- Mount type is through hole for easy PCB integration.
- Peak reverse repetitive voltage of 1200 V ensures high voltage tolerance.
- Maximum continuous forward current is rated at 30 A.
- Designed for general purpose rectifier applications.
- Operating temperature range from -40°C to 150°C supports harsh environments.
- Low maximum forward voltage of 1.45 V reduces power loss.
- Supports peak non-repetitive forward surge current of 330 A.
- Compact dimensions of 10.66 mm length and 9.66 mm height.
Product Description
The IXYS DSI30-12A is a general purpose diode designed for use in power rectification within electronic devices. It features a TO-220AC package mount type, ideal for through-hole PCB installations in industrial and electronic applications. This diode supports a peak reverse repetitive voltage of 1200 V and a maximum continuous forward current of 30 A, making it suitable for high power circuits requiring reliable switching and rectification.
Constructed as a single diode configuration with two pins, it offers a maximum forward voltage of 1.45 V which helps in minimizing conduction losses. The diode has a peak non-repetitive forward surge current rating of 330 A to withstand short transients in heavy load conditions.
Operational temperature range from minus 40°C to 150°C ensures robust performance in varied environmental conditions including industrial, automotive, and commercial electronic systems. The compact package dimensions (10.66 mm length × 9.66 mm height × 4.82 mm width) allow space-efficient board layouts.
This diode is well suited for semiconductor circuits, discrete power switching, and rectifier applications where high voltage and current ratings are necessary. It is commonly used in power supplies, inverters, and industrial controllers.
Mount type is through hole for easy PCB integration. Peak reverse repetitive voltage of 1200 V ensures high voltage tolerance. Maximum continuous forward current is rated at 30 A. Designed for general purpose rectifier applications.
Operating temperature range from -40°C to 150°C supports harsh environments. Low maximum forward voltage of 1.45 V reduces power loss. Supports peak non-repetitive forward surge current of 330 A. Compact dimensions of 10.66 mm length and 9.66 mm height.
Package has 2 pins for electrical connectivity. No automotive or special certifications.
This IXYS diode is an essential component for electronic and electrical designers focusing on effective power management and circuit protection. Find more semiconductor products and components to optimize your electronic assemblies at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak reverse repetitive voltage of 1200 V, ensuring high voltage tolerance for various applications.
It is rated for a maximum continuous forward current of 30 A, suitable for high power circuits.
The operating temperature range is from -40°C to 150°C, allowing it to perform in harsh environments.
The dimensions are 10.66 mm in length, 9.66 mm in height, and 4.82 mm in width, making it compact for PCB layouts.
It uses a TO-220AC package type, designed for through-hole mounting on PCBs.
The maximum forward voltage is 1.45 V, which helps to minimize conduction losses in circuits.
The diode supports a peak non-repetitive forward surge current of 330 A, allowing it to handle short transients in heavy load conditions.
This model features a single diode configuration with two pins for electrical connectivity.
It is commonly used in power supplies, inverters, and industrial controllers for power rectification.
This diode is classified as a general purpose rectifier, suitable for various electronic applications.
The country of origin for this diode is India.
The peak reverse current is rated at 1 mA, indicating its performance under reverse bias conditions.
