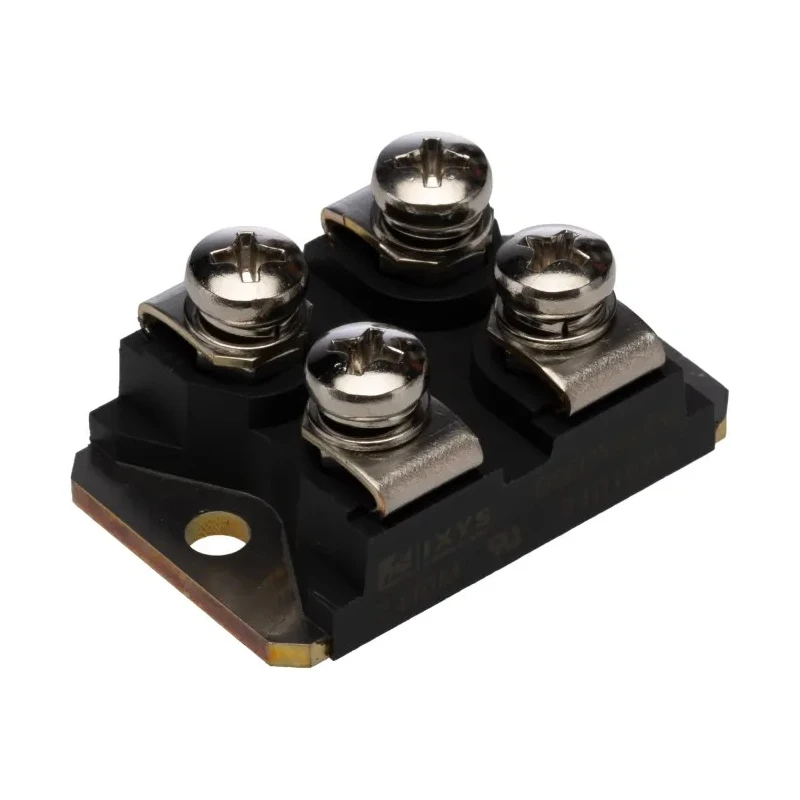

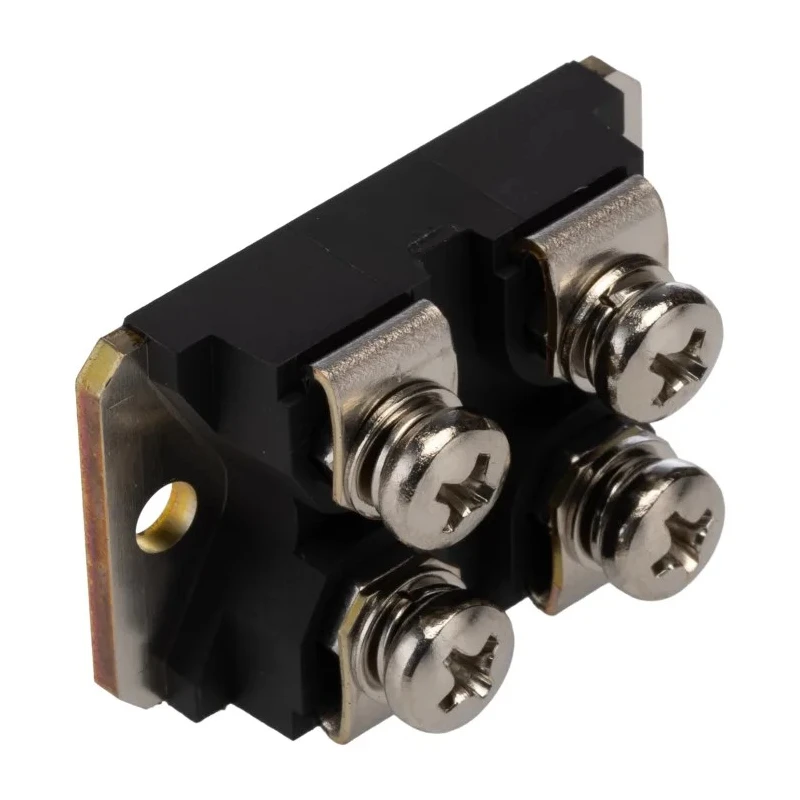

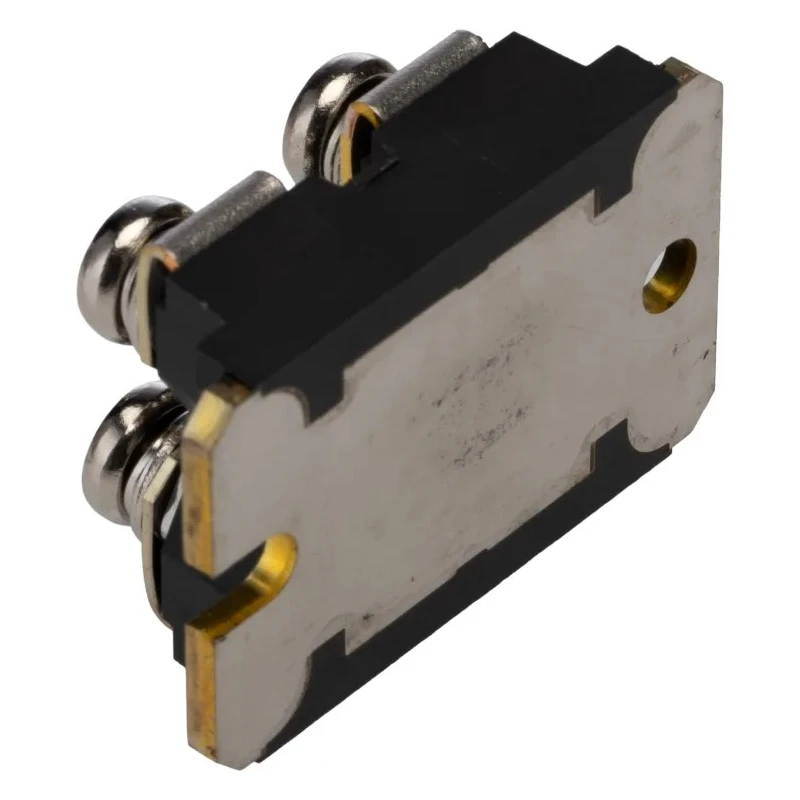

IXYS 1200 V 102 A Switching Diode 4-Pin SOT-227 DSEI2X61-12B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9mm |
| Length | 47mm |
| Model | DSEI2X61-12B |
| Width | 30.3mm |
| Mount Type | Panel |
| Series | DSEI2X61-12B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 102A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2.2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 2.5V |
| Peak Reverse Recovery Time trr | 60ns |
Key Features
- Supports a maximum continuous forward current of 102 A for robust current handling.
- Has a peak reverse repetitive voltage rating of 1200 V for high voltage applications.
- Features a peak non-repetitive forward surge current of 500 A to handle surge conditions.
- Operates within a wide temperature range from -40°C to 150°C for reliable performance.
- Low peak reverse recovery time of 60 ns ensures efficient switching speeds.
- Package dimensions include a length of 47 mm, width of 30.3 mm, and height of 9 mm.
- Rectifier type is switching, suitable for power electronics and industrial use.
- Pin count is 4, facilitating panel mounting.
Product Description
The IXYS DSEI2X61-12B is a high-performance switching diode designed for demanding industrial and electronic applications. It is configured as an isolated diode in a 4-pin SOT-227 panel mount package, providing reliable power rectification and switching capabilities.
This diode features a peak non-repetitive forward surge current rating of 500 A, allowing it to withstand high transient conditions commonly encountered in industrial power circuits. It operates over a broad temperature range from -40°C to 150°C, ensuring durability under harsh environmental conditions.
With a maximum forward voltage of 2.5 V and a low peak reverse recovery time of 60 ns, the DSEI2X61-12B optimizes switching efficiency while minimizing losses. Its physical dimensions - 47 mm length, 30.3 mm width, and 9 mm height - make it suitable for panel mounting in electronic assemblies.
This diode is ideal for semiconductor, power electronics, industrial manufacturing, and laboratory applications requiring reliable switching diodes with superior electrical characteristics. It accords with standard semiconductor diode designs but does not carry specific industry certifications.
Supports a maximum continuous forward current of 102 A for robust current handling. Has a peak reverse repetitive voltage rating of 1200 V for high voltage applications. Features a peak non-repetitive forward surge current of 500 A to handle surge conditions.
Operates within a wide temperature range from -40°C to 150°C for reliable performance. Low peak reverse recovery time of 60 ns ensures efficient switching speeds. Package dimensions include a length of 47 mm, width of 30.3 mm, and height of 9 mm.
Rectifier type is switching, suitable for power electronics and industrial use. Pin count is 4, facilitating panel mounting. Diode configuration is isolated for electrical isolation. Maximum forward voltage is 2.5 V to minimize power losses.
Explore the Electronics & Electricals category on EnvMart for more high-quality semiconductor Diodes from IXYS and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 102 A, allowing for robust current handling in various applications.
This diode has a peak reverse repetitive voltage rating of 1200 V, making it suitable for high voltage applications.
It features a peak non-repetitive forward surge current rating of 500 A, which helps it handle surge conditions effectively.
The diode operates within a wide temperature range from -40°C to 150°C, ensuring reliable performance under various conditions.
The package dimensions are 47 mm in length, 30.3 mm in width, and 9 mm in height, making it suitable for panel mounting.
This model is a switching rectifier, designed for power electronics and industrial applications.
The peak reverse recovery time is 60 ns, which contributes to efficient switching speeds.
This diode has a pin count of 4, facilitating its panel mounting configuration.
The maximum forward voltage for this diode is 2.5 V, which helps minimize power losses during operation.
The diode configuration is isolated, providing electrical isolation in applications.
It is suitable for semiconductor, power electronics, industrial manufacturing, and laboratory applications requiring reliable switching capabilities.
The country of origin for this diode is India.
