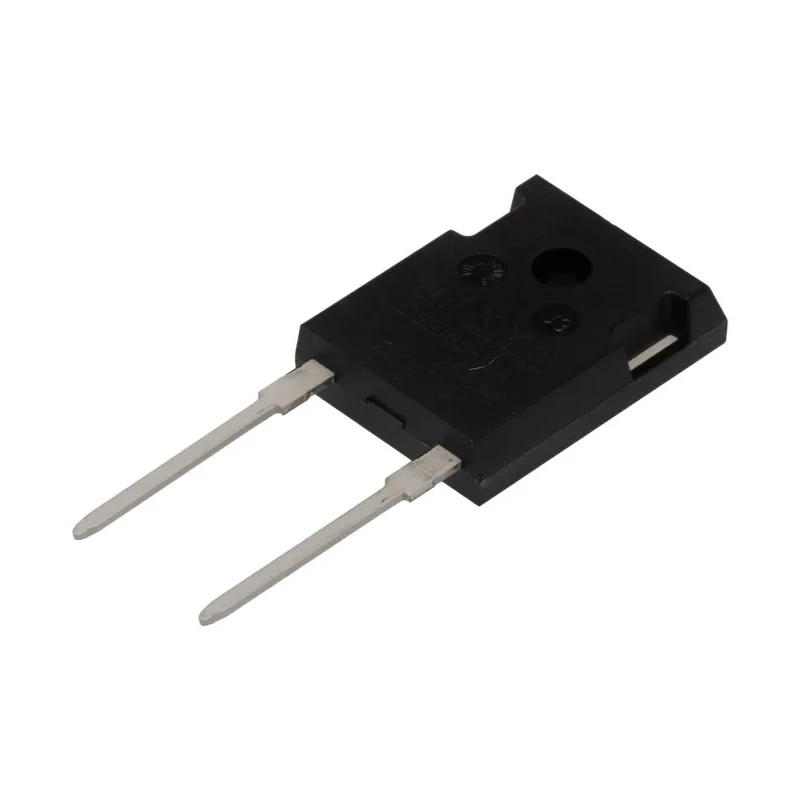

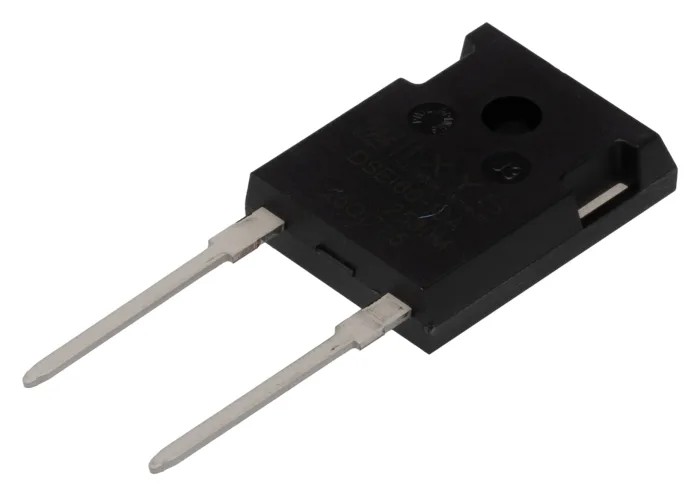

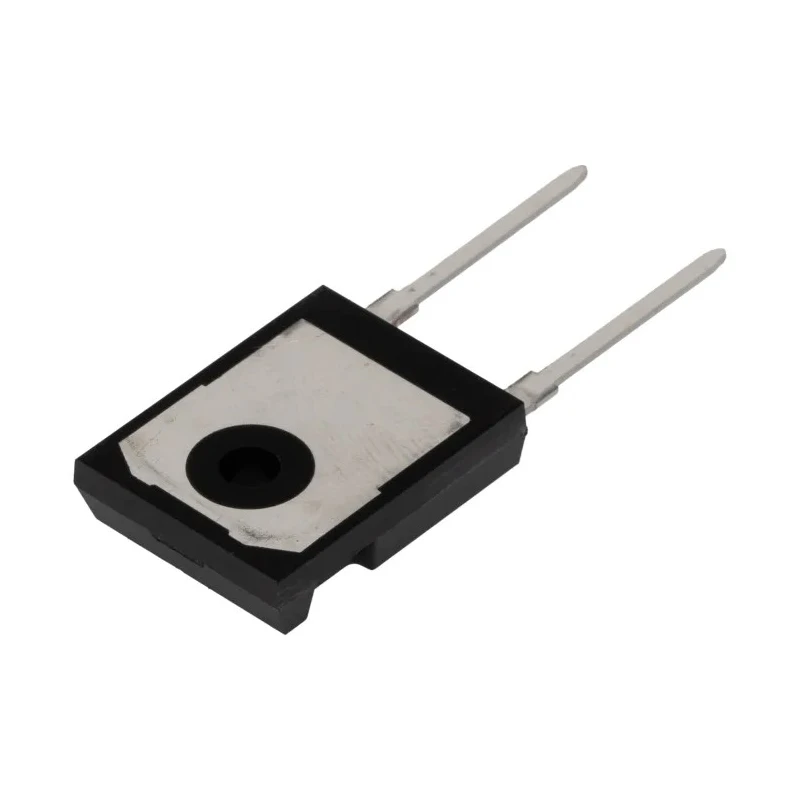

IXYS 1 kV 60 A Switching Diode 2-Pin TO-247AD DSEI60-10A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 21.46mm |
| Length | 16.26mm |
| Model | DSEI60-10A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | DSEI60 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 540A |
| Maximum Forward Voltage Vf | 2.3V |
| Peak Reverse Recovery Time trr | 50ns |
| IXYS 600 V 60 A Diode Switching 2-Pin TO-247AD DSEI60-06ABrand | IXYS |
Key Features
- Through hole mount type suitable for various PCB applications.
- High peak non-repetitive forward surge current of 540 A.
- Maximum forward voltage of 2.3 V ensures efficient conduction.
- Peak reverse recovery time of 50 ns for fast switching operation.
- Operates reliably between -40°C and 150°C temperature range.
- Single diode configuration optimized for switching rectifier circuits.
- Low peak reverse current of 3 mA to reduce leakage losses.
- Designed without automotive standards, ideal for industrial electronics.
Product Description
IXYS DSEI60-10A is a high-performance switching diode rated for 1 kV peak reverse voltage and 60 A maximum continuous forward current. Housed in a robust TO-247AD 2-pin through-hole package, this single diode device is designed for efficient rectification and fast switching tasks in various electronic applications.
With a peak non-repetitive forward surge current of 540 A and a maximum forward voltage of 2.3 V, the diode ensures durable and efficient conduction. It supports a peak reverse recovery time as low as 50 ns, enabling high-speed switching in power electronics circuits.
Operating reliably from -40°C up to 150°C, the diode suits industrial and power electronics environments that demand robust temperature stability. Its compact physical dimensions - length 16.26 mm, height 21.46 mm, and width 5.3 mm - allow for flexible PCB designs with effective thermal dissipation.
This IXYS switching diode's low peak reverse current of only 3 mA minimizes leakage currents, enhancing energy efficiency in circuits. While it does not meet automotive standards, it is well-suited for industrial, manufacturing, and power supply applications requiring dependable rectifier components.
Through hole mount type suitable for various PCB applications. High peak non-repetitive forward surge current of 540 A. Maximum forward voltage of 2.3 V ensures efficient conduction. Peak reverse recovery time of 50 ns for fast switching operation.
Operates reliably between -40°C and 150°C temperature range. Compact dimensions: length 16.26 mm, height 21.46 mm, width 5.3 mm. Single diode configuration optimized for switching rectifier circuits. Low peak reverse current of 3 mA to reduce leakage losses.
Designed without automotive standards, ideal for industrial electronics. Robust TO-247AD package type for good thermal management.
This diode is suitable for power electronics, industrial automation, electronic manufacturing, and switching power supplies where high voltage and current ratings are critical. It provides reliable rectification and switching performance in demanding operational conditions.
Explore EnvMart's comprehensive semiconductor components collection for quality and performance in your projects.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the DSEI60-10A is 60 A.
This diode has a peak reverse voltage rating of 1 kV.
The peak non-repetitive forward surge current for this diode is 540 A.
The maximum forward voltage of this diode is 2.3 V.
The peak reverse recovery time is 50 ns, allowing for fast switching operation.
The dimensions of the TO-247AD package are 16.26 mm in length, 21.46 mm in height, and 5.3 mm in width.
The DSEI60-10A operates reliably between -40°C and 150°C.
This model uses a through hole mount type suitable for various PCB applications.
This diode features a single diode configuration optimized for switching rectifier circuits.
The peak reverse current is 3 mA, which helps to reduce leakage losses.
No, the DSEI60-10A is designed without automotive standards and is intended for industrial electronics.
This diode is suitable for power electronics, industrial automation, electronic manufacturing, and switching power supplies.
