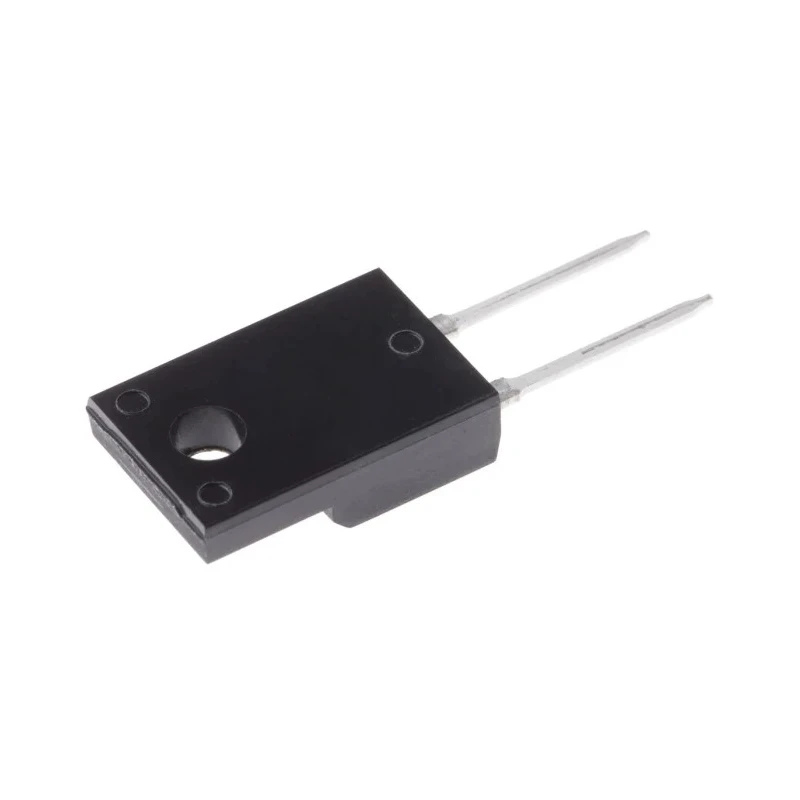

IXYS 1200 V 10 A Switching Diode Single 2-Pin Through Hole TO-220 Package DHG10I1200PM
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.19mm |
| Length | 10.36mm |
| Model | DHG10I1200PM |
| Width | 4.9mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 3.56V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- Designed for reliable switching applications with fast recovery time.
- Compact TO-220 package suitable for easy mounting on PCBs.
- Single diode configuration with 2 pins for through-hole mount.
- Supports wide operating temperature range from -55°C to 150°C.
- Low peak reverse current ensures minimal leakage in circuits.
- High peak non-repetitive surge current of 70 A for transient handling.
- Maximum forward voltage drop of 3.56 V for efficient conduction.
- Robust construction enabling operation in industrial environments.
Product Description
IXYS DHG10I1200PM is a high-quality switching diode designed for demanding semiconductor applications. This diode features a peak reverse repetitive voltage of 1200 V and can continuously forward conduct currents up to 10 A, making it suitable for power control and switching tasks in electronics and industrial systems.
Encapsulated in a TO-220 through-hole package, the diode is configured as a single device with 2 pins, offering convenient PCB mounting with reliable electrical and thermal performance. It operates within a broad temperature range from -55°C to a maximum of 150°C, ensuring stable performance in various environmental conditions.
The DHG10I1200PM diode is characterized by a low peak reverse current of 15 microamperes and a fast peak reverse recovery time of 75 nanoseconds, allowing for efficient switching with minimal energy loss. This makes it ideal for use in power supplies, inverters, and other power electronics.
Its maximum forward voltage drop of 3.56 V supports efficient current flow with reduced power dissipation. The diode can also withstand peak non-repetitive forward surge currents up to 70 A, providing robustness to handle transient surges and spikes.
This switching diode is manufactured to meet industrial standards and is best suited for use in electronic component assemblies requiring durable, high voltage, and high current rectification and switching functions.
Reliable switching diode with 1200 V voltage rating and 10 A continuous current capacity. Compact TO-220 package facilitates through-hole mounting and heat dissipation. Single diode, 2-pin through-hole configuration ideal for PCB applications.
Wide operating temperature range from -55°C to 150°C for diverse environments. Low leakage current with 15 μA peak reverse current specifications. Fast recovery time of 75 ns to improve switching efficiency in circuits. Supports 70 A peak non-repetitive surge current for transient tolerance.
Maximum forward voltage of 3.56 V reduces conduction losses. Suitable for industrial, electronic, power supply, and switching applications. Browse the Electronics & Electricals category at EnvMart for more semiconductor components including diodes and rectifiers from reputed brands like IXYS.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the IXYS DHG10I1200PM is 1200 V.
This model can continuously conduct currents up to 10 A.
The maximum forward voltage drop is 3.56 V, which supports efficient current flow.
The diode has a low peak reverse current of 15 μA, ensuring minimal leakage in circuits.
It is encapsulated in a TO-220 package and features a single diode configuration with 2 pins for through-hole mounting.
The operating temperature range is from -55°C to a maximum of 150°C.
This model can withstand peak non-repetitive forward surge currents up to 70 A.
The peak reverse recovery time is 75 nanoseconds, allowing for efficient switching.
The dimensions of the IXYS DHG10I1200PM are 10.36 mm in length, 4.9 mm in width, and 9.19 mm in height.
It is suitable for power control and switching tasks in electronics and industrial systems.
The IXYS DHG10I1200PM is manufactured in India.
This diode is classified as a switching rectifier.
