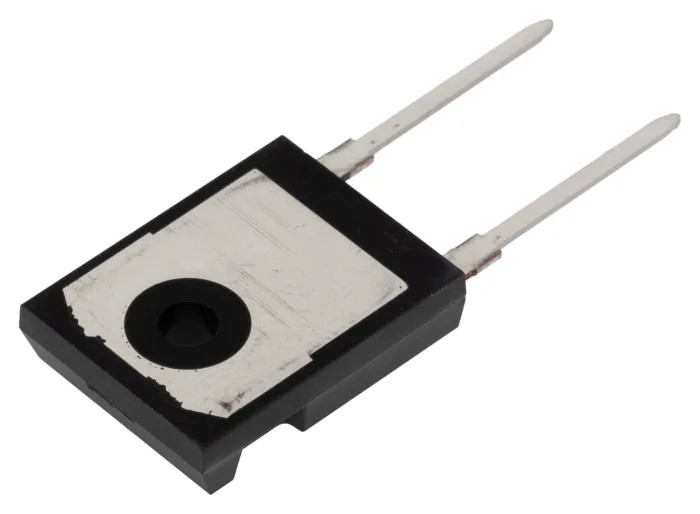

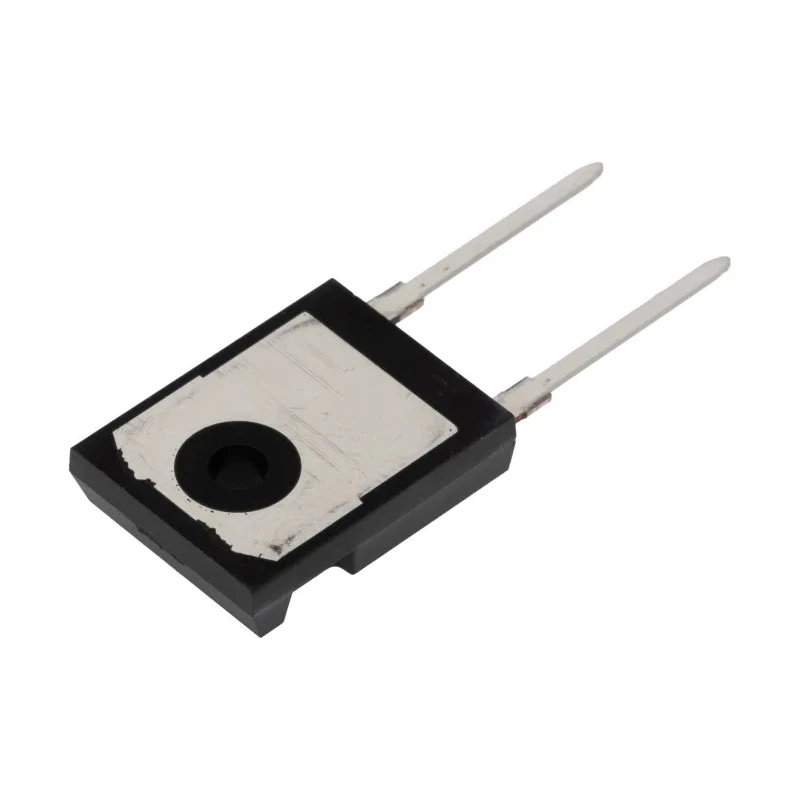

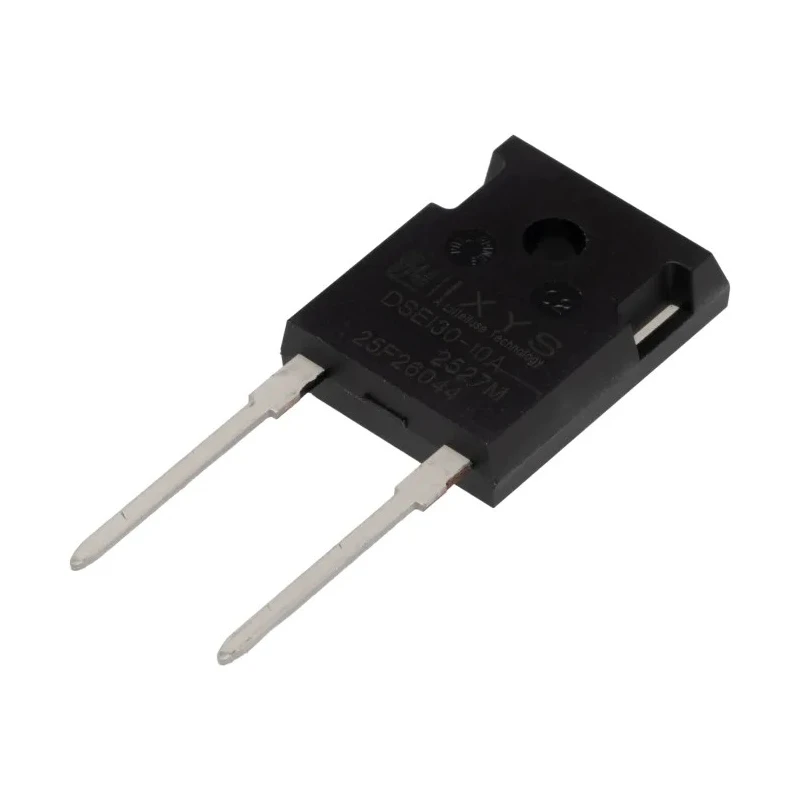

IXYS 1 kV 30 A Switching Diode 2-Pin Through Hole TO-247AD DSEI30-10A

Free Delivery in India | Lowest Global Shipping Charges

IXYS 1 kV 30 A Switching Diode 2-Pin Through Hole TO-247AD DSEI30-10A

Name: IXYS 1 kV 30 A Switching Diode 2-Pin Through Hole TO-247AD DSEI30-10A
Brand: IXYS
SKU: 148315
Price: 5.17 USD
Availability: InStock



Category Switching Diodes Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	21.46mm
Length	16.26mm
Model	DSEI30-10A
Width	5.3mm
Mount Type	Through Hole
Series	DSEI30
Maximum Operating Temperature	150°C
Package Type	TO-247AD
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	750μA
Peak Non-Repetitive Forward Surge Current Ifsm	210A
Maximum Forward Voltage Vf	2.4V
Peak Reverse Recovery Time trr	50ns

Key Features

Through hole mount type suitable for robust PCB designs.
2-pin single diode configuration optimized for switching applications.
Peak forward surge current capacity of 210 A ensures reliability.
Low peak reverse recovery time of 50 nanoseconds supports high-speed switching.
Operating temperature range from -40°C to 150°C for diverse environments.
Maximum forward voltage of 2.4 V reduces power loss during conduction.
Designed without automotive certification making it suited for industrial and electronic component use.

Product Description

IXYS DSEI30-10A is a high-performance switching diode designed for demanding electronic applications. It comes in a rugged TO-247AD package offering through hole mounting, ideal for stable and durable circuit installations.

The diode supports a peak reverse repetitive voltage (Vrrm) of 1 kV, enabling it to withstand high voltage spikes in power electronics and industrial devices. Its maximum continuous forward current rating of 30 A supports efficient power conduction in switching circuits.

With a peak non-repetitive forward surge current of 210 A, the diode can endure transient overloads, enhancing system protection and reliability. The low peak reverse recovery time of 50 nanoseconds is specifically optimized for rapid switching operations, minimizing switching losses and improving overall efficiency in power converters and inverters.

Operating temperature ranges from -40°C to 150°C, allowing this diode to perform reliably in harsh industrial environments and temperature variations. The maximum forward voltage drop of 2.4 V helps in reducing conduction losses, thus improving system efficiency.

Its physical size features a length of 16.26 mm, width of 5.3 mm, and height of 21.46 mm, making it compact enough for tight electronic assemblies yet robust enough for industrial uses.

Through hole mount type suitable for robust PCB designs. 2-pin single diode configuration optimized for switching applications. Peak surge current capacity of 210 A ensures transient endurance. Fast reverse recovery time (50 ns) ideal for high switching frequency devices.

Wide operating temperature range (-40°C to 150°C) for industrial use. Low forward voltage of 2.4 V reduces power dissipation. Compact TO-247AD package dimensions for versatile mounting. Non-automotive certified device designed for power electronics.

This diode is suitable for industrial power electronics, manufacturing equipment, electrical control systems, and electronic designs requiring high voltage and current handling capabilities with fast switching characteristics.
