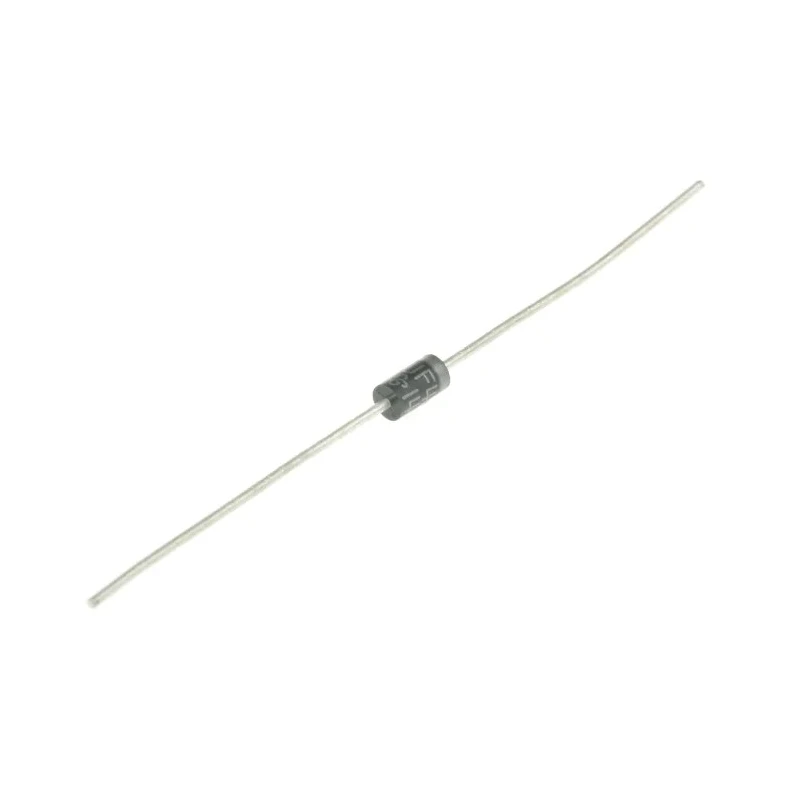

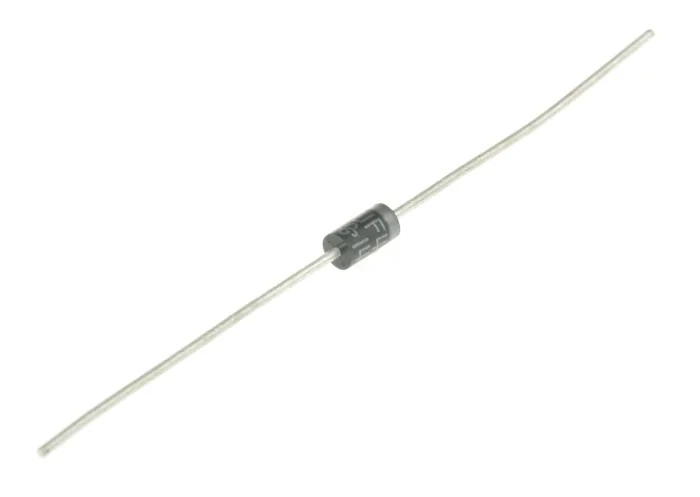

Vishay General Purpose 1 kV 1 A Diode 2-Pin DO-204AL UF4007-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | UF4007-E3/54 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | UFX |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
| Vishay 1000V 1A, Silicon Junction Diode, 2-Pin DO-204AL UF4007-E3/73Brand | Vishay |
Key Features
- Features a maximum continuous forward current of 1 ampere.
- Capable of handling a peak reverse repetitive voltage of 1 kV.
- Incorporates ultrafast recovery time of 75 nanoseconds for efficiency.
- Operates reliably within a temperature range of -55°C to 150°C.
- Constructed with through hole mount and DO-204AL package type.
- Designed as single diode configuration with two pins.
- Supports peak non-repetitive forward surge current of 30 amperes.
- Maximum forward voltage drop rated at 1.7 volts.
Product Description
Vishay UF4007-E3/54 is a high-performance general purpose diode suitable for a broad range of electronic and industrial applications. This diode features robust construction with a through hole mounting style and a DO-204AL package providing mechanical and electrical reliability in circuit assembly.
It supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 1 kV, making it ideal for protection and rectification tasks in power supplies and control circuits.
The ultrafast recovery time of 75 nanoseconds significantly reduces switching losses, enhancing efficiency in high-frequency switching power supplies and inverter circuits. It sustains peak non-repetitive surge currents up to 30 amperes, offering transient tolerance in demanding electrical environments.
Operating temperature range spans from -55°C to 150°C, assuring performance stability across extreme conditions typical in industrial settings. Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rated at 1 kV.
Ultrafast recovery time of 75 nanoseconds. Operating temperature between -55°C and 150°C. Peak non-repetitive forward surge current of 30 amperes. 2-pin single diode configuration in DO-204AL package. Maximum forward voltage of 1.7 volts.
Peak reverse current at 10 microamperes.
This diode is widely used in industrial and laboratory electronics, power supply circuits, automotive electronics, and other commercial electronics requiring durable and efficient rectifiers.
Browse additional Vishay semiconductor products and Diodes on EnvMart for complementary components and technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay UF4007-E3/54 diode is 1 ampere.
This model is capable of handling a peak reverse repetitive voltage of 1 kV.
The diode features an ultrafast recovery time of 75 nanoseconds, which helps reduce switching losses.
It operates reliably within a temperature range of -55°C to 150°C.
This model has a single diode configuration with a 2-pin design and is housed in a DO-204AL package.
The diode supports a peak non-repetitive forward surge current of 30 amperes.
The maximum forward voltage drop is rated at 1.7 volts.
The diode has a diameter and width of 2.7 mm, a height of 2.7 mm, and a length of 5.2 mm.
The peak reverse current is rated at 10 microamperes (10 μA).
This diode is widely used in industrial and laboratory electronics, power supply circuits, and automotive electronics.
It is designed for through hole mounting, providing mechanical and electrical reliability.
The diode is manufactured in India.
