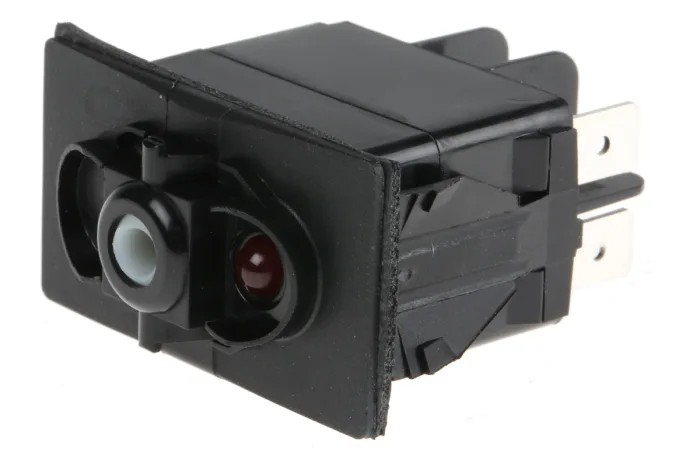

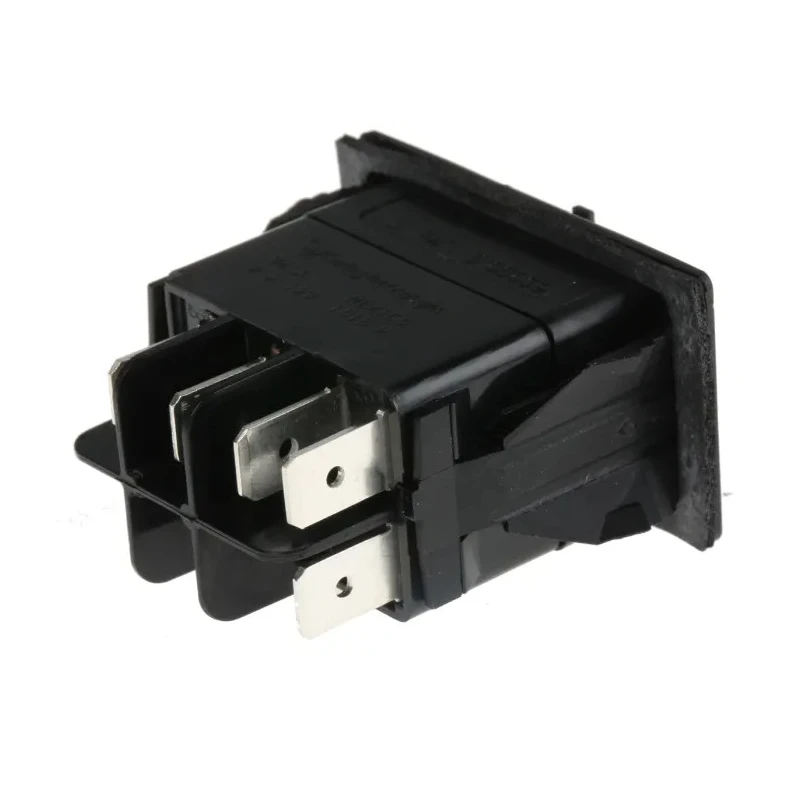

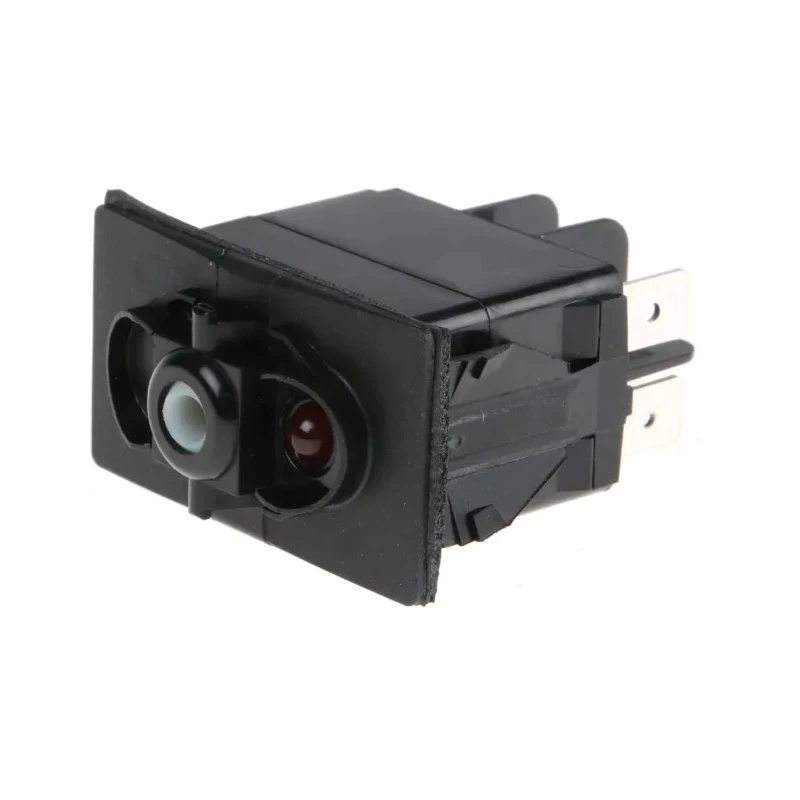

Carlingswitch Illuminated SPDT Latching On-None-On Rocker Switch Panel RCV-37111485

Carlingswitch RCV-37111485 illuminated SPDT rocker switch panel is a robust electrical component designed for reliable switching in demanding industrial, automation, and electrical applications. Featuring a latching On-None-On switch operation, it ensures precise control with distinct position states suitable for control panels and machinery.

This rocker switch is housed in durable polyethylene terephthalate material providing mechanical strength while maintaining an IP68 ingress protection rating when correctly mounted without the panel assembly system. It is engineered to operate safely under wide temperature ranges from - 40°C minimum to 70°C maximum, suitable for harsh environments.

The switch supports a contact current of 20A and operates at both 12V DC and 250V AC voltages, allowing versatile use across different electrical systems. The quick connect terminal design with 6.35mm fast-on terminals facilitates easy installation and secure wiring connections, enhanced by the supplied panel-sealing gasket for environmental sealing.

Illumination is integrated with options of red or green LEDs including internal resistors configured for 12V operation to provide visual status indication. The mechanical lifespan is rated at 150,000 operations, ensuring long-term durability and reliability for industrial use.

This product complies fully with major international safety and performance standards including VDE, UL, RoHS, CSA, CE, and BS approvals, ensuring it meets stringent regulatory requirements. The switch's contact system uses silver to ensure high conductivity and low contact resistance of 10mΩ, optimizing performance for critical electrical functions.

Ideal for control panel installation and electrical automation systems, this illuminated Rocker Switch combines rugged design with extensive operating capabilities. Note that the switch is supplied without the actuator, which should be ordered separately (part numbers such as 665-528).

Designed for panel mounting with IP68 rating for high ingress protection. Constructed with polyethylene terephthalate housing for durability. Operates with 20A contact current, supporting 12V DC and 250V AC voltages. Features quick connect 6.35mm fast-on terminals with panel-sealing gasket.

Switch configuration provides latching On-None-On operation with illumination. Mechanical life rated for 150,000 operations ensuring long-term reliability. Suitable for industrial, automation, electrical, and control panel applications.

Complies with VDE, UL, RoHS, CSA, CE, and BS standards for safety and performance. Operates in extreme environments from - 40°C to 70°C maximum temperature. Illuminated version includes red or green LEDs with integral resistors for 12V operation.
