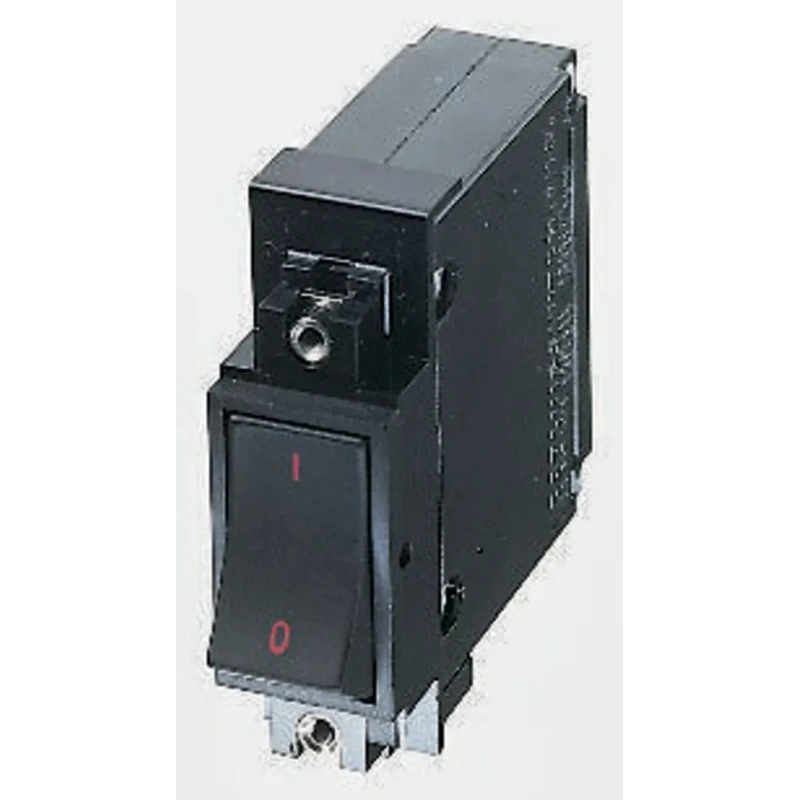

Carlingswitch DSPT On-None-On Rocker Switch Panel Aluminium Housing 30A 250V AC 28V DC IP66 AF1X0038071F2C

Carlingswitch AF1X0038071F2C DSPT On-None-On Rocker Switch Panel features a single pole double throw contact configuration within a robust aluminium housing designed for panel mounting applications. It is suited for electrical and electronic equipment requiring durable and versatile switching solutions.

This rocker switch is rated for a 30A contact current, accommodates contact voltages of 250V AC and 28V DC, and provides excellent ingress protection with an IP66 rating, making it dust tight and protected against powerful water jets. Its operating temperature range from -40°C to 85°C allows reliable performance in extreme environments.

The switch incorporates a hydraulically damped actuator and trip free mechanism, preventing the contacts from being held closed during overcurrent or short circuit faults, thereby enhancing operational safety. The mechanical life expectancy of 100,000 operations ensures longevity in industrial applications.

Terminal connections use push-in type providing ease of installation, while mounting requires a hole size of 32 x 19 mm and fixing holes sized 4 mm at 42 mm centers. The switch exhibits a high insulation resistance greater than 100 MΩ, ensuring electrical durability.

Compliant with international standards such as BS, CE, UL, RoHS, CSA, and VDE, this switch is manufactured in Mexico to meet global quality benchmarks. It is ideal for industrial control panels, automation equipment, and electrical apparatus requiring high reliability and safety.

Single pole double throw contact configuration provides flexible switching options. Aluminium housing ensures structural robustness and heats dissipation. Rated 30A current capacity suitable for demanding electrical loads.

IP66 enclosure protection ideal for harsh industrial environments. Hydraulically damped with a trip free mechanism for enhanced operational safety. Push-in terminals allow for quick and secure wiring connections. Temperature resistant from -40°C to 85°C to accommodate diverse environments.

Mechanical life of 100,000 operations guarantees long-term reliability. Mounting via 32 x 19 mm hole and 4 mm fixing screws at 42 mm centers. High insulation resistance above 100 MΩ for electrical integrity. Explore the extensive range of Rocker Switches and electrical control components at EnvMart for reliable industrial automation and panel solutions.
