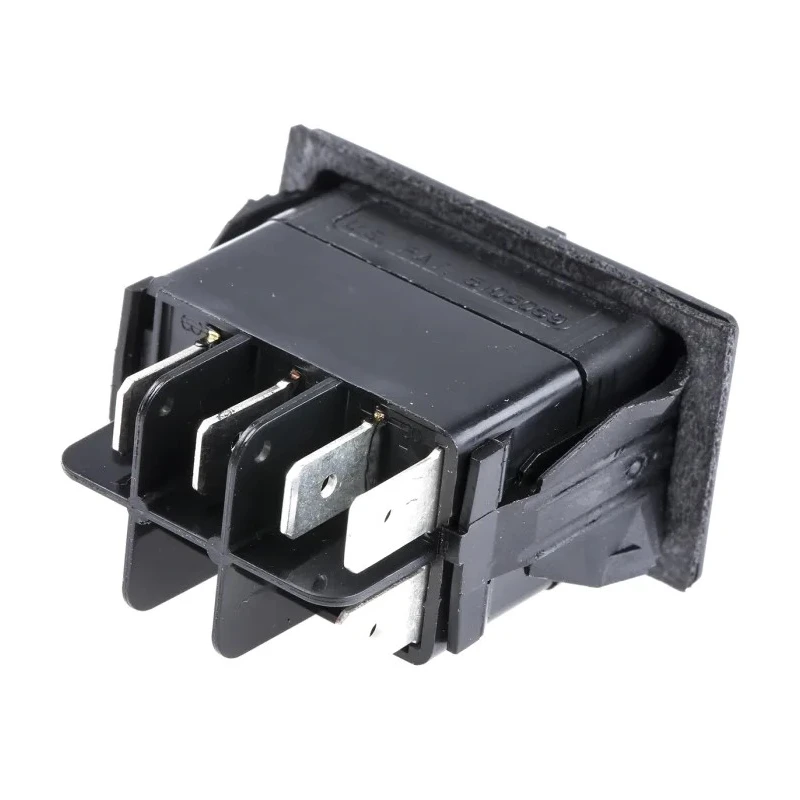

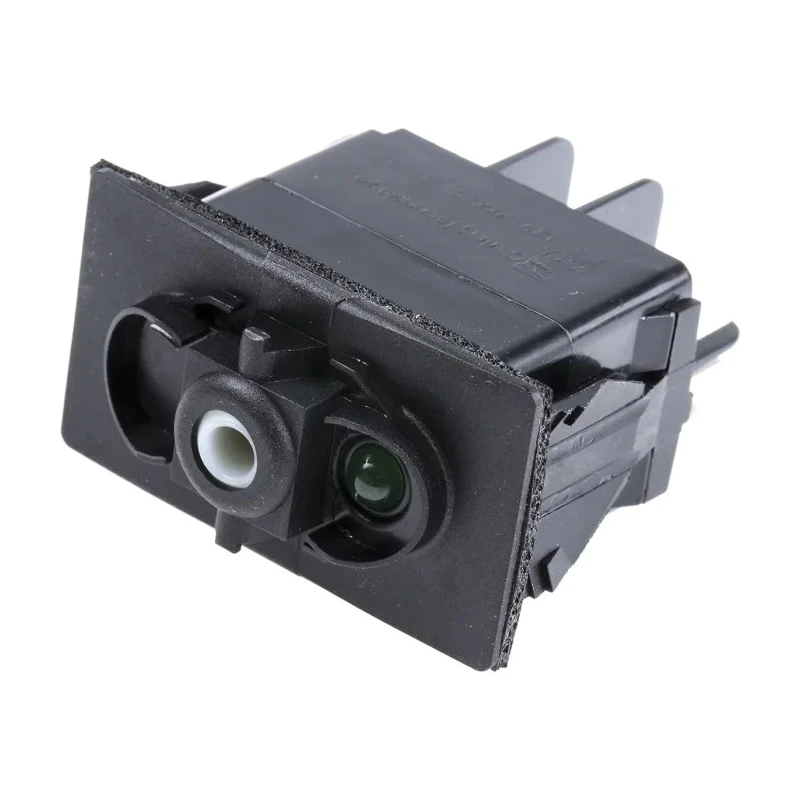

Carlingswitch Illuminated SPDT Latching On-None-On Rocker Switch Panel 20A 12V dc 250V ac RCV-37111480

Carlingswitch RCV-37111480 Illuminated SPDT Latching On-None-On Rocker Switch Panel offers reliable and efficient electrical switching for a variety of industrial, electrical, and automation applications. This switch features a single-pole double-throw (SPDT) contact configuration with a latching On-None-On operation making it suitable for controlling circuits requiring reliable positional feedback.

The housing is made of durable polyethylene terephthalate providing robustness and long-lasting performance. The panel cutout dimensions measure 21.08 x 36.83 mm, facilitating straightforward installation into control panels or equipment housings. Supporting a contact current of 20A and operational voltages of 12V dc and 250V ac, this switch meets typical electrical specifications for both low and moderate power circuits.

The product is rated IP68 when used without a panel assembly system, offering high resistance to dust and water, ideal for harsh environmental conditions. Quick connect terminals simplify installation and wiring efforts. The switch includes illuminated versions with either neon indicators or red/green LEDs with integral resistors designed for 12V operation, ensuring clear visibility of switch status.

Mechanical durability is assured with a rated life of 150,000 operations, ensuring dependable long-term use. This switch operates effectively within a temperature range from -40°C to 70°C, accommodating diverse industrial and commercial environments.

This rocker switch complies with global safety and quality standards including VDE, CE, CSA, RoHS, BS, and UL certifications, providing confidence in performance and regulatory compliance. Contact resistance is low at 10 milliohms using silver contacts, ensuring minimal electrical loss. The product is manufactured in Mexico to precise quality standards.

With its superior quality and rugged construction, the Carlingswitch RCV-37111480 is ideal for use in industrial automation, electrical panels, HVAC systems, manufacturing equipment, and other control applications requiring reliable on/off switching with illuminated feedback.

The package contains the panel Rocker Switch supplied without an actuator; actuators such as the black/green lens (model 665-556) and others are separately available. It also comes with a panel-sealing gasket to maintain the IP68 rating without panel assembly. An optional bezeled panel assembly system permits sub-assemblies to be snapped into place where IP68 rating is not required.

Explore the Electronics & Electricals category at EnvMart for more switches offering versatile control solutions compatible with your industrial needs. Features a latching On-None-On switch operation with SPDT contact configuration.

Designed with polyethylene terephthalate housing ensuring durability. Panel cutout size is precisely 21.08 x 36.83 mm for easy installation. Supports a switch contact current of 20A and voltage ratings of 12V dc and 250V ac.

IP68 rated for superior protection against dust and water ingress without panel assembly. Equipped with quick connect terminals for efficient wiring and installation. Illuminated with options for neon or LED light indicating switch status clearly.

Mechanical life expectancy rated at 150,000 operations for long-term reliability. Operates within temperature range of -40°C to 70°C suitable for diverse environments. Complies with multiple standards including VDE, CE, CSA, RoHS, BS, and UL for assured safety and quality.
