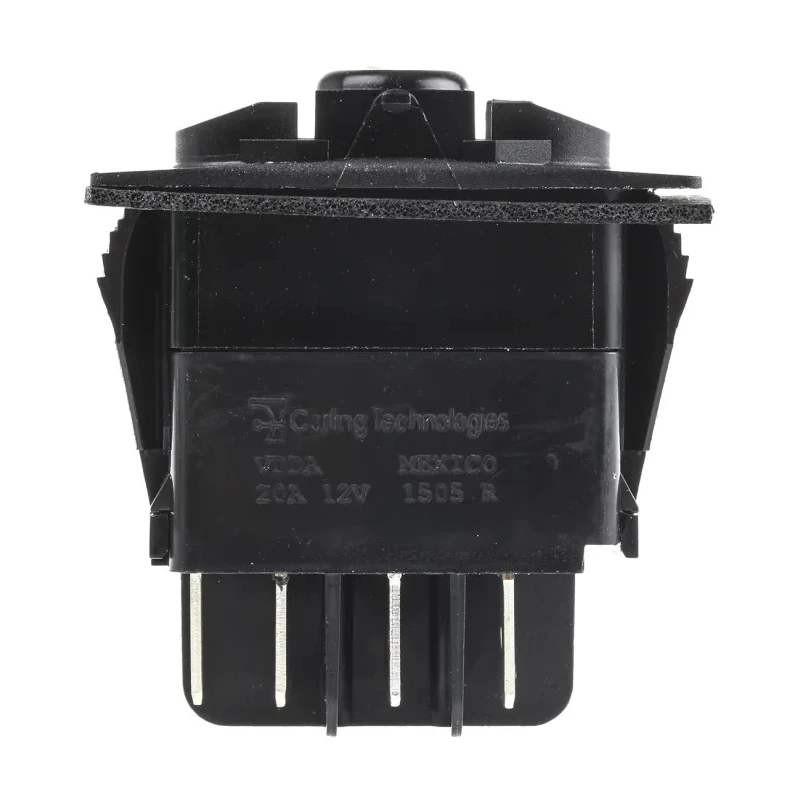

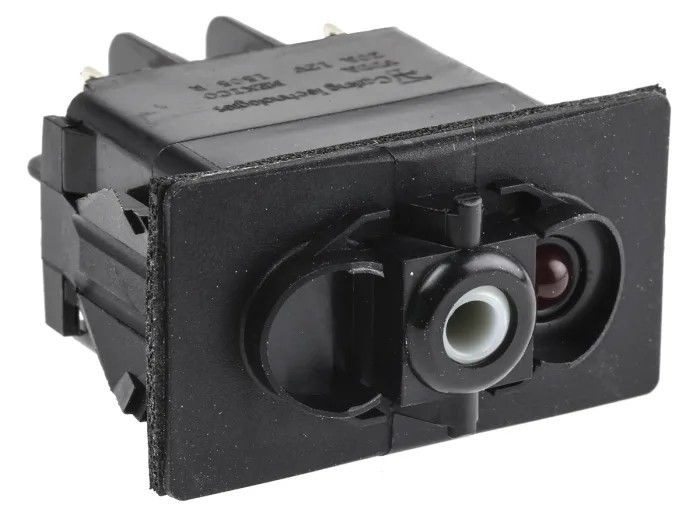

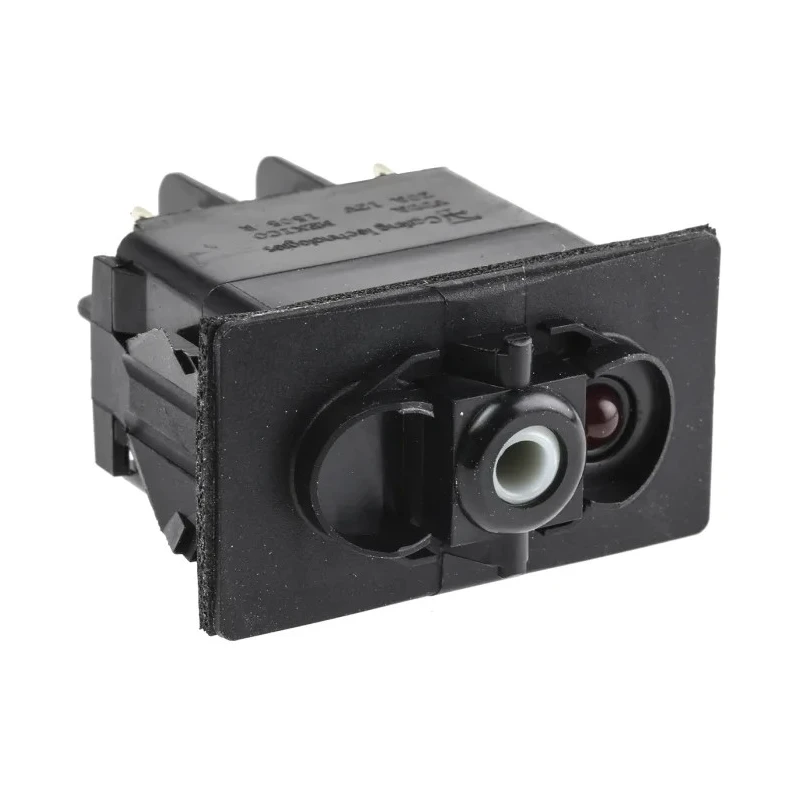

Carlingswitch Illuminated DPDT Latching On-None-On Rocker Switch Panel RCV-37111475

Carlingswitch RCV-37111475 Illuminated DPDT Latching On-None-On Rocker Switch Panel is designed for versatile industrial and electrical control applications. This switch panel provides reliable double pole double throw functionality with a latching switch operation, making it an ideal component in automation, manufacturing, and general electrical control systems.

The switch features a robust Polyethylene Terephthalate housing material that offers high durability and protects against environmental elements with an IP68 ingress protection rating when used without a panel assembly system. It fits neatly into a panel cutout of 21.08 x 36.83 mm, enabling secure installation and panel integration.

With a 20A switch contact current rating, it is well-suited to handle moderate electrical loads safely. The illuminated feature includes integrated LEDs with integral resistors designed for 12V DC operation, improving visibility and operational status indication in dark or enclosed spaces.

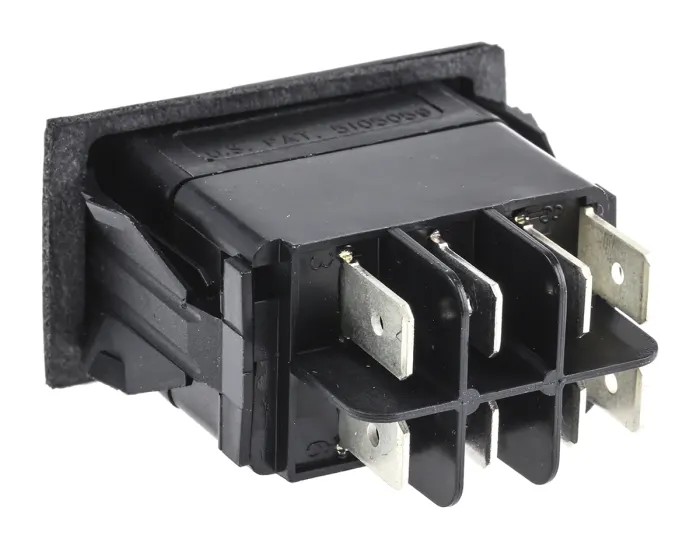

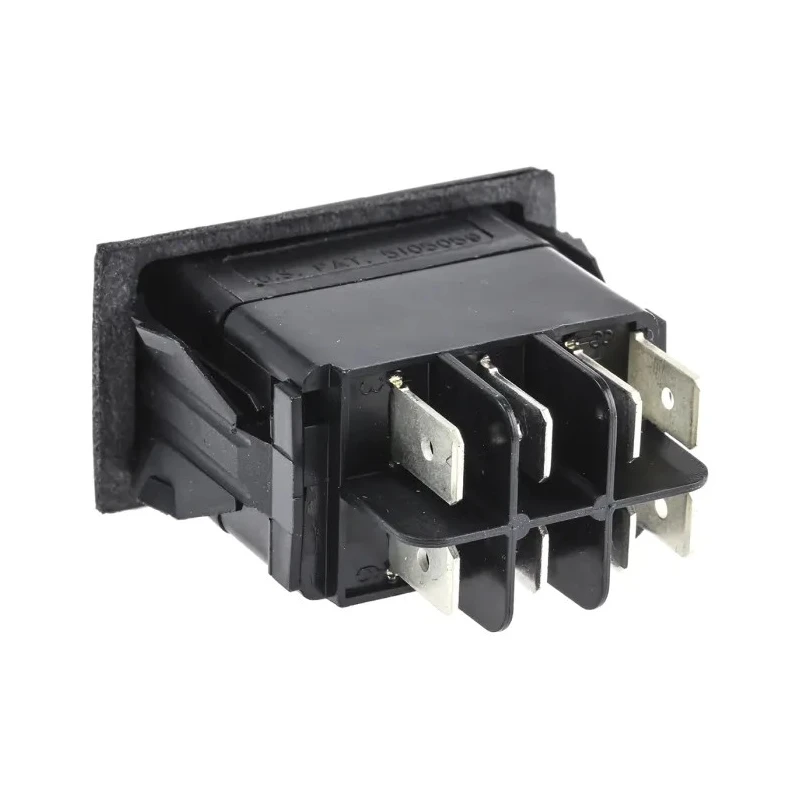

This switch is terminated with 6.35 mm quick connect fast-on terminals and comes supplied with a panel-sealing gasket to maintain environmental protection. It provides a remarkable mechanical life of 150,000 operations, ensuring dependable long-term use.

Operating temperature ranges from a minimum of -40°C to a maximum of 70°C, making it suitable for a wide array of indoor and outdoor applications under varying conditions. The contact material uses silver to ensure excellent electrical conductivity and low contact resistance of 10 mΩ, reducing power loss and ensuring reliable performance.

The product complies with numerous international standards including RoHS, VDE, CE, UL, BS, and CSA certifications, ensuring that it meets critical safety and environmental requirements.

Typical applications include industrial automation systems, electrical control panels, HVAC systems, and commercial electrical projects where reliable, illuminated switching with robust environmental resistance is essential.

This switch features a double pole double throw (DPDT) contact configuration supporting a switch contact current of 20A. It includes illumination suitable for 12V DC operation, enhancing usability in low-light environments.

The panel cutout size is precisely 21.08 x 36.83 mm, ensuring seamless mounting. Constructed with durable Polyethylene Terephthalate housing offering IP68 rating when installed without the panel assembly system. Suitable for operating temperatures from -40°C up to 70°C, making it reliable for various environments.

Terminated with 6.35mm quick connect fast-on terminals and supplied with an effective panel-sealing gasket. Offers a mechanical life expectancy of 150,000 operations, ensuring long-lasting performance. Complies with major standards including RoHS, VDE, CE, UL, BS, and CSA, confirming safety and quality.
