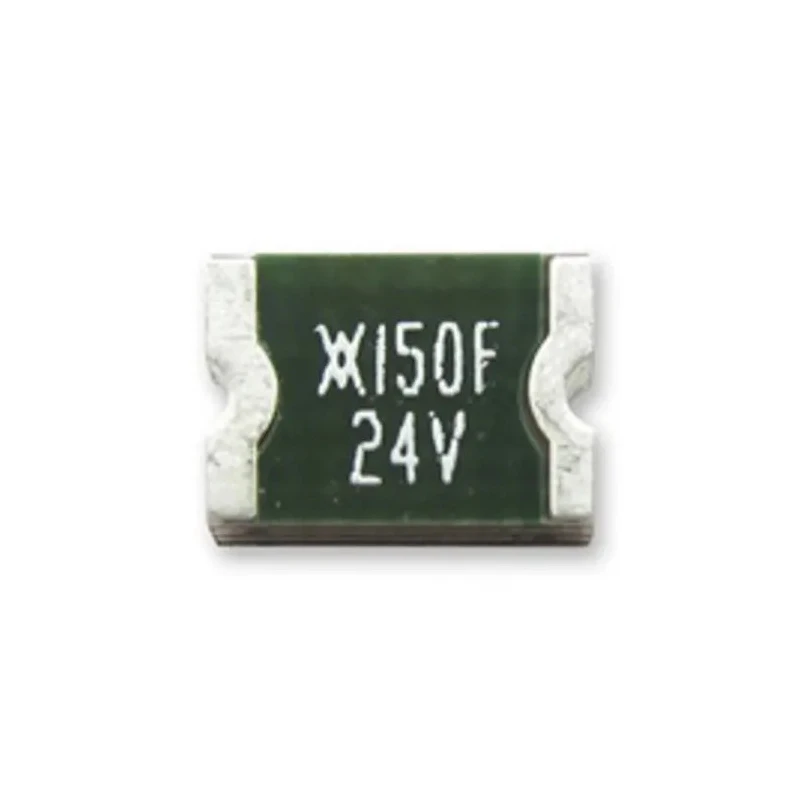

Wickmann 1.5 A Resettable Fuse 24V DC Surface-Mount MiniSMD Series RF1180-000

Wickmann RF1180-000 is a 1.5 A resettable fuse engineered for 24V DC electronic applications. This surface-mount device (SMD) is part of Wickmann's MiniSMD series designed to provide compact, reliable overcurrent protection where board space is limited.

Constructed with a polymer body and tin-plated terminals, the fuse offers robust mechanical and electrical properties. With a low resistance starting at 0.04 ohms and a maximum resistance of 120 milliohms, it ensures minimal power loss during normal operation.

The fuse features a trip current of 3 A and trips within 1.5 seconds, offering quick response to fault conditions to protect sensitive electronics. It supports a power dissipation of 1 watt and is rated for safe operation in ambient temperatures ranging from -40°C to 85°C.

This product complies with the MiniSMD F Series standards and comes in an 1812 package size, measuring approximately 4.83 mm in length, 3.41 mm in width, and 1.94 mm in height. It is manufactured in China for global electronic and automotive industries.

Ideal applications include mobile electronics, batteries, computer systems, multimedia devices, game machines, telecommunications equipment, automotive electronics, industrial control systems, and battery packs. The compact design enables integration in high-volume electronics assembly processes.

Provides reliable overcurrent protection with a trip current of 3 A. Designed for compact electronic boards where space-saving is critical. Features polymer body with tin-plated terminals for durability. Power dissipation rated at 1 watt to protect circuits from damage.

Operates safely between -40°C and 85°C ambient temperatures. Trip time fast at 1.5 seconds for effective circuit safeguarding. Low resistance with a minimum of 0.04 ohm ensuring minimal voltage drop. Measures 4.83 mm length, 3.41 mm width, and 1.94 mm height fitting tight PCB layouts.
