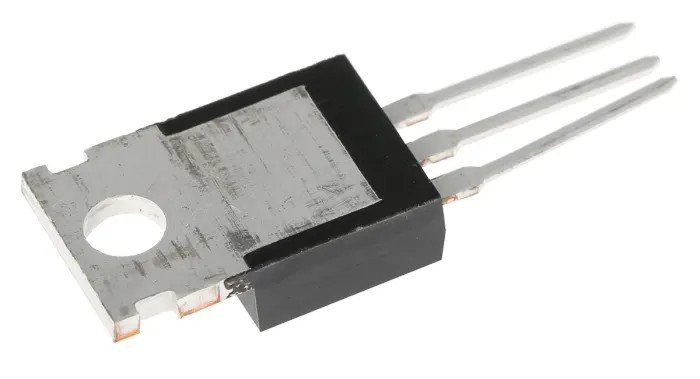

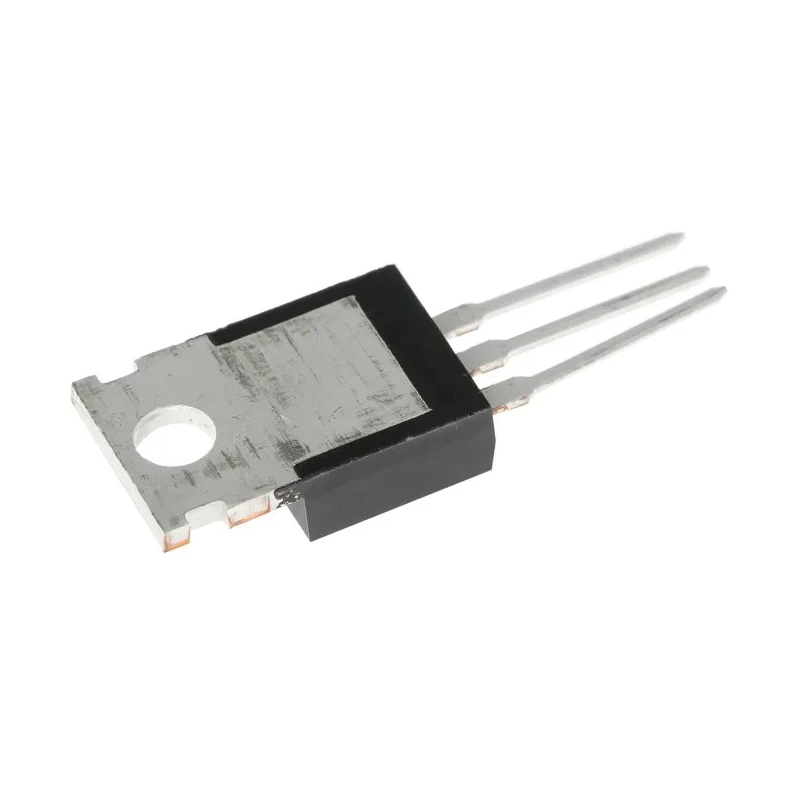

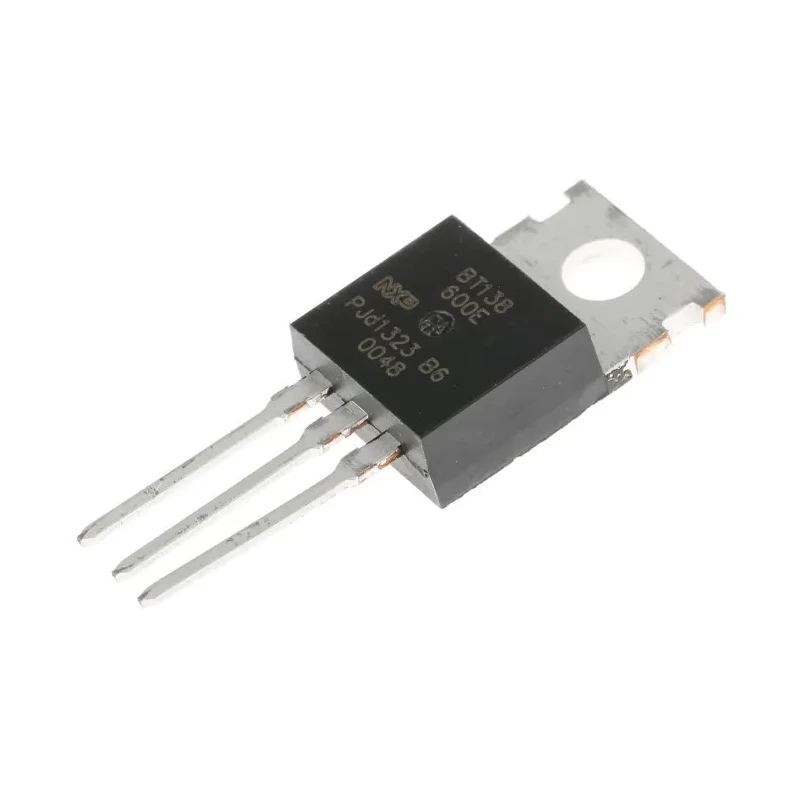

WeEn Semiconductors Co., Ltd TRIAC Through Hole 3-Pin 600 V Gate Trigger 1.5 V BT138-600E,127
Specifications
| Country of Origin | India |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 9.4mm |
| Length | 10.3mm |
| Model | BT138-600E,127 |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 12A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 105A |
| Maximum Gate Trigger Current Igt | 25mA |
| Maximum Holding Current Ih | 30mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- Rated average on-state current of 12 A ensuring reliable performance.
- Package type TO-220 for standard mounting compatibility.
- Maximum gate trigger current is 25 mA and gate trigger voltage is 1.5 V for precise control.
- Surge current rating up to 105 A for handling transient conditions.
- Operates in temperatures ranging from -40°C to 125°C ensuring versatility.
- Compact size with height 9.4 mm and length 10.3 mm for space-efficient designs.
- Complies with RoHS, ensuring environmental safety standards.
- Three-pin single configuration suited for triode alternating current control.
Product Description
WeEn Semiconductors Co., Ltd BT138-600E,127 TRIAC is a three-pin semiconductor device housed in a TO-220 package with through hole mounting, rated at 600 V for reliable AC power control applications. It provides efficient switching and control capabilities for alternating current circuits in industrial, commercial, and household electronic systems.
This TRIAC model features a rated average on-state current of 12 A, supporting significant load capabilities with a surge current tolerance of 105 A, allowing it to handle transient surges reliably. The device’s gate trigger voltage of 1.5 V and gate trigger current of 25 mA enable precise triggering for sensitive control applications.
Designed for durability and stability, the operating temperature range from -40°C to 125°C makes it suitable for harsh environments and ensures consistent operation over extended periods. Its compact dimensions of 9.4 mm height and 10.3 mm length facilitate ease of integration onto printed circuit boards where space constraints exist.
The TO-220 package allows easy mounting and heat dissipation, making the BT138-600E,127 ideal for power switching tasks in HVAC systems, lighting controls, motor speed controls, and other industrial automation equipment. Its RoHS compliance guarantees environmentally responsible manufacturing and disposal.
Rated average on-state current of 12 A. TO-220 package with through hole mounting. Maximum gate trigger current 25 mA and gate trigger voltage 1.5 V. Surge current handling of 105 A for transient tolerance. Operating temperature range from -40°C to 125°C.
Compact physical dimensions for versatile applications. Compliant with RoHS environmental standards. Single configuration, 3-pin for AC switching applications.
This TRIAC is suitable for diverse electronic control circuits in industrial, HVAC, lighting, and other power semiconductor applications. Explore additional power semiconductor products to enhance your electronic design solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for the BT138-600E,127 TRIAC is 12 A.
The maximum gate trigger voltage for this TRIAC is 1.5 V.
This TRIAC has a surge current rating of up to 105 A.
The operating temperature range for the BT138-600E,127 is from -40°C to 125°C.
The BT138-600E,127 is housed in a TO-220 package, suitable for through hole mounting.
This model features a three-pin configuration.
The maximum gate trigger current for the BT138-600E,127 is 25 mA.
The dimensions of this TRIAC are 9.4 mm in height and 10.3 mm in length.
The peak on-state voltage for the BT138-600E,127 is 1.65 V.
Yes, this TRIAC complies with RoHS environmental standards.
This TRIAC is suitable for AC power control applications in industrial, HVAC, lighting, and other electronic control circuits.
The repetitive peak reverse voltage rating for the BT138-600E,127 is 600 V.
