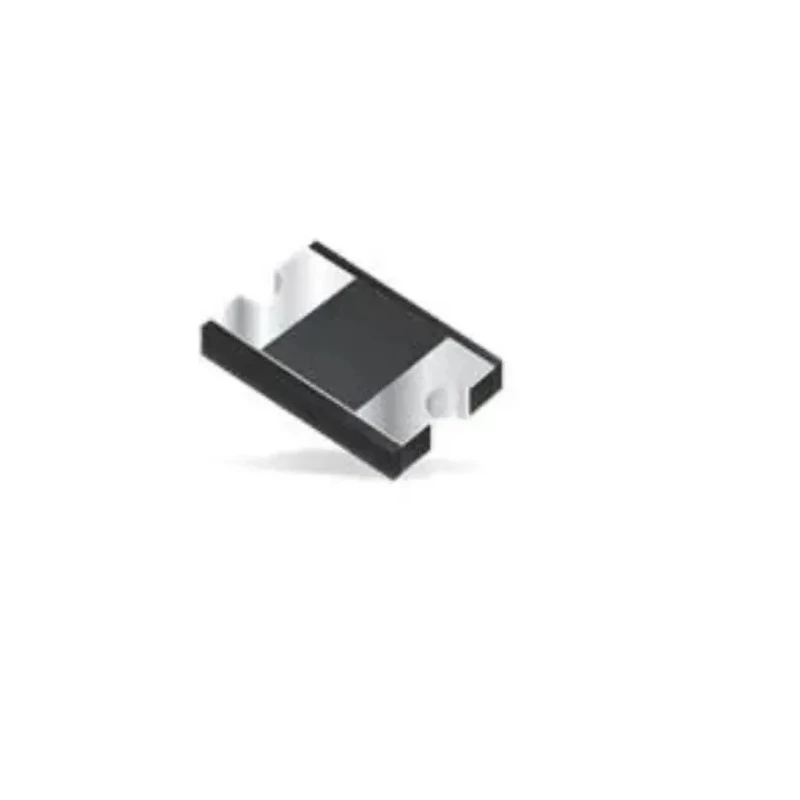

Bourns Rectifier Diode 600V 2A Surface Mount DO-214AA Single Configuration CD214B-S2J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 5.2mm |
| Model | CD214B-S2J |
| Width | 3.6mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.96V |
| Reverse voltage | 600 V |
Key Features
- Suitable for single-phase rectification and power supply protection.
- Maximum continuous forward current of 2A ensures reliable performance.
- Peak reverse repetitive voltage rating of 600V for robust operation.
- Surface mount DO-214AA form factor simplifies PCB assembly.
- Low forward voltage drop of 0.96V reduces power losses.
- Operating temperature range from -65°C to 175°C for diverse environments.
- High surge capability with peak non-repetitive forward surge current up to 50A.
- Automotive standard AEC-Q101 qualified for demanding applications.
Product Description
Bourns CD214B-S2J is a high-performance single rectifier diode designed for demanding electronics applications requiring robust voltage and current handling. With a maximum continuous forward current of 2A and a peak reverse repetitive voltage of 600V, this device is ideal for rectification and protection circuits in power supplies, chargers, and industrial systems.
Featuring a surface-mount DO-214AA package, the diode offers easy integration into modern PCB layouts, supporting automatic assembly processes. The device delivers low forward voltage drop of 0.96V, which reduces power consumption and improves efficiency across circuits.
The CD214B-S2J diode boasts an exceptional operating temperature window from -65°C to 175°C, enabling its use in harsh industrial, automotive, and commercial environments. It can withstand peak non-repetitive forward surge currents up to 50A, offering resilience against transient loads.
Compliance with automotive standard AEC-Q101 underscores its quality and suitability for applications in vehicles, as well as other rugged-use scenarios. The diode is RoHS compliant and halogen-free, aligning with industry safety and environmental standards.
Its compact dimensions - 5.2mm length, 3.6mm width, and 1.2mm height - make it perfect for space-constrained designs in embedded systems, control units, and power management boards.
Maximum continuous forward current of 2A enables use in power rectification and switching circuits. 600V voltage rating supports high-voltage protection applications. Surface mount DO-214AA package for modern PCB designs and efficient production.
Low forward voltage drop reduces heat generation and energy waste. Wide operating temperature range fits demanding industrial and automotive use cases.
Typical applications include industrial automation, power supplies, battery chargers, automotive electronics, and commercial hardware. Its reliability and strong ratings make it an excellent choice for both replacement and new installations requiring rectification and protection.
Explore more Bourns semiconductor products and advanced rectifier Diodes in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the CD214B-S2J rectifier diode is 2A, ensuring reliable performance in various applications.
This diode has a peak reverse repetitive voltage rating of 600V, making it suitable for high-voltage applications.
The forward voltage drop for this model is 0.96V, which helps to reduce power losses in circuits.
The operating temperature range for the CD214B-S2J is from -65°C to 175°C, allowing it to function in diverse environments.
The CD214B-S2J uses a surface mount DO-214AA package type, which simplifies PCB assembly.
This rectifier diode can withstand a peak non-repetitive forward surge current of up to 50A, providing resilience against transient loads.
Yes, the CD214B-S2J is qualified under the automotive standard AEC-Q101, making it suitable for demanding automotive applications.
The dimensions of this diode are 5.2mm in length, 3.6mm in width, and 1.2mm in height, making it compact for space-constrained designs.
The peak reverse current for the CD214B-S2J is rated at 5μA, which is relatively low, contributing to its efficiency.
This model is suitable for applications such as industrial automation, power supplies, battery chargers, and automotive electronics.
This rectifier diode has a pin count of 2, which is standard for its configuration.
The country of origin for this diode is India, indicating its manufacturing location.
