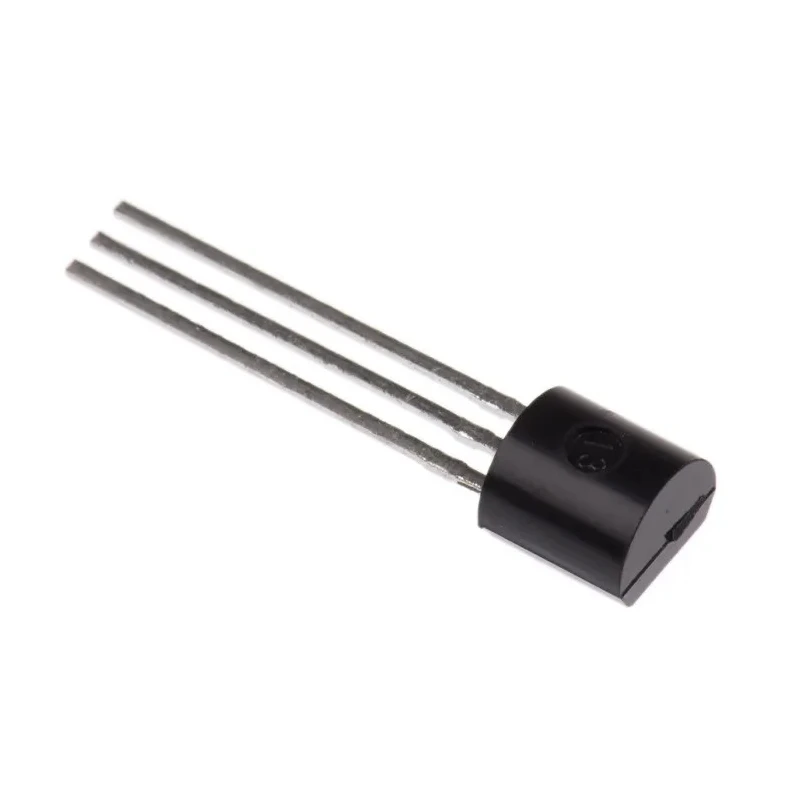

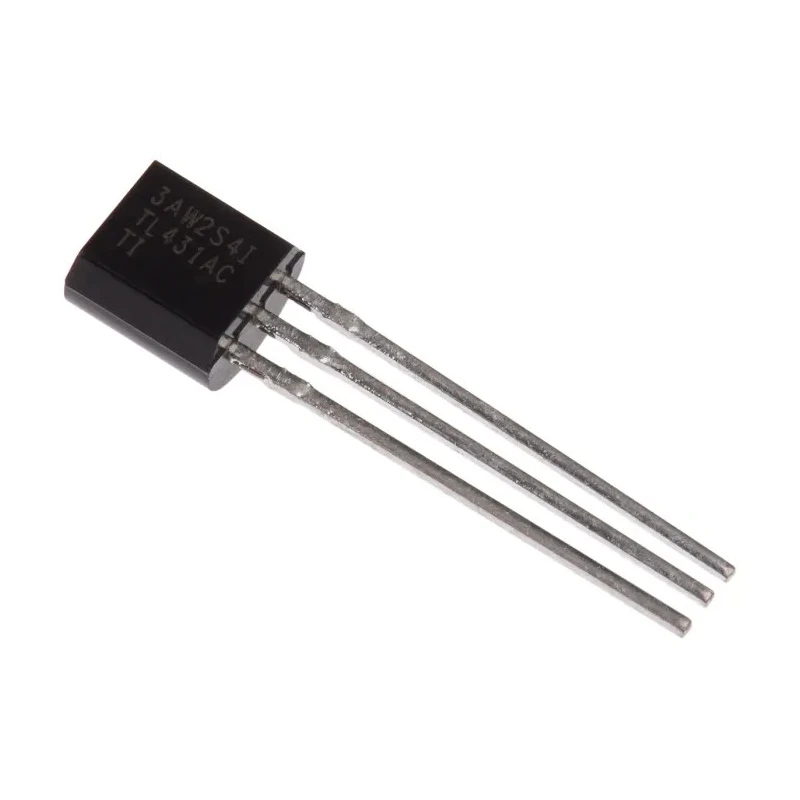

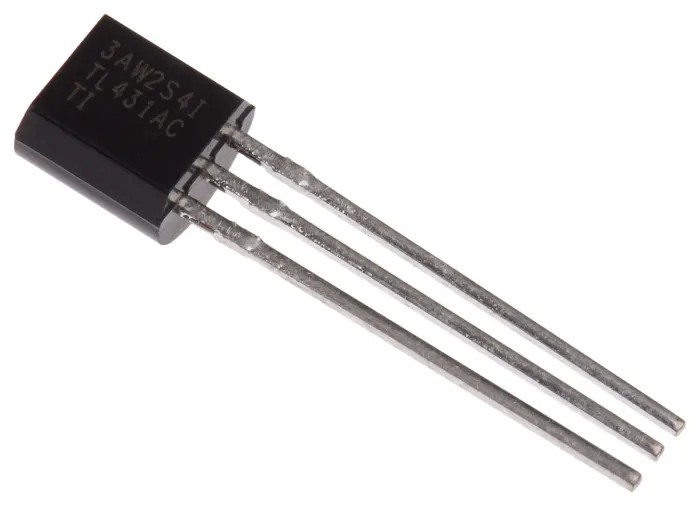

Texas Instruments Adjustable Shunt Voltage Reference ±1% Accuracy 36V 100mA 3-Pin TO-92 TL431ACLP

Texas Instruments TL431ACLP is an Adjustable Shunt Voltage Reference designed for industrial and electronic applications requiring precise voltage regulation. Featuring an initial accuracy of ±1%, this 3-pin TO-92 packaged device offers reliable adjustable voltage referencing up to 36V with a maximum input voltage of 37V.

The device delivers an output current of 100mA and operates within a temperature range of 0°C to 70°C, ensuring stable and consistent performance across typical industrial environmental conditions. Its shunt topology contributes to efficient voltage regulation in low-voltage circuits.

The compact TO-92 through-hole package, measuring 4.83mm in length and 3.68mm in height, is ideal for prototyping and production runs requiring manual or automated assembly on printed circuit boards.

This voltage reference model TL431ACLP from Texas Instruments is widely used in power management ICs, instrumentation, and precision voltage control circuits, supporting applications across electronics manufacturing, laboratory instruments, HVAC systems, and general industrial electronics.

Adjustable reference voltage with ±1% accuracy for precision applications. Maximum input voltage of 37V suitable for medium voltage regulation. Output current capacity of 100mA to drive standard loads. Temperature coefficient of 92 ppm/°C enables stable performance.

3-pin TO-92 package designed for through-hole mounting applications. Shunt topology optimizes power management efficiency. Operating temperature range from 0°C to 70°C for industrial environments. Compact device footprint for space-constrained designs.

Non-automotive standard helps in general-purpose electronics integration. Component from Texas Instruments ensures reliability and quality. Explore the wide range of Voltage References and power management ICs at EnvMart to find complementary products for your electronic design and manufacturing needs.
