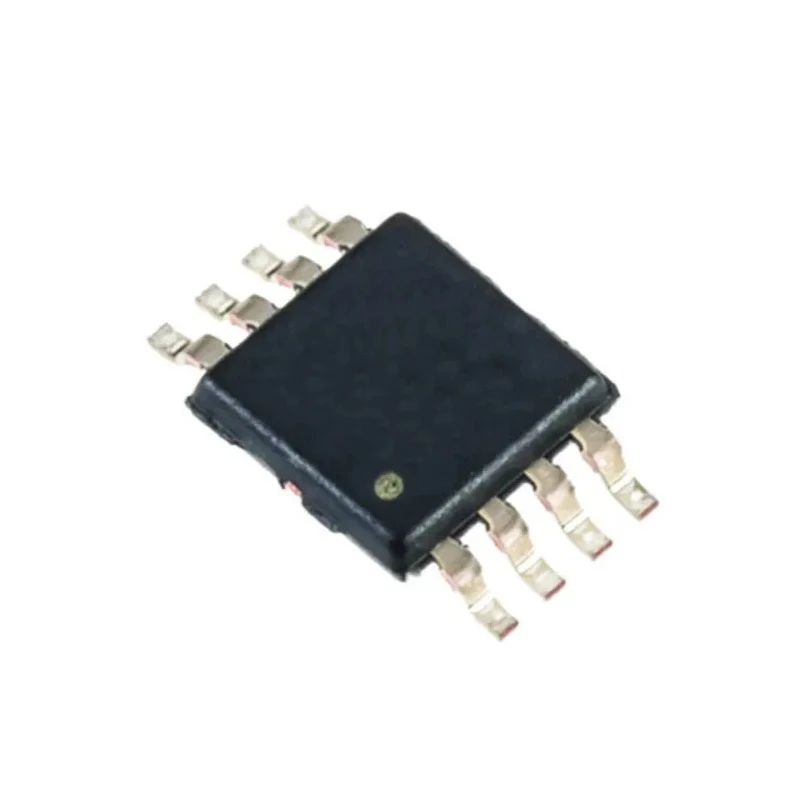

Texas Instruments Fixed Series Voltage Reference 4.1V ±0.05% 30mA 8-Pin VSSOP Surface Mount REF5040AIDGKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 950μm |
| Length | 3.1mm |
| Model | REF5040AIDGKT |
| Mount Type | Surface |
| Output type | Fixed |
| Series | REF5040 |
| Temperature Coefficient | 3 ppm/°C |
| Output Current | 30mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Load Regulation | 50 ppm/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 18V |
| Line Regulation | 1 ppm/V |
| Minimum Input Voltage | 4.3V |
| Pin Count | 8 |
| Reference Voltage | 4.1V |
| Initial Accuracy | ±0.05 % |
Key Features
- Provides a stable fixed reference voltage of 4.1 volts.
- Ensures initial accuracy of ±0.05% for precise applications.
- Supports a maximum output current of 30 milliampere.
- Operates over a wide temperature range from -40°C to 125°C.
- Package type is surface mount 8-Pin VSSOP for compact PCB integration.
- Temperature coefficient is 3 ppm/°C ensuring minimal drift with temperature.
- Maximum input voltage rating is 18 volts for robust operation.
- Line regulation of 1 ppm per volt for consistent output voltage.
Product Description
Texas Instruments REF5040AIDGKT Fixed Series Voltage Reference is a precision semiconductor device designed for applications requiring a stable, accurate reference voltage of 4.1 volts. Housed in a compact 8-Pin VSSOP surface mount package, this device combines high initial accuracy of ±0.05% and a low temperature coefficient of 3 ppm/°C to deliver reliability across a wide operating temperature range of -40°C to 125°C.
With a maximum output current capability of 30 mA and input voltage tolerance up to 18 V, the REF5040AIDGKT ensures consistent performance with excellent line regulation of 1 ppm/V and load regulation of 50 ppm/mA. Its compact dimensions of 3.1 mm length and 950 μm height make it suitable for space-constrained electronic circuits.
This voltage reference IC features a series topology and is designed explicitly as a fixed output type. It does not comply with automotive standards but performs robustly in a diverse array of industrial and consumer electronic applications including power management, instrumentation, and signal conditioning circuits.
Typical uses include analog-to-digital converters, digital-to-analog converters, and sensor signal processing where precise voltage references are critical. The surface mount VSSOP package facilitates high-density PCB assembly and automatic production processes.
Provides a stable fixed reference voltage of 4.1 volts. Ensures initial accuracy of ±0.05% for precise applications. Supports a maximum output current of 30 milliampere. Operates over a wide temperature range from -40°C to 125°C.
Package type is surface mount 8-Pin VSSOP for compact PCB integration. Temperature coefficient is 3 ppm/°C ensuring minimal drift with temperature. Maximum input voltage rating is 18 volts for robust operation. Line regulation of 1 ppm per volt for consistent output voltage.
Load regulation rated at 50 ppm per milliampere load change. Compact dimensions with 3.1 mm length and 950 μm height enable space-saving designs.
This voltage reference IC is ideal for electronics, laboratory instrumentation, industrial control systems, and power supply regulation. Browse more Power Management ICs and Voltage References at EnvMart for comprehensive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable fixed reference voltage of 4.1 volts.
It ensures an initial accuracy of ±0.05%, making it suitable for precise applications.
The REF5040AIDGKT supports a maximum output current of 30 milliamperes.
It operates over a wide temperature range from -40°C to 125°C.
The maximum input voltage rating is 18 volts, ensuring robust operation.
This model has compact dimensions of 3.1 mm in length and 950 μm in height.
It features excellent line regulation of 1 ppm per volt for consistent output voltage.
It comes in a surface mount 8-Pin VSSOP package, suitable for compact PCB integration.
The load regulation is rated at 50 ppm per milliampere load change.
It has a temperature coefficient of 3 ppm/°C, ensuring minimal drift with temperature changes.
Typical applications include analog-to-digital converters, digital-to-analog converters, and sensor signal processing.
The REF5040AIDGKT utilizes a series topology, designed explicitly as a fixed output type.
