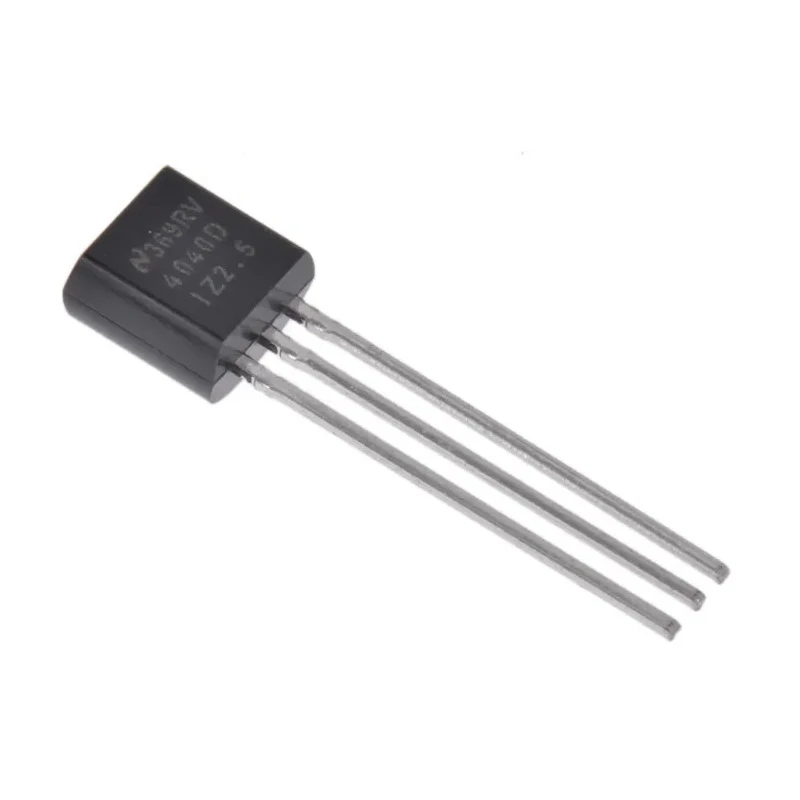

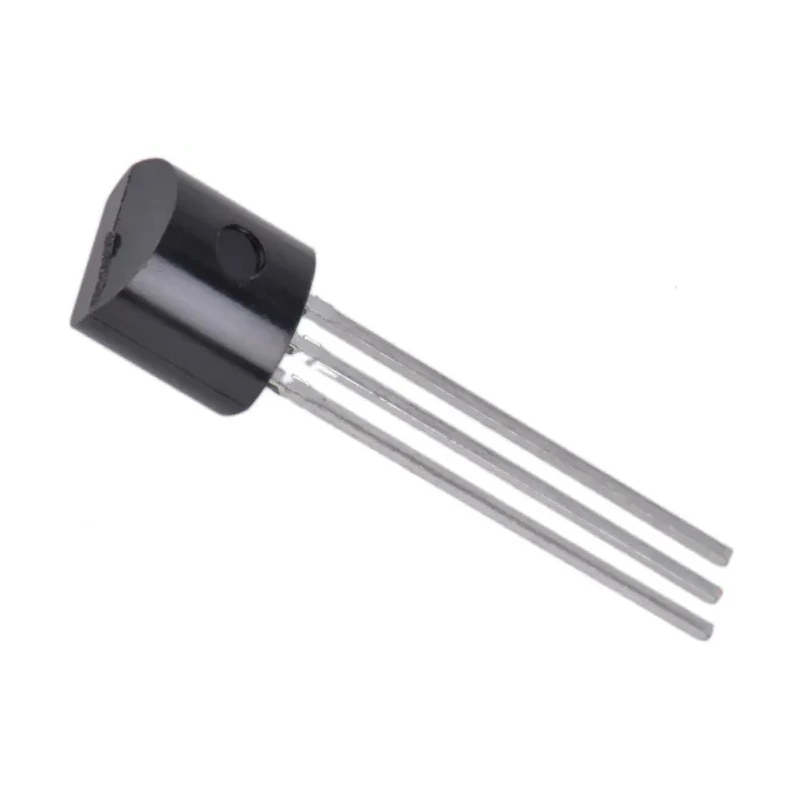

Texas Instruments Fixed Shunt Voltage Reference 2.5V TO-92 Package ±1% Accuracy LM4040DIZ-2.5/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM4040DIZ-2.5/NOPB |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | LM4040 |
| Temperature Coefficient | 20 ppm/°C |
| Output Current | 15mA |
| Topology | Shunt |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-92 |
| Load Regulation | 8 mV |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Reference Voltage | 2.5V |
| Initial Accuracy | ±1 % |
| I.C LM4040D12-5.0Brand | NEUTRAL |
Key Features
- Offers a stable 2.5V reference voltage with high precision.
- Features through-hole TO-92 package suitable for easy mounting.
- Operates reliably from -40°C to 85°C ambient temperatures.
- Provides a 15mA output current capability for versatile applications.
- Uses a shunt topology ensuring steady voltage regulation.
- Designed with a temperature coefficient of 20 ppm/°C for thermal stability.
- Compliant with automotive standard AEC-Q100 for high reliability.
- Compact dimensions of 5.2mm in height and length.
Product Description
Texas Instruments LM4040DIZ-2.5/NOPB is a high precision fixed shunt voltage reference offering a stable 2.5V output voltage with ±1% initial accuracy. Packaged in an industry-standard TO-92 through-hole package, this device is ideal for applications requiring reliable and accurate voltage references.
This voltage reference provides an output current capability of 15mA and employs a shunt topology for consistent voltage regulation. It operates over a wide temperature range from -40°C to 85°C, with a temperature coefficient of 20 ppm/°C, ensuring thermal stability in diverse environments.
The device features a compact form factor with dimensions of 5.2mm in height and length, facilitating easy mounting on printed circuit boards. It meets the automotive standard AEC-Q100, indicating its robustness and suitability for automotive and industrial use cases.
Key technical characteristics include a load regulation of 8 mV and a 3-pin configuration that simplifies circuit design integration. Applications include power management systems, analog-to-digital converters, and instrumentation where precise voltage references are crucial.
Stable 2.5V fixed reference voltage with ±1% initial accuracy. Through-hole TO-92 package for ease of assembly. Wide operating temperature range from -40°C to 85°C. Output current capacity up to 15mA. Shunt topology for consistent voltage regulation.
Temperature coefficient of 20 ppm/°C ensures precision over temperatures. Meets automotive standard AEC-Q100 for high reliability. Compact 5.2mm x 5.2mm dimensions. Load regulation value of 8 mV suitable for stable power management.
Three-pin configuration facilitates connection in various circuits.
This product is widely used in industrial electronics, automotive electronics, laboratory instruments, and other precision electronic applications requiring a dependable voltage reference. The TO-92 package enables through-hole mounting, preferred in prototype and production circuit boards for ease of handling and durability.
Explore more Voltage Reference solutions from Texas Instruments and other manufacturers on EnvMart to suit your design and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable fixed reference voltage of 2.5V.
The initial accuracy of this voltage reference is ±1%.
It has an output current capability of 15mA.
The operating temperature range is from -40°C to 85°C.
The load regulation value is 8 mV, ensuring stable power management.
It is packaged in a TO-92 through-hole package, suitable for easy mounting.
The temperature coefficient is 20 ppm/°C, which ensures thermal stability.
This model features a 3-pin configuration, simplifying circuit design integration.
Yes, it meets the automotive standard AEC-Q100 for high reliability.
It employs a shunt topology for consistent voltage regulation.
The dimensions are 5.2mm in height and 5.2mm in length.
It is widely used in power management systems, analog-to-digital converters, and instrumentation requiring precise voltage references.
