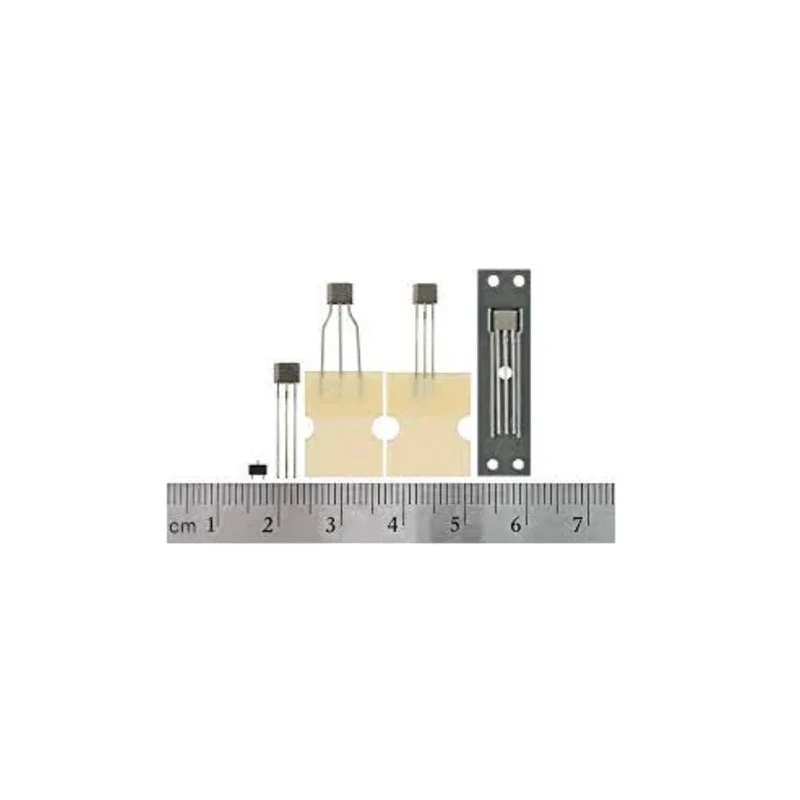

Honeywell Technologies Digital Bipolar Surface Hall Effect Sensor, 3 V-24 V, 3-Pin SOT-23 Package SS361RT

Honeywell Technologies SS361RT is a digital Hall effect sensor IC in a compact 3-pin SOT-23 package designed for surface mounting. It detects magnetic fields from bipolar magnets, making it suitable for use in industrial, automotive, and electronic applications where reliable magnetic field sensing is needed.

The device operates on a wide supply voltage range from 3 V to 24 V, providing flexibility for diverse circuit requirements. Its enhanced sensitivity and robust design include built-in reverse voltage protection and a wide operating temperature range from -40°C up to 150°C, ensuring dependable performance even in harsh environments.

Measuring only 2.9 mm by 1.6 mm by 1.4 mm, the sensor's compact size facilitates integration into space-constrained PCB layouts. The low supply current of 3.5 mA supports energy-efficient designs. Although it is not automotive certified, it is suitable for various electronic and industrial sensing applications.

The sensor responds robustly to alternating magnetic poles, making it an ideal choice for motion detection, position sensing, and magnetic field monitoring in laboratory, manufacturing, automotive diagnostics, and HVAC control systems.

The sensor operates over a wide supply voltage range of 3 V to 24 V. It features a compact 3-pin SOT-23 package suitable for surface mount. Offers enhanced sensitivity for detecting magnetic fields from permanent magnets or electromagnets.

Built-in reverse voltage protection ensures reliable operation and durability. Operates reliably within a wide temperature range from -40°C to 150°C. Small form factor dimensions of 2.9 mm length, 1.6 mm width, and 1.4 mm height enable easy integration into compact circuits.

Designed for digital switching applications responding to alternating north and south magnetic poles. Supply current is low at 3.5 mA, making it suitable for low-power designs. The sensor series is SS360, with no specific automotive certification.

With proven reliability and compact design, the Honeywell Technologies SS361RT Hall Effect Sensor is a trusted choice for electronic component professionals and engineers seeking accurate magnetic sensing for integration into a wide range of industrial and electronic equipment.
