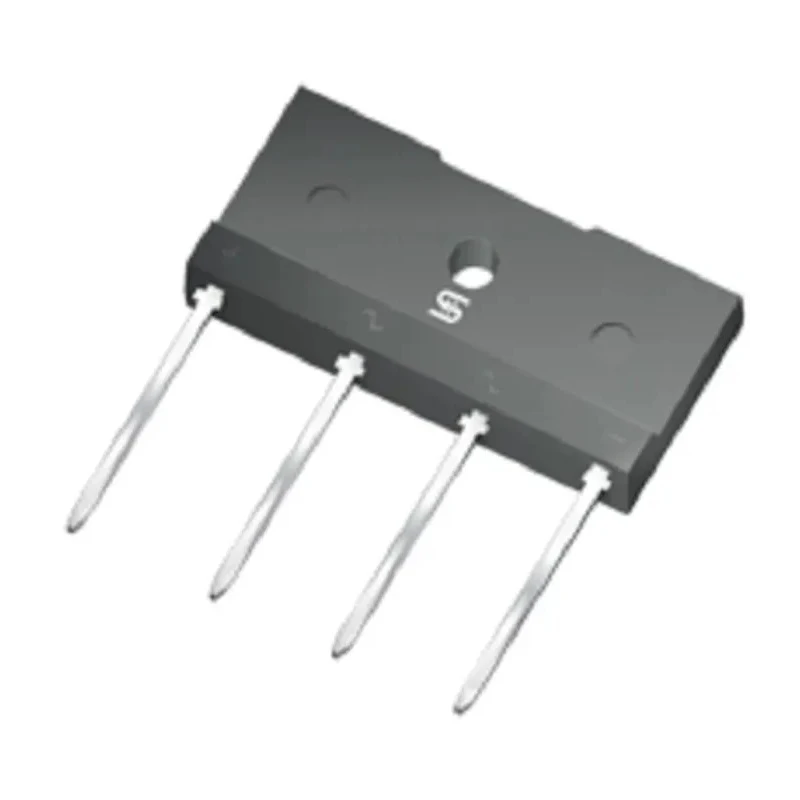

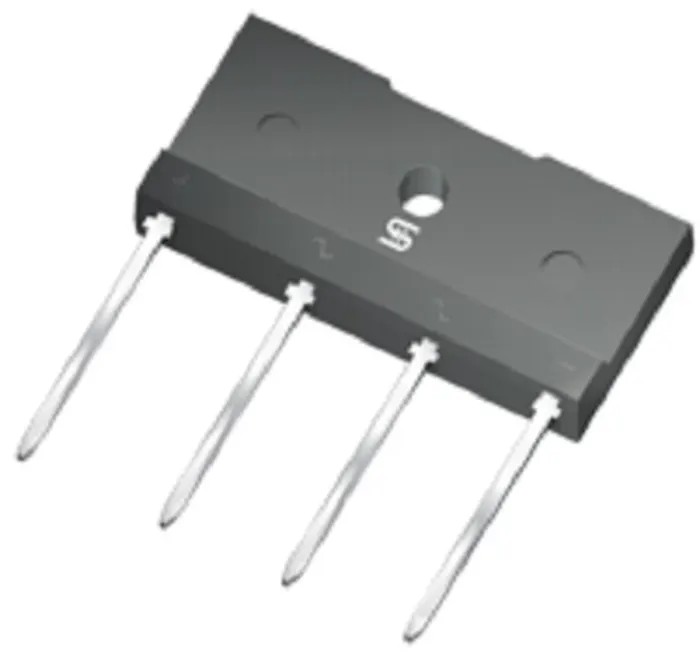

Taiwan Semiconductor Bridge Rectifier Quad Configuration, 800 V Peak Reverse Voltage, 144 A Surge Current T10JA06G-K

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier Quad Configuration, 800 V Peak Reverse Voltage, 144 A Surge Current T10JA06G-K

Name: Taiwan Semiconductor Bridge Rectifier Quad Configuration, 800 V Peak Reverse Voltage, 144 A Surge Current T10JA06G-K
Brand: Taiwan Semiconductor
SKU: 178276



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	29.3mm
Length	30mm
Model	T10JA06G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	IEC 61249-2-21, RoHS, UL
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	10A
Peak Forward Voltage Vf	1.1V

Key Features

Features a through-hole mount type with TS-6PL package for easy PCB integration.
Offers a maximum continuous forward current of 10 A ensuring reliable performance.
Operates within a wide temperature range from -55°C to 150°C.
Glass passivated chip junction enhances durability and stability.
Ideal for switching mode power supplies, adapters, and lighting applications.
High surge current capability supports transient load conditions.
RoHS compliant and halogen-free per IEC 61249-2-21 environmental standards.
UL recognized for safety and quality assurance, file number E-326243.

Product Description

Taiwan Semiconductor T10JA06G-K Bridge Rectifier is a high-performance quad configuration component designed to withstand peak reverse voltages up to 800 V and surge currents of 144 A. This semiconductor device integrates a glass passivated chip junction providing enhanced reliability and stability under demanding electrical conditions.

The rectifier uses a through-hole mount type within a TS-6PL package, allowing for straightforward PCB assembly, making it suitable for industrial and commercial electronic manufacturing processes. It supports a continuous forward current of 10 A, ensuring robust operation for switching mode power supplies, adapters, and lighting controls.

Operating temperature ranges from -55°C to 150°C, the device remains stable across harsh thermal environments. It complies with stringent environmental standards by being RoHS compliant and halogen-free according to IEC 61249-2-21, supporting eco-friendly product building.

With UL recognition (file # E-326243), the rectifier meets international safety and quality benchmarks. Its compact physical dimensions (30 mm length and 29.3 mm height) support integration into size-constrained circuit designs without compromising electrical performance.

Through-hole mounting promoting durability and ease of installation. Quad diode configuration enhancing rectification efficiency. High forward surge current capability protects against transient stresses. Glass passivated chip junction for long-term reliability.

Wide operating temperature range suitable for demanding industrial applications. RoHS compliant and halogen-free ensuring environmental safety. UL recognized to meet international certification standards. Ideal for SMPS, power adapters, and lighting electronic systems.

This component is a critical building block for electronic engineers working in industrial, commercial, and HVAC applications where durable and efficient power conversion is needed. Browse more semiconductor and discrete component products for diverse electronic design needs at EnvMart.
