Bourns Schottky Bridge Rectifier 100 V 30 A 4-Pin Single SMT Surface Mount CD-HD01

Bourns CD-HD01 Schottky Bridge Rectifier is a high-performance discrete semiconductor device designed for converting alternating current (AC) input into direct current (DC) output with enhanced efficiency and reliability. This 4-pin single phase bridge rectifier features Schottky barrier technology, providing an ultra-low forward voltage drop that reduces power loss and improves overall circuit efficiency.

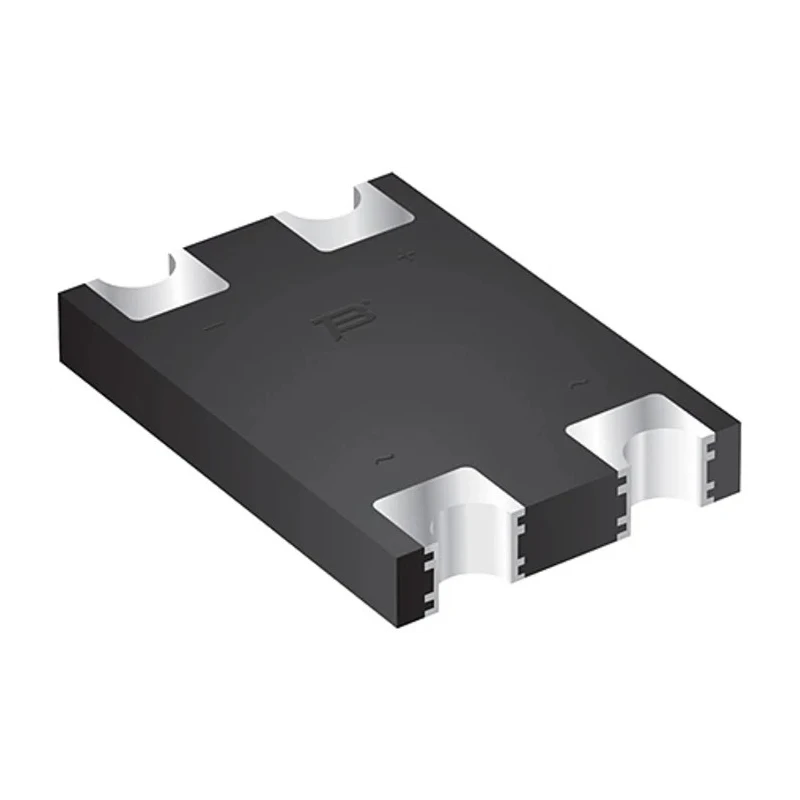

The device is surface mount technology (SMT) packaged in a compact low-profile form factor measuring 6.25 mm in length, 4.85 mm in width, and 1.22 mm in height, facilitating integration into modern automated circuit assemblies. It supports a forward current of 1 ampere and withstands peak non-repetitive forward surge currents up to 30 amperes, making it suitable for transient load conditions.

With a peak reverse repetitive voltage rating of 100 volts and operating temperature range from -55°C to 125°C, the CD-HD01 ensures robust performance across various industrial and commercial electronics applications. Despite the absence of specific automotive standards compliance, it serves well in power conversion, industrial controls, and electronic circuit design requiring efficient rectification components.

Features Schottky barrier technology for ultra low forward voltage drop. Compact surface mount (SMT) package suitable for automated assembly. Supports a maximum forward current of 1 ampere with 850 mV peak forward voltage.

Operates reliably within -55°C to 125°C temperature range. Designed with 4 pins in a single phase bridge rectifier configuration. Peak reverse repetitive voltage rating of 100 V ensures durability in power applications. Peak non-repetitive forward surge current is 30 A, suitable for transient conditions.

Dimensions 6.25 mm length, 4.85 mm width, and 1.22 mm height for low-profile usage. Ideal for industrial, semiconductor, and electronic component manufacturing and repair applications.
