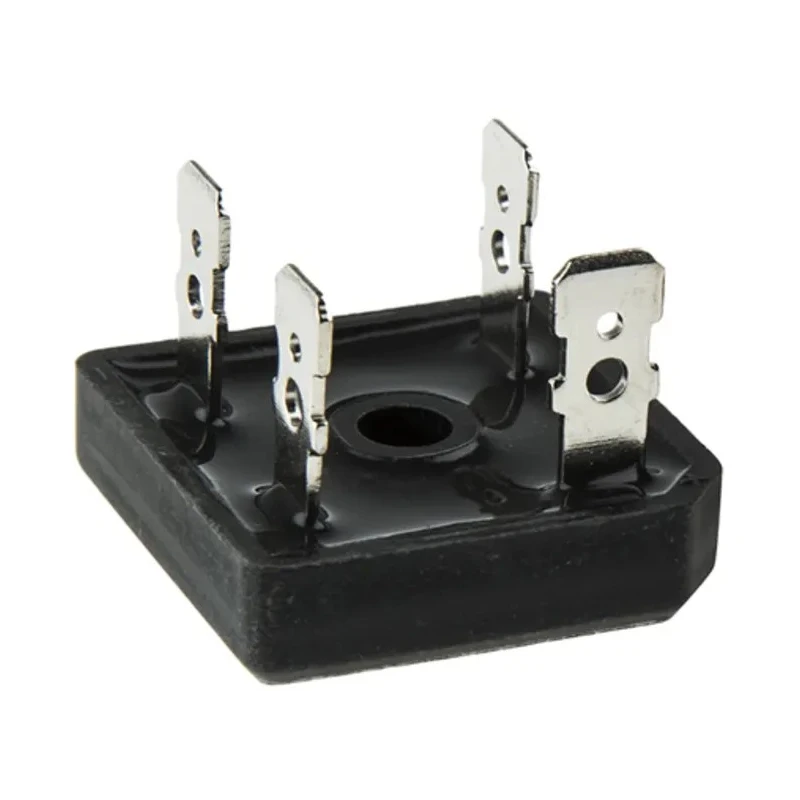

Fagor Electronica Bridge Rectifier 1000 V 400 A 4-Pin Single FB3510-B500/440-35

Free Delivery in India | Lowest Global Shipping Charges

Fagor Electronica Bridge Rectifier 1000 V 400 A 4-Pin Single FB3510-B500/440-35

Name: Fagor Electronica Bridge Rectifier 1000 V 400 A 4-Pin Single FB3510-B500/440-35
Brand: Fagor Electronica
SKU: 191484
Price: 7.04 USD
Availability: InStock



Category Bridge Rectifier Brand Fagor Electronica Condition New

Specifications

Country of Origin	Thailand
Brand	Fagor Electronica
Height	7.87mm
Length	29mm
Model	FB3510-B500/440-35
Width	29mm
Mount Type	Through Hole
Series	FB
Configuration	Single
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	35A
Peak Forward Voltage Vf	1.1V

Key Features

Rated for a maximum operating temperature of 150°C.
Supports forward current of 35 A for continuous operation.
Features through hole mount type for easy PCB integration.
Operates reliably from -55°C to 150°C ambient temperature range.
Compact dimensions measuring 29 mm length, 29 mm width, and 7.87 mm height.
Designed with single-phase configuration and 4-pin count.
Peak forward voltage is 1.1 V with minimal peak reverse current of 5 μA.
Manufactured in Thailand ensuring quality standards.

Product Description

Fagor Electronica FB3510-B500/440-35 Bridge Rectifier is designed for efficient power electronics applications requiring reliable AC to DC conversion. It supports a peak reverse repetitive voltage (Vrrm) of 1000 V and delivers a peak non-repetitive forward surge current (Ifsm) of 400 A, making it suitable for medium power semiconductor circuits.

With a continuous forward current rating (If) of 35 A, this single-phase bridge rectifier operates with a low forward voltage drop of 1.1 V. The device supports operating temperatures ranging from -55°C to 150°C, ensuring durable performance in harsh thermal environments.

The rectifier features a 4-pin through hole mount type, providing secure and stable attachment on printed circuit boards. Its compact form factor of 29 mm by 29 mm with a height of 7.87 mm allows for space-efficient circuit design.

Peak reverse current is maintained at a low 5 microamperes, minimizing leakage losses. It is part of the FB series from Fagor Electronica, manufactured in Thailand, and is suitable for use in industrial, power supply, and electronic control systems that demand reliable rectification solutions.

Rated for 1000 V peak reverse repetitive voltage and 400 A peak surge current. Through hole mounting simplifies PCB assembly and reliability. Wide operating temperature range from -55°C to 150°C. Compact size facilitates integration in various electronic devices.

Low forward voltage drop and minimal leakage currents enhance efficiency. Single-phase configuration with 4 pins for electrical connections.

This Bridge Rectifier complies with no specific certifications or automotive standards but offers robust performance as a discrete semiconductor component. Ideal for use in industrial electronics, power conversion units, and laboratory equipment.
